System part number

KTM 450 SMR

KTM
#oem кодцена

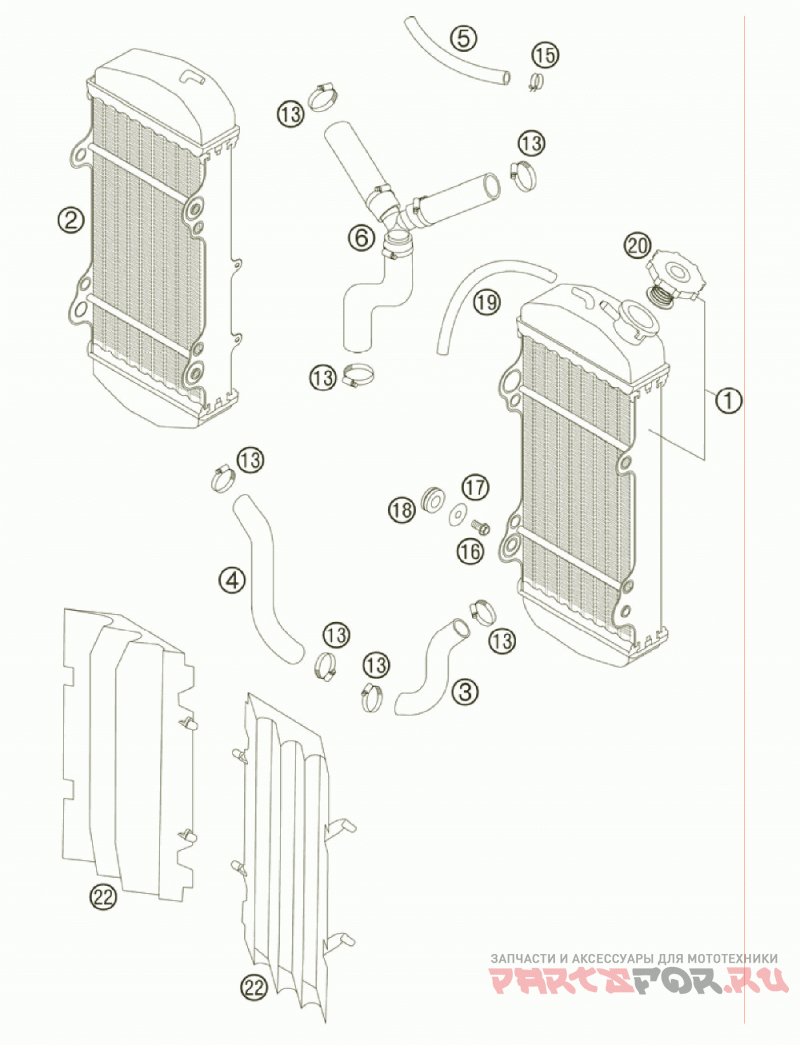

1
59035007300
Radiator L/s 45.407 03
2
59035008300
Radiator R/s 45.408 03
3
59035024100
Radiator Hose L/s Rad.-cyl. 03
4
59035124100
Radiator Hose R/s Rad.-cyl. 03
5
54435024001
Hose Id 7, 5 Per Meter
6
59035125000
Radiator Hose Cyl.head-rad. 03
13
10001020000
Защим 16-27
15
50231005000
Hose Clamp Ydnac 10119 11mm
16
0015060123
Hh Collar Screw M 6x12 Ws=8
17
0021060003
Washer Din9021-a 6, 4
18
41001052000
Rubber Sleeve D=12mm
19
55007016001
Pvc-hose 7x10 Per Meter
20
59035009000
Radiat.cap 20, 3psi (1, 4bar) 03
22
5903504000030
Radiator Protection Black 06
1
59030002500
Ignition Cover 4k3a 2000
2
59030040000
Ignition Cover Gasket 0, 8mm
3
77039004000
Stator 4k3-a 05
4
77039005000
Flywheel 05
5
59039034000
Катушка генератора Kokusan 4k3-А/Б
6
59039031400
Cdi Unit 450 Sx 2005
8
59039090100
Spark Plug Connect. Vd05eg 03
9
59039093100
Spark Plug Ngk Dcpr8e 03
10
59030002050
Support For Wire
11
0084040063
Cyl.head Screw Din0084-m 4x 6a
12
59439032000
Wiring Harness For Cdi Sx 04
13
59039009000
Spacer Bushing 5, 2x7x4, 8 2000
16
59039006000
Ignitioncoil "ig5128"
29
49030090000
Шпонка 9, 8 Х 7 Х 10
30
0015060353
Hh Collar Screw M 6x35 Ws=8
31
0015060303
Hh Collar Screw M 6x30 Sw=8
33
0912050253
Ah Screw Din0912-m 5x25
34
0015050163
Hh Collar Screw M 5x16 Ws=8
35
0014060203
Hh Collar Screw M 6x20 Ws=8
36
0015060163
Hh Collar Screw M 6x16 Ws=8
