Frame, sub frame для мотоциклов KTM 450 SMR (2006)

Москва и регионы России

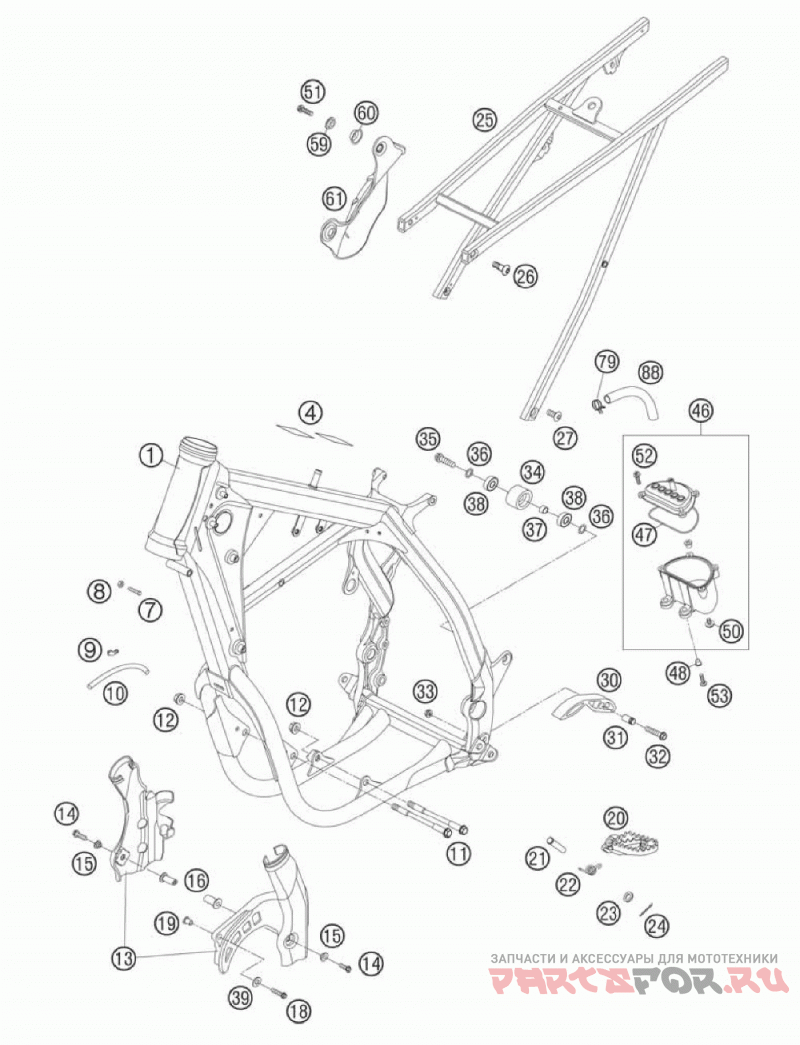

Frame, sub frame

KTM 450 SMR

Frame, sub frame

#

oem код

название

цена

1

Frame Sx Racing "da06" 06

Frame Sx Racing "da06" 06

4

Adh. Foil Transp. 80x80 Mm 04

Adh. Foil Transp. 80x80 Mm 04

7

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

8

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

9

Angle Piece '97

Angle Piece '97

10

Pvc-hose 7x10 Per Meter

Pvc-hose 7x10 Per Meter

11

Enginebrac.screw M10x123 Ws=13

Enginebrac.screw M10x123 Ws=13

12

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

13

Frame Protection Set 05

Frame Protection Set 05

14

Hh Collar Screw M 5x25 Ws=6

Hh Collar Screw M 5x25 Ws=6

15

Bush F. Frame Protection 03

Bush F. Frame Protection 03

16

Blind Plug-in Nut M5 Wn 22a 03

Blind Plug-in Nut M5 Wn 22a 03

18

Hh Collar Screw M 6x35 Ws=8

Hh Collar Screw M 6x35 Ws=8

19

Bushing F. Sprocket Cover Rac.

Bushing F. Sprocket Cover Rac.

20

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

20

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

21

Bolt For Foot Ped 03

Bolt For Foot Ped 03

22

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

23

Washer Din0125-a10, 5

Washer Din0125-a10, 5

24

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

25

Sub Frame Cpl. Sx Rac. "g5" 05

Sub Frame Cpl. Sx Rac. "g5" 05

26

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

27

Sprocket Screw-ah M8x20 Ws=6

Sprocket Screw-ah M8x20 Ws=6

30

Chain Sliding Piece Below '97

Chain Sliding Piece Below '97

31

Bushing 8, 2x10x20

Bushing 8, 2x10x20

32

Hh Collar Screw M 8x35 Ws=10

Hh Collar Screw M 8x35 Ws=10

33

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

34

Chain Roll D=30mm

Chain Roll D=30mm

35

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

36

Стопорная шайба 8 мм

Стопорная шайба 8 мм

37

Bushing 8.2 X 12 X 6

Bushing 8.2 X 12 X 6

38

Grooved Ball Bear. 608 2rs C3

Grooved Ball Bear. 608 2rs C3

39

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

46

Expansion Tank Cpl. 2004

Expansion Tank Cpl. 2004

47

O-ring 80, 00x2, 00 Viton

O-ring 80, 00x2, 00 Viton

48

Spacer Bush. F. Speedomet.bra.

Spacer Bush. F. Speedomet.bra.

50

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

51

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

52

Ejot Pt Screw K60x20 Ws=6

Ejot Pt Screw K60x20 Ws=6

53

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

59

Bush For Spoiler 6x11x16x5 Mm

Bush For Spoiler 6x11x16x5 Mm

60

Bucket

Bucket

61

Heat Shield 04

Heat Shield 04

79

Ydnac-clamp 10173 (16mm) '98

Ydnac-clamp 10173 (16mm) '98

88

Engine Breather Tube 00

Engine Breather Tube 00
