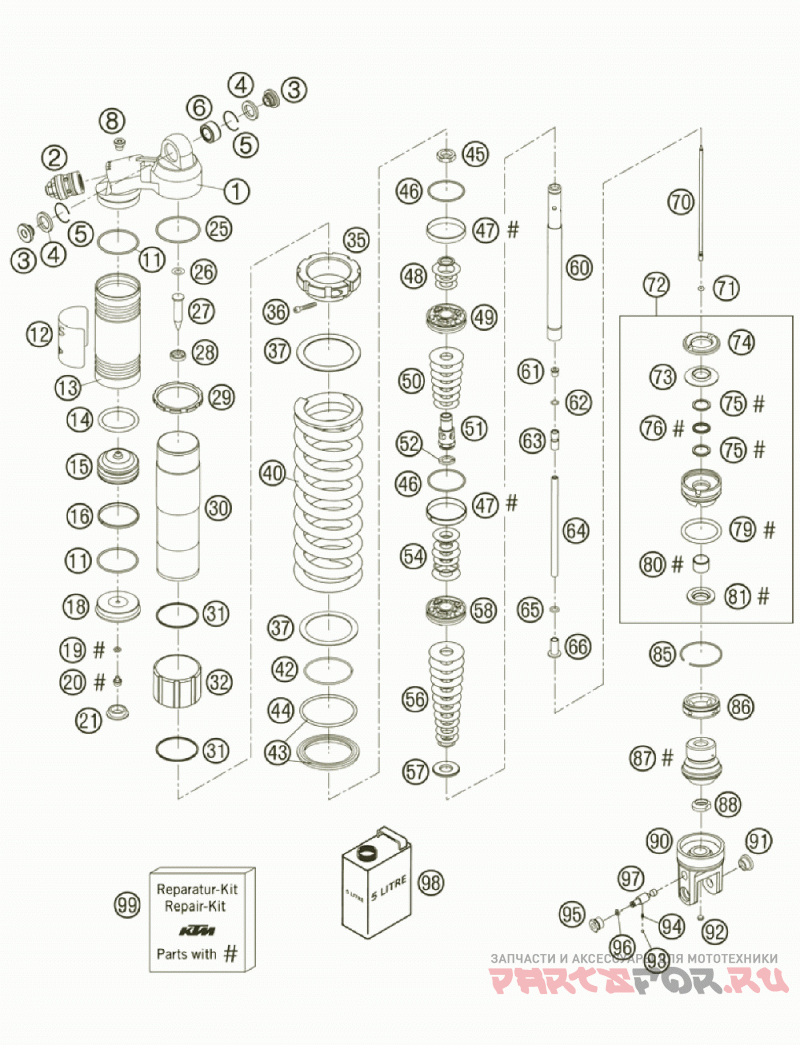

Амортизатор в разборе для мотоциклов KTM 400 EXC-G RACING USA CHASSIS (2006)

Москва и регионы России

Амортизатор в разборе

KTM 400 EXC-G RACING USA CHASSIS

Амортизатор в разборе

#

oem код

название

цена

1

Monoshock Top H=30, 5 M54x1

Monoshock Top H=30, 5 M54x1

2

Mcc-compr.damp.control Cpl. 04

Mcc-compr.damp.control Cpl. 04

3

Adaptor Bush Kgw 12x24

Adaptor Bush Kgw 12x24

4

Oil Seal Kgw D=25

Oil Seal Kgw D=25

5

Washer Kgw D=25

Washer Kgw D=25

6

Bushing Kgw 1525 Hd

Bushing Kgw 1525 Hd

8

Bleed Plug R 1/8

Bleed Plug R 1/8

11

O-ring Nbr 48x2

O-ring Nbr 48x2

12

Wp Caution (pds Ktm) 58x83

Wp Caution (pds Ktm) 58x83

13

Reserv. Screw L=120 D=52 Black

Reserv. Screw L=120 D=52 Black

14

O-ring Viton 41x5

O-ring Viton 41x5

15

Separation Piston D=52, H=32

Separation Piston D=52, H=32

16

Piston Ring 3, 9x1, 5x156

Piston Ring 3, 9x1, 5x156

18

Reservoir Cap D=58

Reservoir Cap D=58

19

O-ring Nbr 5, 28x1, 78

O-ring Nbr 5, 28x1, 78

20

Screw Plug M5x6

Screw Plug M5x6

21

Rubber Cap "do Not Open"

Rubber Cap "do Not Open"

25

O-ring 52x2

O-ring 52x2

26

Washer 16x8, 2x0, 6

Washer 16x8, 2x0, 6

27

Needle D=11,4 D=6, L=57

Needle D=11,4 D=6, L=57

28

Screw Cap M20x1 D=11, 5 H=5

Screw Cap M20x1 D=11, 5 H=5

29

Гровер

Гровер

30

Tube Pds L=198

Tube Pds L=198

31

Circlip 50x1, 5

Circlip 50x1, 5

32

Spring Guidance L=40

Spring Guidance L=40

35

Spring Retainer M56x1

Spring Retainer M56x1

36

Ah Screw Din0912-m 5x30

Ah Screw Din0912-m 5x30

37

Interm.ring Screw Spring Ret.

Interm.ring Screw Spring Ret.

40

Spring250 80n/mm D12, 5 (62)ora

Spring250 80n/mm D12, 5 (62)ora

42

Circlip 58, 2x2

Circlip 58, 2x2

43

Spring Ret. D=80 W. O-ring 05

Spring Ret. D=80 W. O-ring 05

44

O-ring Viton 66, 27x3, 53

O-ring Viton 66, 27x3, 53

45

Piston Rod Nut M16x1

Piston Rod Nut M16x1

46

O-ring Viton 44, 17x1, 78

O-ring Viton 44, 17x1, 78

47

Piston Ring 50-8

Piston Ring 50-8

49

Piston 6+6x7/4, 5 Vb 1, 0

Piston 6+6x7/4, 5 Vb 1, 0

51

Holder D=16 M16x1 L=48

Holder D=16 M16x1 L=48

52

Backplate D=23 D=16 H3

Backplate D=23 D=16 H3

57

Rebound Disc D=34, H=2

Rebound Disc D=34, H=2

58

Piston 6+6x3, 5/4, 5

Piston 6+6x3, 5/4, 5

60

Piston Rod D=18 L=146 M16x1

Piston Rod D=18 L=146 M16x1

61

Bush M8x1

Bush M8x1

62

O-ring Viton 7x1, 5

O-ring Viton 7x1, 5

63

Needle Seat M8x1 D=5, 5 05

Needle Seat M8x1 D=5, 5 05

64

Tube M8x1 L=145, 4

Tube M8x1 L=145, 4

65

O-ring Nbr 8x2

O-ring Nbr 8x2

66

Tube Adaptor M8x1 L=23

Tube Adaptor M8x1 L=23

70

Needle L=169

Needle L=169

71

O-ring Viton 2, 2x1, 6

O-ring Viton 2, 2x1, 6

72

Adaptor D50 H29 Cpl.

Adaptor D50 H29 Cpl.

73

Steel Disc 18x, 5x43, 7x6

Steel Disc 18x, 5x43, 7x6

74

Rebound Rubber

Rebound Rubber

75

Backupring 22, 55x1, 5

Backupring 22, 55x1, 5

76

Quad Ring 18x2, 62

Quad Ring 18x2, 62

79

O-ring 41x5

O-ring 41x5

80

Du-bush 18x20x12

Du-bush 18x20x12

81

Dust Seal 1835

Dust Seal 1835

85

Circlip 53x1, 75

Circlip 53x1, 75

86

Cover D=50

Cover D=50

87

Bump Rubber D58 D17 H59 Sxs 05

Bump Rubber D58 D17 H59 Sxs 05

88

Nut M18x1

Nut M18x1

90

Fork Part L=55, 5 B=32, 5 D=12

Fork Part L=55, 5 B=32, 5 D=12

91

Threaded Bush M12 Pds

Threaded Bush M12 Pds

92

Rubber Plug D=8

Rubber Plug D=8

93

Steel Ball D=3mm

Steel Ball D=3mm

94

Spring D=2, 9 L=7, 9

Spring D=2, 9 L=7, 9

95

Reservoir Cap M14x1

Reservoir Cap M14x1

96

O-ring Nbr 4x1, 5

O-ring Nbr 4x1, 5

97

Adjusting Screw Rebound Travel

Adjusting Screw Rebound Travel

98

Shock Absorber Fluid 5 Lt '03

Shock Absorber Fluid 5 Lt '03
