Амортизатор для мотоциклов KTM 300 XC CHASSIS (2006)

Москва и регионы России

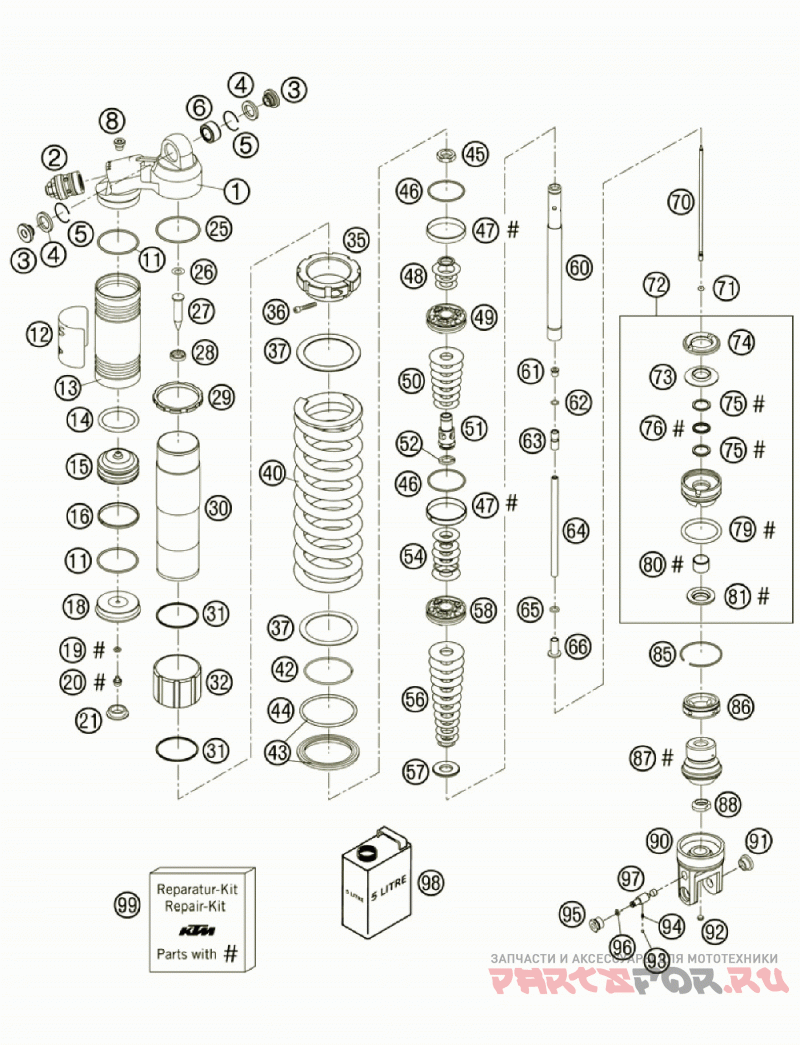

Амортизатор

KTM 300 XC CHASSIS

Амортизатор

#

oem код

название

цена

1

Monoshock Top H=30, 5 M54x1

Monoshock Top H=30, 5 M54x1

2

Dcc-compr.damp.control Cpl. 04

Dcc-compr.damp.control Cpl. 04

3

Adaptor Bush Kgw 12x24

Adaptor Bush Kgw 12x24

4

Oil Seal Kgw D=25

Oil Seal Kgw D=25

5

Washer Kgw D=25

Washer Kgw D=25

6

Bushing Kgw 1525 Hd

Bushing Kgw 1525 Hd

8

Bleed Plug R 1/8

Bleed Plug R 1/8

11

O-ring Nbr 48x2

O-ring Nbr 48x2

12

Wp Caution (pds Ktm) 58x83

Wp Caution (pds Ktm) 58x83

13

Reserv. Screw L=120 D=52 Black

Reserv. Screw L=120 D=52 Black

14

O-ring Viton 41x5

O-ring Viton 41x5

15

Separation Piston D=52, H=32

Separation Piston D=52, H=32

16

Piston Ring 3, 9x1, 5x156

Piston Ring 3, 9x1, 5x156

18

Reservoir Cap D=58

Reservoir Cap D=58

19

O-ring Nbr 5, 28x1, 78

O-ring Nbr 5, 28x1, 78

20

Screw Plug M5x6

Screw Plug M5x6

21

Rubber Cap "do Not Open"

Rubber Cap "do Not Open"

25

O-ring 52x2

O-ring 52x2

26

Washer 16x8, 2x0, 6

Washer 16x8, 2x0, 6

27

Needle D=11,4 D=6, L=57

Needle D=11,4 D=6, L=57

28

Screw Cap M20x1 D=11, 5 H=5

Screw Cap M20x1 D=11, 5 H=5

29

Гровер

Гровер

30

Tube Pds L=198

Tube Pds L=198

31

Circlip 50x1, 5

Circlip 50x1, 5

32

Spring Guidance L=40

Spring Guidance L=40

35

Spring Retainer M56x1

Spring Retainer M56x1

36

Ah Screw Din0912-m 5x30

Ah Screw Din0912-m 5x30

37

Interm.ring Screw Spring Ret.

Interm.ring Screw Spring Ret.

40

Spring250 76n/mm D12, 5 (62)ora

Spring250 76n/mm D12, 5 (62)ora

42

Circlip 58, 2x2

Circlip 58, 2x2

43

Spring Ret. D=80 W. O-ring 05

Spring Ret. D=80 W. O-ring 05

44

O-ring Viton 66, 27x3, 53

O-ring Viton 66, 27x3, 53

45

Piston Rod Nut M16x1

Piston Rod Nut M16x1

46

O-ring Viton 44, 17x1, 78

O-ring Viton 44, 17x1, 78

47

Piston Ring 50-8

Piston Ring 50-8

48

Shim 16x30x0, 20

Shim 16x30x0, 20

48

Backplate 16x21x0, 30

Backplate 16x21x0, 30

48

Shim 16x32x0, 20

Shim 16x32x0, 20

48

Shim 16x34x0, 20

Shim 16x34x0, 20

48

Shim 16x36x0, 20

Shim 16x36x0, 20

48

Washer 16x21x1

Washer 16x21x1

49

Piston 6+6x3, 5/4, 5

Piston 6+6x3, 5/4, 5

51

Holder D=16 M16x1 L=48

Holder D=16 M16x1 L=48

52

Backplate D=23 D=16 H3

Backplate D=23 D=16 H3

57

Rebound Disc D=34, H=8

Rebound Disc D=34, H=8

58

Piston 6+6x7/4, 5 Vb 1, 0

Piston 6+6x7/4, 5 Vb 1, 0

60

Piston Rod D=18 L=146 M16x1

Piston Rod D=18 L=146 M16x1

61

Bush M8x1

Bush M8x1

62

O-ring Viton 7x1, 5

O-ring Viton 7x1, 5

63

Needle Seat M8x1 D=5, 5 05

Needle Seat M8x1 D=5, 5 05

64

Tube M8x1 L=145, 4

Tube M8x1 L=145, 4

65

O-ring Nbr 8x2

O-ring Nbr 8x2

66

Tube Adaptor M8x1 L=23

Tube Adaptor M8x1 L=23

70

Needle L=169

Needle L=169

71

O-ring Viton 2, 2x1, 6

O-ring Viton 2, 2x1, 6

72

Adaptor D50 H29 Cpl.

Adaptor D50 H29 Cpl.

73

Steel Disc 18x, 5x43, 7x6

Steel Disc 18x, 5x43, 7x6

74

Rebound Rubber

Rebound Rubber

75

Backupring 22, 55x1, 5

Backupring 22, 55x1, 5

76

Quad Ring 18x2, 62

Quad Ring 18x2, 62

79

O-ring 41x5

O-ring 41x5

80

Du-bush 18x20x12

Du-bush 18x20x12

81

Dust Seal 1835

Dust Seal 1835

85

Circlip 53x1, 75

Circlip 53x1, 75

86

Cover D=50

Cover D=50

87

Bump Rubber D58 D17 H59 Sxs 05

Bump Rubber D58 D17 H59 Sxs 05

88

Nut M18x1

Nut M18x1

90

Fork Part L=55, 5 B=32, 5 D=12

Fork Part L=55, 5 B=32, 5 D=12

91

Threaded Bush M12 Pds

Threaded Bush M12 Pds

92

Rubber Plug D=8

Rubber Plug D=8

93

Steel Ball D=3mm

Steel Ball D=3mm

94

Spring D=2, 9 L=7, 9

Spring D=2, 9 L=7, 9

95

Reservoir Cap M14x1

Reservoir Cap M14x1

96

O-ring Nbr 4x1, 5

O-ring Nbr 4x1, 5

97

Adjusting Screw Rebound Travel

Adjusting Screw Rebound Travel

98

Shock Absorber Fluid 5 Lt '03

Shock Absorber Fluid 5 Lt '03
