Frame · 950/2005 для мотоциклов KTM 950 SUPERMOTO (2005)

Москва и регионы России

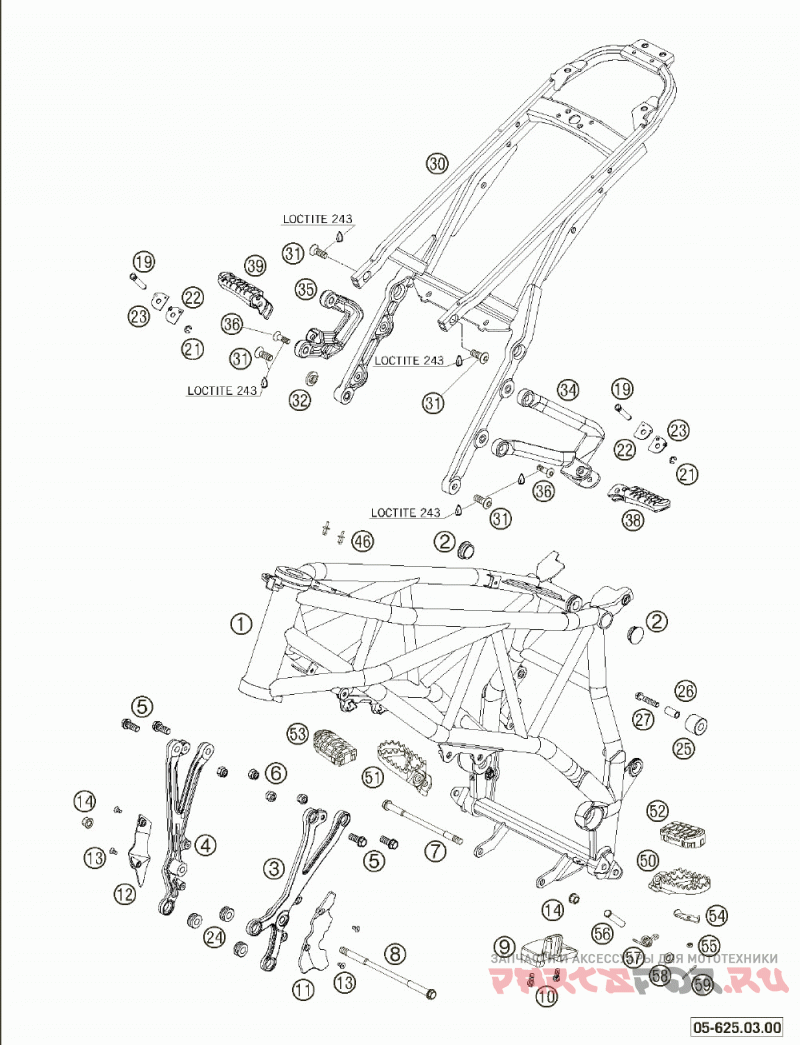

Frame · 950/2005

KTM 950 SUPERMOTO

Frame · 950/2005

#

oem код

название

цена

1

Frame "fc05" 950sm Silver 05

Frame "fc05" 950sm Silver 05

2

Plug Sfl28 05

Plug Sfl28 05

3

Engine Support Left 05

Engine Support Left 05

4

Engine Support Right 05

Engine Support Right 05

5

Hh Collar Screw M10x24 Ws=13

Hh Collar Screw M10x24 Ws=13

6

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

7

Engine Brac. Screw M10x172 03

Engine Brac. Screw M10x172 03

8

Engine Brac. Screw M10x206 03

Engine Brac. Screw M10x206 03

9

Chain Sliding Block 05

Chain Sliding Block 05

10

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

11

Cover Engine Support Left 05

Cover Engine Support Left 05

12

Cover Engine Support Right 05

Cover Engine Support Right 05

13

Flat H.scew Din7991-m5x10 10.9

Flat H.scew Din7991-m5x10 10.9

14

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

19

Bolt For Footrest Rear 03

Bolt For Footrest Rear 03

21

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

22

Engage Panel Footrest L/s 03

Engage Panel Footrest L/s 03

23

Engage Panel Footrest R/s 03

Engage Panel Footrest R/s 03

24

Rubber Sleeve 03

Rubber Sleeve 03

25

Chain Roll 12x29x22, 5 '98

Chain Roll 12x29x22, 5 '98

26

Bush Chain Roll 8x12x23 '98

Bush Chain Roll 8x12x23 '98

27

Hh Collar Screw M 8x40 Ws=10

Hh Collar Screw M 8x40 Ws=10

30

Sub Frame 07

Sub Frame 07

31

Fl.head Screw M10x1, 25 L=27 03

Fl.head Screw M10x1, 25 L=27 03

32

Collar Bushing 10x15x25x4 03

Collar Bushing 10x15x25x4 03

34

Footrest Bracket Rear Left 07

Footrest Bracket Rear Left 07

35

Footrest Bracket Rear Right 07

Footrest Bracket Rear Right 07

36

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

38

Footrest Cpl. L/s Rear 03

Footrest Cpl. L/s Rear 03

39

Footrest Cpl. R/s Rear 03

Footrest Cpl. R/s Rear 03

46

Plastic Cap For M6 03

Plastic Cap For M6 03

50

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

51

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

52

Footrest Rubber Front L/s 03

Footrest Rubber Front L/s 03

53

Footrest Rubber Front R/s 03

Footrest Rubber Front R/s 03

54

Closing Panel Front L/s R/s 03

Closing Panel Front L/s R/s 03

55

Самоконтрящаяся Гайка 0985-м DIN 5

Самоконтрящаяся Гайка 0985-м DIN 5

56

Bolt For Foot Ped 03

Bolt For Foot Ped 03

57

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

58

Washer Din0125-a10, 5

Washer Din0125-a10, 5

59

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel
