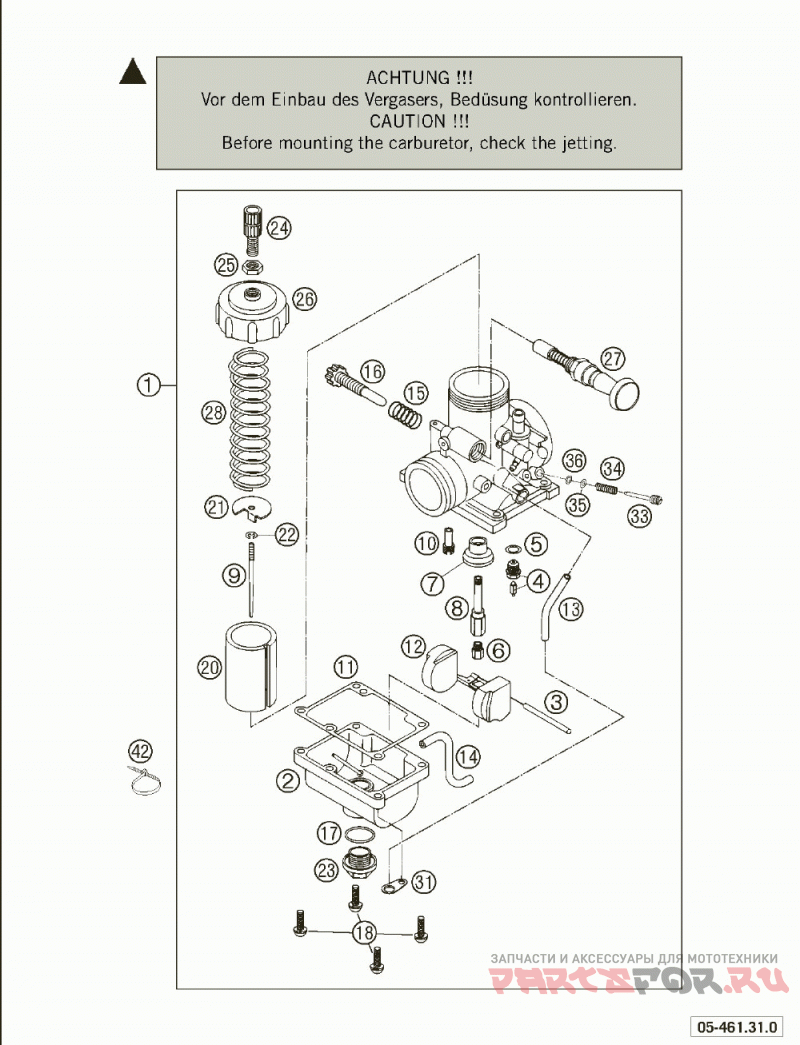

Carburetor mikuni vm24 65 sx / 2005

KTM 65 SX

KTM
#oem кодцена
1
46131001000
Carburetor Mikuni Vm24-505 04
2
46031011000
Float Body 5-1 Vm24
3
45031008000
Pin 2, 5x27
4
46131020000
Needle Valve Cpl. Vm24
5
46031018000
Gasket Needle Valve 9, 1x12x0, 5
6
45031023200
Main Jet 200
7
46031074000
Buffle
8
46131021000
Needle Jet 864 0-0
9
45031034200
Jet Needle Mikuni 5i14
10
45031007025
Idling Jet 25 Mikuni
11
45031010100
Gasket Float Bowl
12
46031009000
Float Vm24
13
52031137001
Pvc-hose 3x5mm
15
45031015100
Spring Mikuni
16
46031019000
Throttle Valve Screw M6x30
17
46031043000
O-ring 17, 5x1, 4
18
45031014016
Lintil Head Screw M4x16 (set)
20
46131035000
Throttle Valve 1.5
21
46031032000
Holding Washer
22
45031045000
Пружина
23
46031014000
Plug Screw M16 Ws=17
24
57031525000
Adjustment Screw M6x0, 75
25
45031026000
Hh-nut M6x0, 75
26
46031027000
Carburetor Cover Vm24
27
46031048044
Cold Starter Knob Cpl. Vm24
28
46031030000
Throttle Valve Spring Vm24
31
46031081000
Bracket For Breather Hose
33
46131017000
Adjusting Screw Mikuni
34
45031015000
Пружина
35
46131032000
Washer Adjusting Screw
36
46131033000
Кольцо
