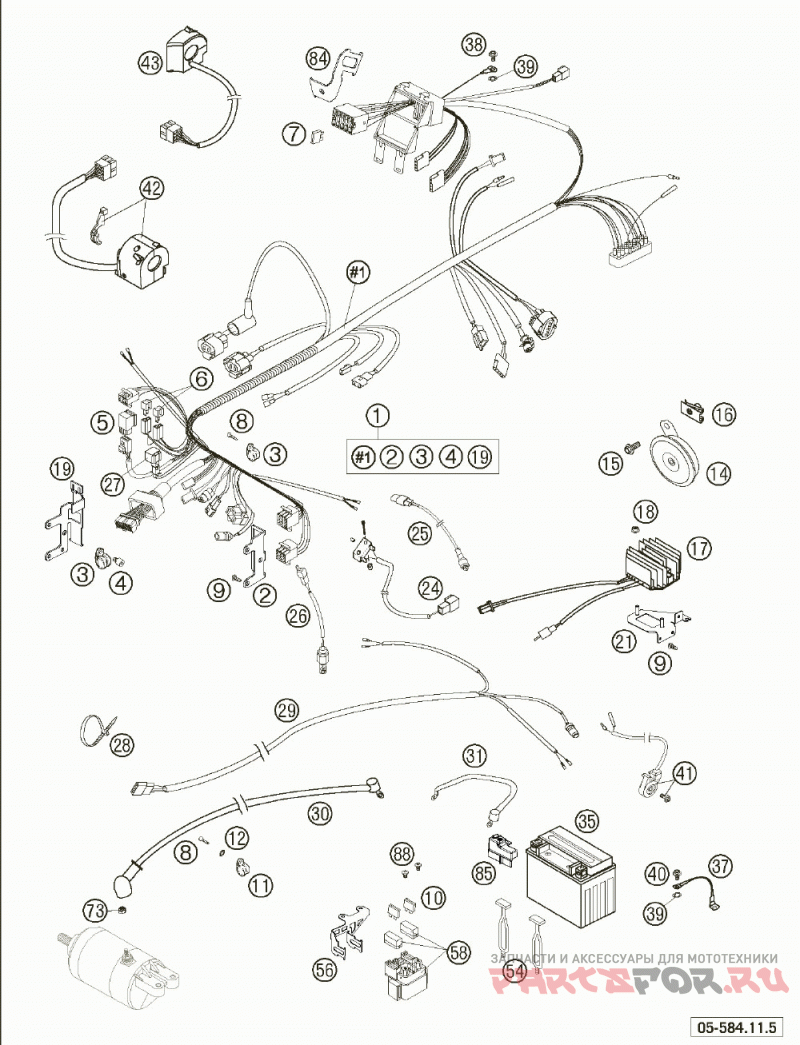

Wiring harness 640/2005

KTM 640 LC4 SUPERMOTO

KTM
#oem кодцена
2
58611083000
Support Bracket L/s 05
3
49007439000
Clamp Rsgu 15/12
4
0912050083
Ah Screw Din 912 M 5x8
5
58411057000
Starter Relay '96
6
58411096100
Diode S3h-15 97
8
0981480133
Sheet Met.scr.din7981- 4, 8x13
9
0016050121
Screw For Plastic 50x12
11
45001070000
Brake Cable Clamp Rsgu 9/12
12
0797050003
Tooth Lock Wash. Din6797-j 5, 3
14
50311060100
Dc Horn L.e.b. 03
15
0014060153
Hh Collar Screw M 6x15 Ws=8
16
54603048100
Range Change Metal Nut M6
17
58411034100
Volt.regulator-rectifier 12v
18
56509064100
Self Locking Nut M6 10.9
19
58611183000
Support Bracket R/s 05
21
58611055200
Bracket Regulator 06
24
58411050000
Brake Light Switch Front Sm 03
25
58411049100
Clutch Switch 03
26
50311051100
Brake Light Switch Rear '98
27
44611207200
Flasher Unit 97
29
58611076000
Wiring Harness Rear 05
30
58611059000
Startercable L=810mm 05
31
58611059050
Battery Cable L=140mm 05
35
58411053100
Battery 12v 8, 6ah 03
37
58611097000
Ground Cable L=80mm 05
38
0015060103
Hh Collar Screw M 6x10 Ws=8
39
58411098100
Contact Washer M6 Vsv-k6
40
0015060123
Hh Collar Screw M 6x12 Ws=8
41
58411045000
Side Stand Switch Cpl. '97
42
58411070100
Head Light Switch Ad Lc4 02
43
58411074200
Start-stop Switch Ad 03
54
50303018000
Rubber L=145mm
56
58611058050
Bracket Starter Relay 05
58
58211058000
Starter Relay 12v '99
73
0985060003
Self Lock. Nut Din0985-m 6
84
58611087050
Bracket Fuse Box 05
85
58611059060
Terminal Post Cover 05
88
0902060083
Ah Oval Screw Iso 7380 M 6x8
