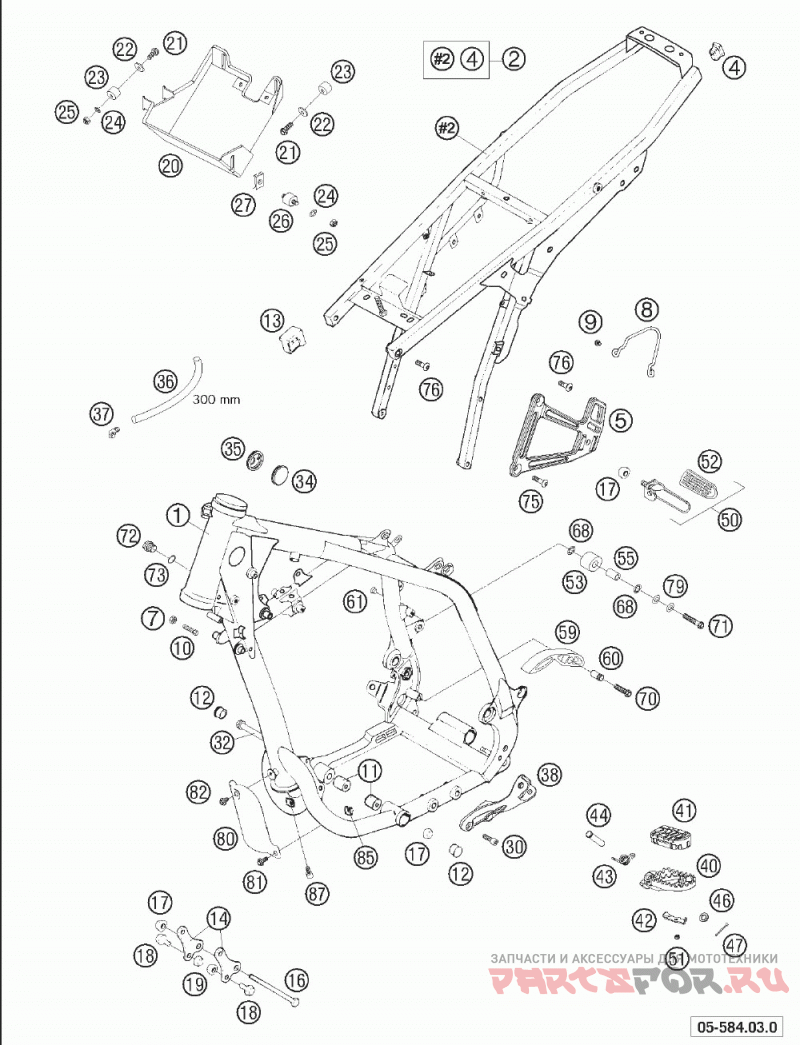

Frame · sub frame 640/2005

KTM 640 LC4 ENDURO

Frame · sub frame 640/2005

#

oem код

название

цена

2

Subframe Cpl. Stahl Lc4 97

Subframe Cpl. Stahl Lc4 97

2

Subframe Cpl. Steel Silver 00

Subframe Cpl. Steel Silver 00

4

Plug 12 X 17 Mm

Plug 12 X 17 Mm

5

Footrestbrack. Rear L/s 04

Footrestbrack. Rear L/s 04

5

Footrestbr. Rear R. Antra 2000

Footrestbr. Rear R. Antra 2000

5

Footrestbrack. Rear R/s Silver

Footrestbrack. Rear R/s Silver

7

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

8

Thermal Protection Bow 04

Thermal Protection Bow 04

9

Oval Head Scr. Din7985-m 5x10

Oval Head Scr. Din7985-m 5x10

10

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

11

Spacer Roller 10, 3x20x22

Spacer Roller 10, 3x20x22

12

Pvc Cap D=22mm

Pvc Cap D=22mm

13

Tank Support '93

Tank Support '93

14

Engine Support Agw '94

Engine Support Agw '94

16

Engine Brac.screw M10x110 Ws13

Engine Brac.screw M10x110 Ws13

17

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

18

Hh Collar Screw M 8x16 Ws=13

Hh Collar Screw M 8x16 Ws=13

19

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

20

Battery Box 03

Battery Box 03

21

Hh Collar Screw M 6x10 Ws=8

Hh Collar Screw M 6x10 Ws=8

22

Washer Din9021-a 6, 4

Washer Din9021-a 6, 4

23

Rubber Grommet 20x15-m6x10 (1)

Rubber Grommet 20x15-m6x10 (1)

24

Tooth Lock Wash. Din6797-a 6, 4

Tooth Lock Wash. Din6797-a 6, 4

25

Hexagon Nut Din0934-m 6

Hexagon Nut Din0934-m 6

26

Rubber Grommet 20x15-m6x8-(2)

Rubber Grommet 20x15-m6x8-(2)

27

Range Change Metal Nut M6

Range Change Metal Nut M6

30

Ah Screw Din6912-m10x25, 10.9, L

Ah Screw Din6912-m10x25, 10.9, L

32

Engine Brac.screw M10x160 Ws13

Engine Brac.screw M10x160 Ws13

34

Plug 37mm

Plug 37mm

35

Plug 37mm Perforated 04

Plug 37mm Perforated 04

37

Angle Piece '97

Angle Piece '97

38

Footrest Bracket Left Alu 05

Footrest Bracket Left Alu 05

40

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

40

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

41

Footrest Rubber Front L/s 03

Footrest Rubber Front L/s 03

41

Footrest Rubber Front R/s 03

Footrest Rubber Front R/s 03

42

Closing Panel Front L/s R/s 03

Closing Panel Front L/s R/s 03

43

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

44

Bolt For Foot Ped 03

Bolt For Foot Ped 03

46

Washer Din0125-a10, 5

Washer Din0125-a10, 5

47

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

50

Footrest Rear L/s Cpl. '95

Footrest Rear L/s Cpl. '95

50

Foot Rest Rear R/s Cpl.'95

Foot Rest Rear R/s Cpl.'95

51

Самоконтрящаяся Гайка 0985-м DIN 5

Самоконтрящаяся Гайка 0985-м DIN 5

52

Footrest Rubber L/s&r/s Duke95

Footrest Rubber L/s&r/s Duke95

53

Chain Roll 12x29x22, 5 '98

Chain Roll 12x29x22, 5 '98

55

Bush Chain Roll 8x12x23 '98

Bush Chain Roll 8x12x23 '98

59

Chain Sliding Piece Below '97

Chain Sliding Piece Below '97

60

Bushing 8, 2x10x20

Bushing 8, 2x10x20

61

Plastic Cap Sfl10

Plastic Cap Sfl10

68

Стопорная шайба 8 мм

Стопорная шайба 8 мм

70

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

71

Hh Collar Screw M 8x45 Ws=10

Hh Collar Screw M 8x45 Ws=10

72

Plug Din0910-m16x1, 5

Plug Din0910-m16x1, 5

73

Cu-seal Ring 16x22x2

Cu-seal Ring 16x22x2

75

Ah Screw 8x29 Fl.head 04

Ah Screw 8x29 Fl.head 04

76

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

79

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

80

Cover Oil Filter '94

Cover Oil Filter '94

81

Hh Collar Screw M 6x15 Ws=8

Hh Collar Screw M 6x15 Ws=8

82

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

85

Snap-nut Holder M6 Kp142

Snap-nut Holder M6 Kp142

87

Ah Screw Din7984-m 6x10

Ah Screw Din7984-m 6x10
