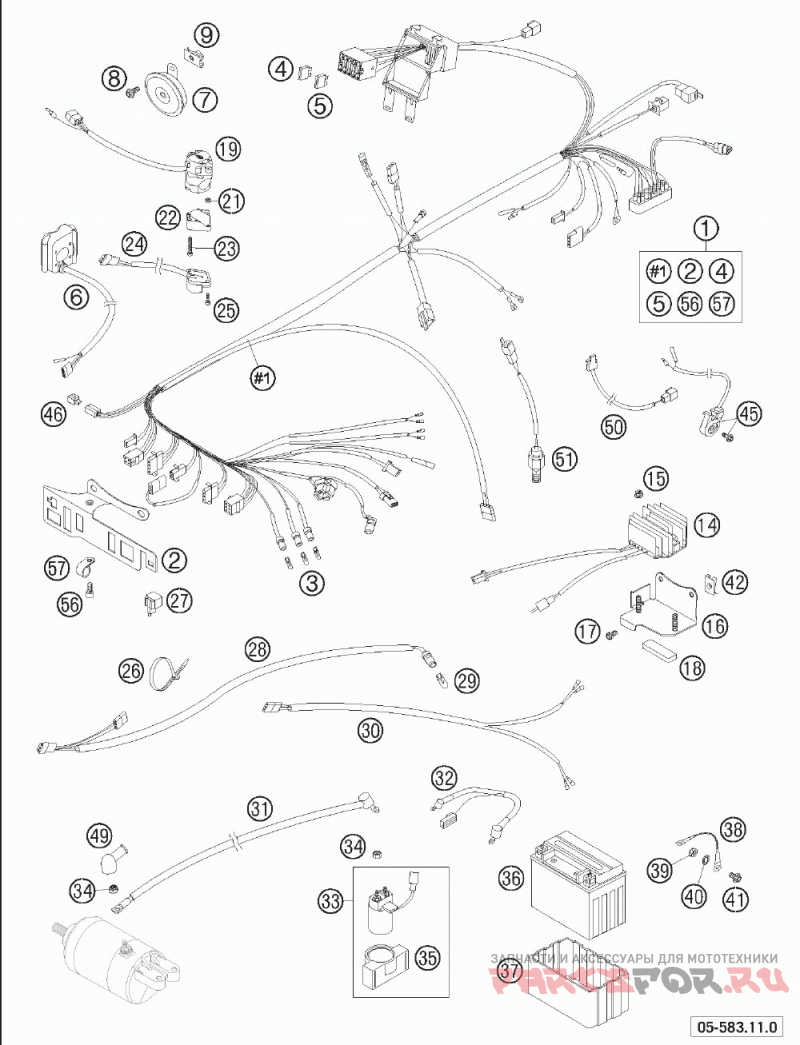

Wiring harness 625/2005

KTM 625 SXC

KTM
#oem кодцена
2
59011083000
Support Bracket Black 2001
3
49111425200
Bulb 12v 2, 3w (w2x4, 6d)
6
59011074200
Start-stop Tip Switch 2001
7
50311060100
Dc Horn L.e.b. 03
8
0014060153
Hh Collar Screw M 6x15 Ws=8
9
54603048100
Range Change Metal Nut M6
14
58411034100
Volt.regulator-rectifier 12v
15
56509064100
Self Locking Nut M6 10.9
16
58411055200
Battery Bracket 03
17
0015060103
Hh Collar Screw M 6x10 Ws=8
18
58414040051
Metamoll For Rearlight 99
19
50311070100
H.light Switch Cev Egs Aus.'98
21
0934040003
Hexagon Nut Din0934-m 4
22
13011070060
Adapter For Flasher Switch '98
23
0084040223
Cyl.head Screw Din0084-m 4x22a
24
50311029000
Flasher Switch Cev '98
25
0985040163
Flat Head Screw Din7985-m 4x16
27
44611207200
Flasher Unit 97
28
58411047000
Wiring H. Number P. Light 2001
29
49011435100
Bulb 12v 5w (w2, 1x9, 5d) Phil.
30
59011081000
Flash.wiringharness Rear 2001
31
58411059100
Startercable 700 Mm '97
32
58411059350
Battery Cable L= 200 Mm 03
33
58411058000
Starter Relay With Hold.rubber
34
0985060003
Self Lock. Nut Din0985-m 6
35
58411058050
Hold. Rubber For Startrelay
36
58411053100
Battery 12v 8, 6ah 03
37
58411053050
Battery Cover 96
38
58411097100
Ground Cable D=6mm L=140mm '97
40
58411098100
Contact Washer M6 Vsv-k6
45
58411045000
Side Stand Switch Cpl. '97
46
58411096100
Diode S3h-15 97
49
58440099000
Protection Cap F. Starter Eng.
50
50311050100
Brake Light Switch Front 2002
51
50311051100
Brake Light Switch Rear '98
56
0912050083
Ah Screw Din 912 M 5x8
57
57013070100
Pvc-clamp 7, 9 Mm Heyco 3355
