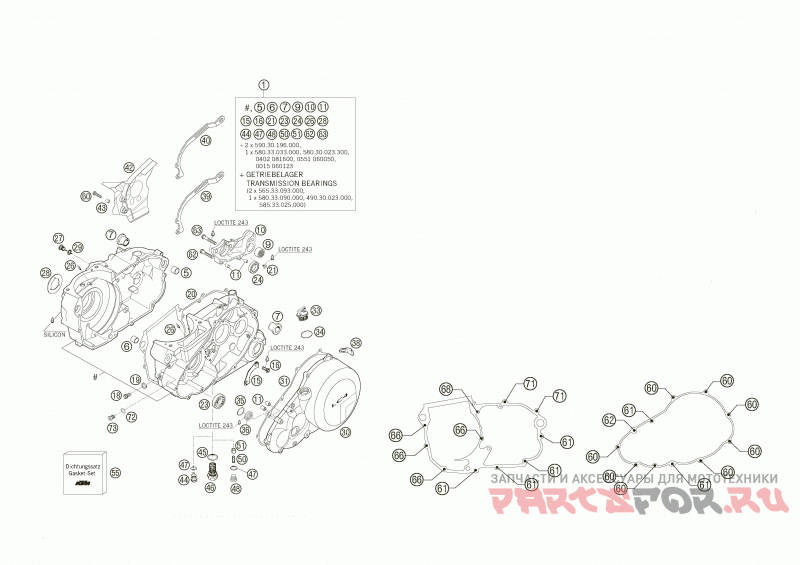

Engine case 625/640/2005

KTM 625 SMC

KTM
#oem кодцена
1
5843000034423
Engine Case Cpl.w.bear. Lc4 05
5
50130027000
Dowel 19 X15, 1x12
6
51030026100
Dowel 17 X 13 X 12
7
50130010000
Crank Case Bush
9
58033097000
Needle Bearing Hk 2216
10
58330011000
Shift Mechanism Support Lc4'94
11
49030090000
Шпонка 9, 8 Х 7 Х 10
15
56530017000
Retaining Plate
16
0991060166
Fl.head Scr.din7991-m6x16 10.9
18
0015080163
Hh Collar Screw M 8x16 Ws=10
19
0603082121
Seal Ring Cu Din7603- 8x12x1
20
58530039400
Engine Case Sil C4302 0, 5
21
0985050103
Oval Head Scr. Din7985-m 5x10
23
0412174012
Cylind.roll.nj 203 Ecp/c3 2001
24
0625618050
Ball Bearing 61805 C3
26
60030064070
Oil Jet 70 M6x0, 75 Ws8 03
28
58440091000
Stop Disk 33 X 58 X 1, 5
30
5833010124423
Clutch Cover Cpl. Grey 03
31
58530025000
Clutch Cover Gasket 2001
33
58030020100
Пробка M24x3
34
0770191015
Кольцо 19,00x3,00
35
61030019050
Стопор
36
59030019000
Стекло - уровень масла
38
58333041000
Bump Rubber
39
58430047200
Cha.dampersheet 15/16t 92mm 03
40
58730047100
Chain Dampersheet 17t 92mm 03
42
58430060100
Sprocket Cover 05
43
54613038150
Bushing 6, 5x8x11
44
58030021000
Пробка сливная с магнитом M12x1,5
45
58038017100
Cu-seal Ring Din7603-22x27x2
46
58038019100
Oil Drain Plug M22x1, 5
47
58038022000
Кольцо 12x18x1, 5
48
0908120153
Plug Din0908-m12x1, 5
50
58038023300
Pressure Spring L=25mm D=1mm
51
58038028000
Valve Piston D=10mm
55
58430099200
Gasket Set Lc4 2003
60
0015060253
Hh Collar Screw M 6x25 Ws=8
61
0015060303
Hh Collar Screw M 6x30 Sw=8
62
0015060353
Hh Collar Screw M 6x35 Ws=8
63
0015060403
Hh Collar Screw M 6x40 Ws=8
66
0015060553
Hh Collar Screw M 6x55 Ws=8
68
0015060653
Hh Collar Screw M 6x65 Ws=8
72
0603082131
Copper Gask.din7603- 8, 2x13x1
73
0908080013
Plug M8x1 Din 908
63
0025060406
Hh Collar Screw M6x40 Tx30
