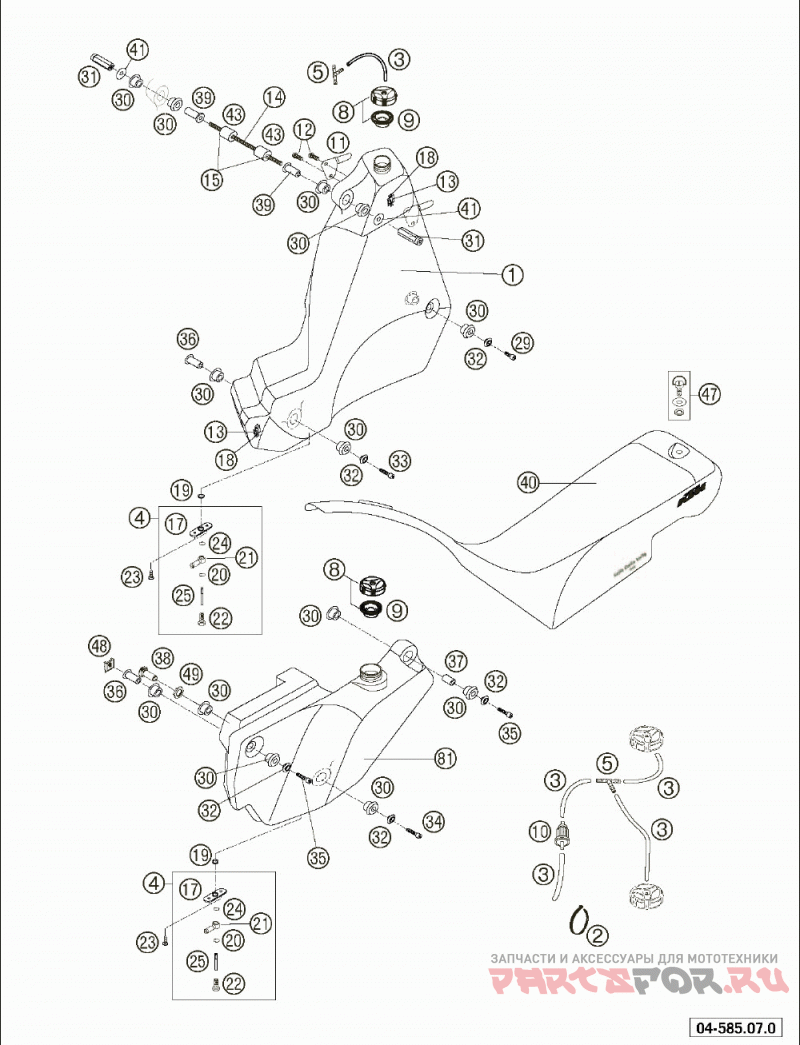

Fuel tanks · seat 450-660/2005

KTM 450 RALLYE

KTM
#oem кодцена
1
5850701310004
Fuel Tank Fr. L/s Rallye 2004
1
5850711310004
Fuel Tank Fr. R/s Rallye 2004
2
44011076100
% Cable Tie 100/2, 5mm Black
4
58507008000
Fuel Connection Cpl. 01
5
59031083000
T-joint Breather Hose
8
49007008044
Filler Cap Cpl. Small
9
59007009000
Gasket For Filler Cap High
10
58312099052
Fuel Filter Element
11
58554013051
Seat Holding Sheet L/s 01
11
58554013050
Seat Holding Sheet R/s 01
12
0902060083
Ah Oval Screw Iso 7380 M 6x8
13
45007040050
Quick Release Latchplate
14
58512067000
Threadpole M8 L=226 Mm
17
58507008050
Fuel Flange Sheet 01
18
0981350133
Sheet Met.scr.din7981-3, 5x13
19
0770120020
O-ring 12, 00x2, 00 Nbr 70
20
42013226000
Cu-seal Ring Din7603-10x16x1
21
49138493000
Ring Component 10/6mm
23
0982480163
Sheet Met.scr.din7982 4, 8x16
24
0603101420
Copper Gasket 10, 2x14x2 Mm 01
25
58507008010
Fuel Flange-strainer 03
29
0912080203
Ah Screw Din912 M8x20
30
56401040000
Резиновая Втулка
31
58507005000
Tank Nut M8 01
32
58512062000
Bushing Sleeve Out 2001
33
0912080503
Ah Screw Din912 M8x50
34
0912080303
Ah Screw Din0912-m 8x30
35
0912080403
Ah Screw Din912 M8x40
36
58512063000
Bushing Sleeve In.34mm 2001
37
58512069000
Bushing Sleeve In. 25mm 2001
38
58512068100
Fixing Screw Tank Rear
39
58512064000
Bushing Sleeve In. 40mm 2001
41
0021080003
Washer Din9021-a 8, 4
43
58512065000
Tankdistance 36 Mm Rallye 2001
47
58307040551
Quick Release Cpl. '96
48
54603048000
Range Change Metal Nut M8
49
60512063050
Nut F.tank Braket Rear
81
5851209530004
Side Tank L/s Orange 2004
81
5851209630004
Side Tank R/s Orange 2004
