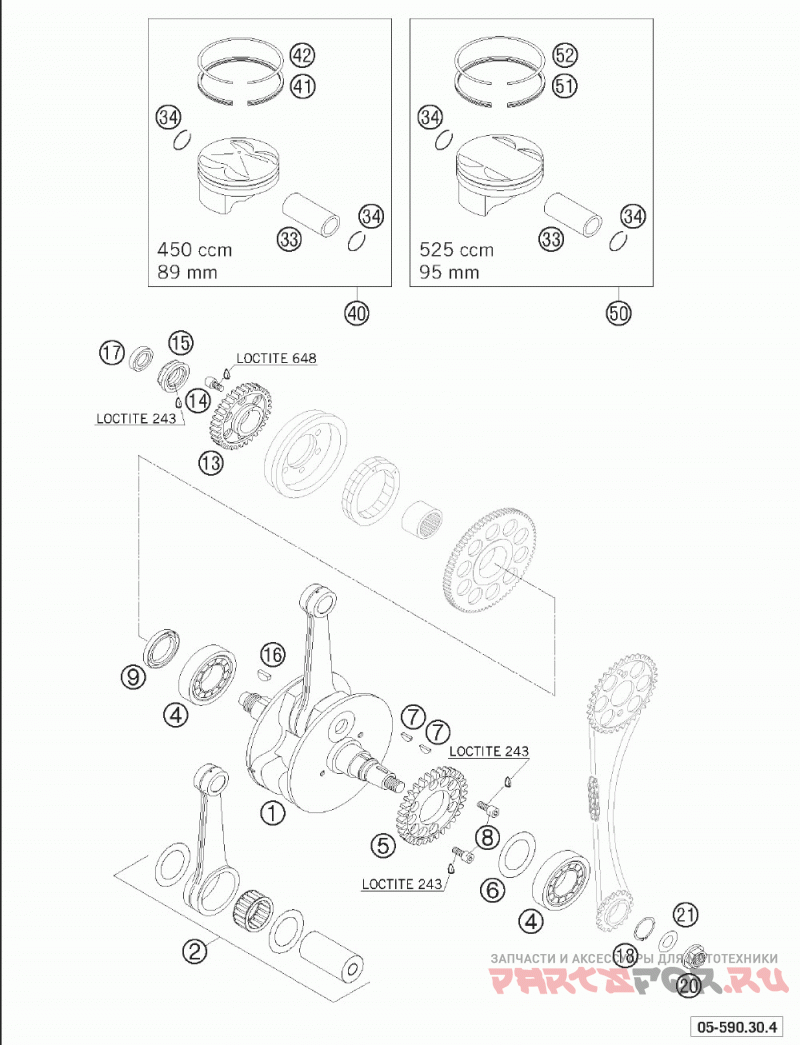

Crankshaft · piston 450/525 exc + mxc / 2005

KTM 450/525 SMR

KTM
#oem кодцена
1
59030018500
Crankshaft Cpl. 520 Rac. 2006
2
59030015044
Con.rod Rep.set 250/520 Rac.00
4
50330082000
Подшипник
5
59030055000
Drive Gear 32-t F.balanc.shaft
7
0888030050
Шпонка 3x5x13
8
0984060162
Ah Screw Din7984-m 6x16
9
0760304772
Sh.seal Ring 30x47x7 Bsl Viton
13
59032000033
Primary Gear 33-t
14
0912060106
винт 0912-м 6х10 10.9
15
59030029100
Hh Nur M20x1, 5 Ws=27 Left
16
6946005
Шпонка 5x6
17
0760142460
Shaft Seal Ring 14x24x6 B
18
0471250120
Circlip Din0471-25x1, 2
20
49030021000
Гайка M12x1
21
0137120000
Spring Washer Din0137-b12
33
59030033000
Piston Pin Bolt 20x15, 8/12x50
34
59030074000
Circlip C20x1, 5
40
59430007000 I
Piston Cpl. 450 D=89mm Si.1 03
40
59430007000 II
Piston Cpl. 450 D=89mm Si.2 03
41
59530031000
Oil Scraper Ring 89/81, 5x3
42
57530032000
Rectangular Ring 89mm
50
59030007000 I
Piston I 95mm Cpl. Forged 2000
50
59030007000 II
Piston Ii 95mm Cpl.forged 2000
51
58030631000
Oil Scraper Ring 95mm
52
59030032000
Rectangular Ring 95/87, 2x1, 25
