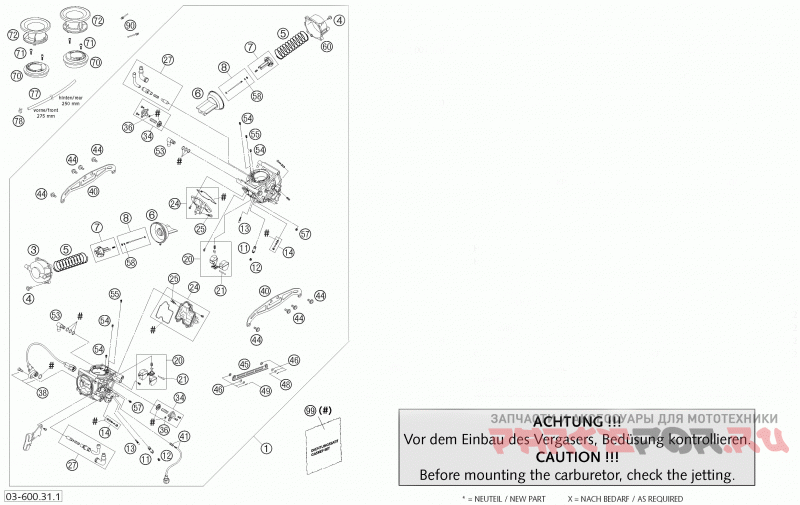

Carburetor keihin cvrd43 950

KTM 950 ADVENTURE

KTM
#oem кодцена
1
60031001000
Carburetor Cpl. Lc8 Cvrd 43 03
1
60031001100
Carburetor Cpl. Usa Cvrd 43 03
3
60031027000
Diaphragm Cov. Keihin Front 03
3
60031127000
Diaphragm C. Fr/re W.o. Epc-c.
4
60031028000
Screw Keihin 03
5
60031030000
Spring Keihin Lc8
6
60031035000
Vacuum Piston Cpl.
7
60031032000
Jed Needle Holder Cpl.
8
60031034000
Jet Needle Kehin Cpl. Ndfb
11
60031083000
Jet Holder
12
60031023155
Main Jet 155 Keihin
12
60031023160
Main Jet 160 Keihin
13
60031007042
Idle Jet 42 Keihin
14
60031017000
Adjust Screw Cpl.
20
60031009000
Поплавок
21
57331008000
Arm Pin Float
24
60031011044
Float Chamber Cpl.
25
57331155000
Drain Screw Float Chamber
27
60031048000
Choke Cpl.
34
60031090000
Air Cut Valve
36
59031058000
Прокладка
38
60031077000
Tps-sensor Cvrd43 440mm 02-05
40
60031091000
Carburetor Connecting Plate 03
41
60031025000
Stop Screw Cpl.
44
60031094000
Screw Keihin 2003
45
60031056000
Link Lever
46
60031087000
Link Lever Fixing
48
57331087000
Washer Link Lever
49
0094010103
Split Pin 1, 0x10
53
60031013000
Разъем Шланга
54
60031037040
Air Jet 40 Keihin
54
60031037080
Air Jet 80 Keihin
55
60031047050
Air Jet 50 Keihin
57
60031051068
Starter Jet 68 Keihin
58
54531629000
Clip For Jet Needle
70
60031041000
Carburetor Trumpet Support 03
71
0912040163
Ah Screw Din0912-m 4x16
72
60031040000
Carburetor Trumpet 03
78
58031005000
Хомут 12мм
90
60031029337
Slide Stop M5 03
99
60031099000
Gasket Set Keihin 03
