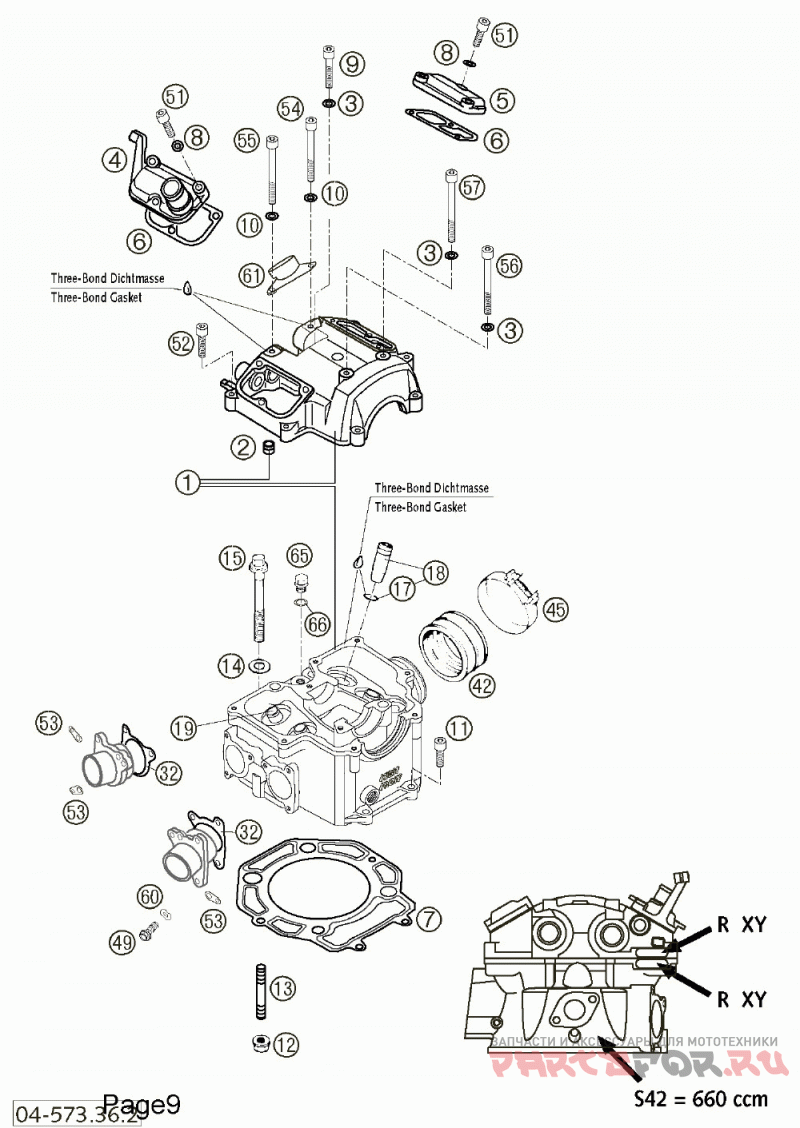

Cylinder head 660

KTM 660 SUPERMOTO FACTORY REPLICA

KTM
#oem кодцена
2
58530090000
Dowel Bushing 9, 8x7, 2x10
3
58036065100
Cu-seal Ring 6 X 10 X 2
4
58036152600
Valve Cover Front '99
5
58036052200
Valve Cover Rear
6
58036053000
Valve Cover Gasket
8
0603061001
Cu-seal Ring Din7603-6x10x1
9
0912060353
Ah Screw Din0912-m 6x35
10
0603070122
Cu-seal Ring Din7603- 7x12x2
11
0912060253
Ah Screw Din0912-m 6x25
12
49030028000
Collar Nut M8
13
54330043000
Stud Din0835-m 8x40
14
58036098000
Cu-seal Ring 10 X 20 X 1
15
58036099100
Collar Screw M10x80 Ws=13 10.9
17
0993012000
Circlip Din7993-rw12
18
58036026644
Valve Guide Intake Cpl.
19
58036126644
Valve Guide Exhaust Cpl.
32
58036041000
Exhaust Flange Gasket
42
58536044000
Intake Boot Rallye 2001
45
59030061100
Hose Clamp Gemi 56mm 03
49
0015060163
Hh Collar Screw M 6x16 Ws=8
51
0015060203
Hh Collar Screw M 6x20 Ws=8
53
51005074000
Retaining Plate
54
0912070553
Ah Screw Din0912-m 7x55 12.9
55
0912070603
Ah Screw Din0912-m 7x60 12.9
56
0912060653
Ah Screw Din0912-m 6x65
57
0912060703
Ah Screw Din0912-m 6x70
60
0137060003
Spring Washer Din0137-b 6
65
0910100003
Plug Din0910-m 10x1
66
0603100141
Copper Gasket Din7603-10x14x1
