Frame, sub frame 625 для мотоциклов KTM 625 SXC (2004)

Москва и регионы России

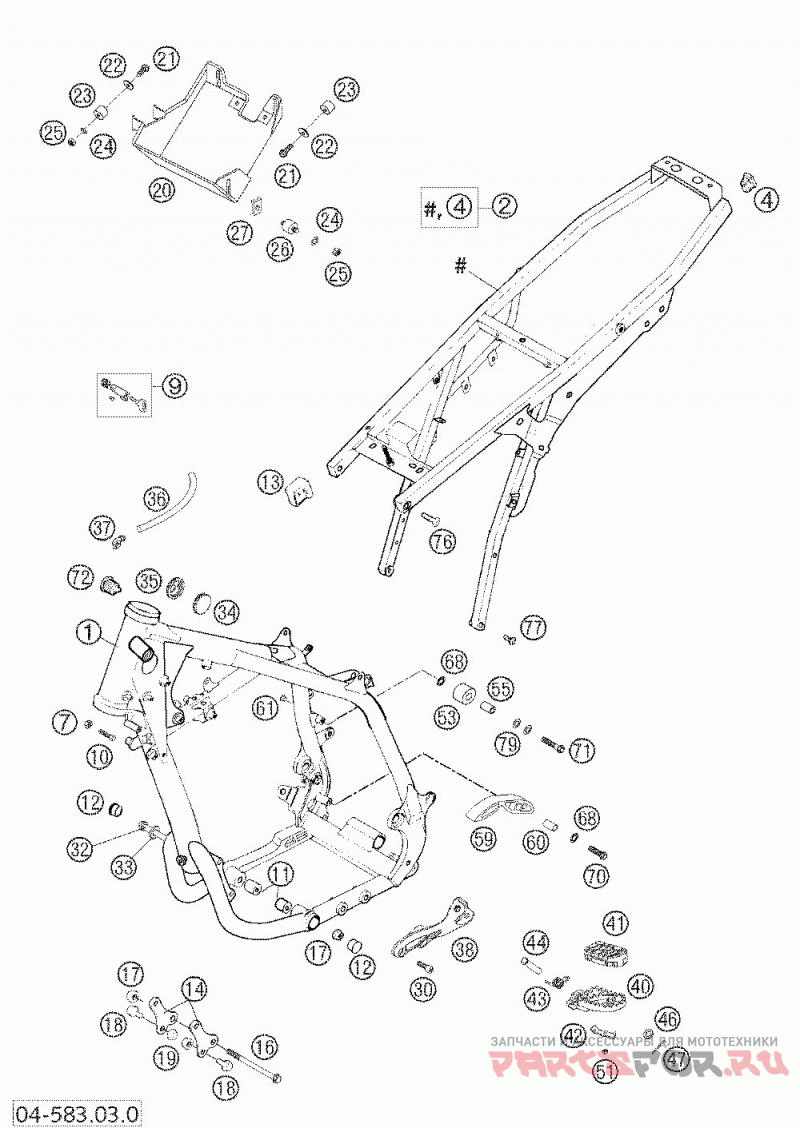

Frame, sub frame 625

KTM 625 SXC

Frame, sub frame 625

#

oem код

название

цена

42

Closing Panel Front L/s R/s 03

Closing Panel Front L/s R/s 03

43

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

44

Bolt For Foot Ped 03

Bolt For Foot Ped 03

46

Washer Din0125-a10, 5

Washer Din0125-a10, 5

47

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

51

Самоконтрящаяся Гайка 0985-м DIN 5

Самоконтрящаяся Гайка 0985-м DIN 5

53

Chain Roll 12x29x22, 5 '98

Chain Roll 12x29x22, 5 '98

55

Bush Chain Roll 8x12x23 '98

Bush Chain Roll 8x12x23 '98

59

Chain Sliding Piece Below '97

Chain Sliding Piece Below '97

60

Bushing 8, 2x10x20

Bushing 8, 2x10x20

61

Plastic Cap Sfl10

Plastic Cap Sfl10

68

Стопорная шайба 8 мм

Стопорная шайба 8 мм

70

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

71

Hh Collar Screw M 8x45 Ws=10

Hh Collar Screw M 8x45 Ws=10

76

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

77

Sprocket Screw-ah M8x20 Ws=6

Sprocket Screw-ah M8x20 Ws=6

79

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

1

Frame Cpl. "w4" Sxc/smc 04

Frame Cpl. "w4" Sxc/smc 04

1

Frame Cpl. "i4" Sxc Usa 04

Frame Cpl. "i4" Sxc Usa 04

2

Subframe Cpl. Stahl Lc4 97

Subframe Cpl. Stahl Lc4 97

2

Subframe Cpl. Steel Silver 00

Subframe Cpl. Steel Silver 00

4

Plug 12 X 17 Mm

Plug 12 X 17 Mm

7

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

9

Steering Head Lock Cpl. Zadi

Steering Head Lock Cpl. Zadi

10

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

11

Spacer Roller 10, 3x20x22

Spacer Roller 10, 3x20x22

12

Pvc Cap D=22mm

Pvc Cap D=22mm

13

Tank Support '93

Tank Support '93

14

Engine Support Agw '94

Engine Support Agw '94

16

Engine Brac.screw M10x110 Ws13

Engine Brac.screw M10x110 Ws13

17

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

18

Hh Collar Screw M 8x16 Ws=13

Hh Collar Screw M 8x16 Ws=13

19

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

20

Battery Box 03

Battery Box 03

21

Hh Collar Screw M 6x10 Ws=8

Hh Collar Screw M 6x10 Ws=8

22

Washer Din9021-a 6, 4

Washer Din9021-a 6, 4

23

Rubber Grommet 20x15-m6x10 (1)

Rubber Grommet 20x15-m6x10 (1)

24

Tooth Lock Wash. Din6797-a 6, 4

Tooth Lock Wash. Din6797-a 6, 4

25

Hexagon Nut Din0934-m 6

Hexagon Nut Din0934-m 6

26

Rubber Grommet 20x15-m6x8-(2)

Rubber Grommet 20x15-m6x8-(2)

27

Range Change Metal Nut M6

Range Change Metal Nut M6

30

Ah Screw Din6912-m10x25, 10.9, L

Ah Screw Din6912-m10x25, 10.9, L

32

Engine Brac.screw M10x160 Ws13

Engine Brac.screw M10x160 Ws13

33

Washer 10, 5 X 21 X 3

Washer 10, 5 X 21 X 3

34

Plug 37mm

Plug 37mm

35

Plug 37mm Perforated 04

Plug 37mm Perforated 04

37

Angle Piece '97

Angle Piece '97

38

Footrest Bracket Left Alu 05

Footrest Bracket Left Alu 05

40

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

40

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

41

Footrest Rubber Front L/s 03

Footrest Rubber Front L/s 03

41

Footrest Rubber Front R/s 03

Footrest Rubber Front R/s 03
