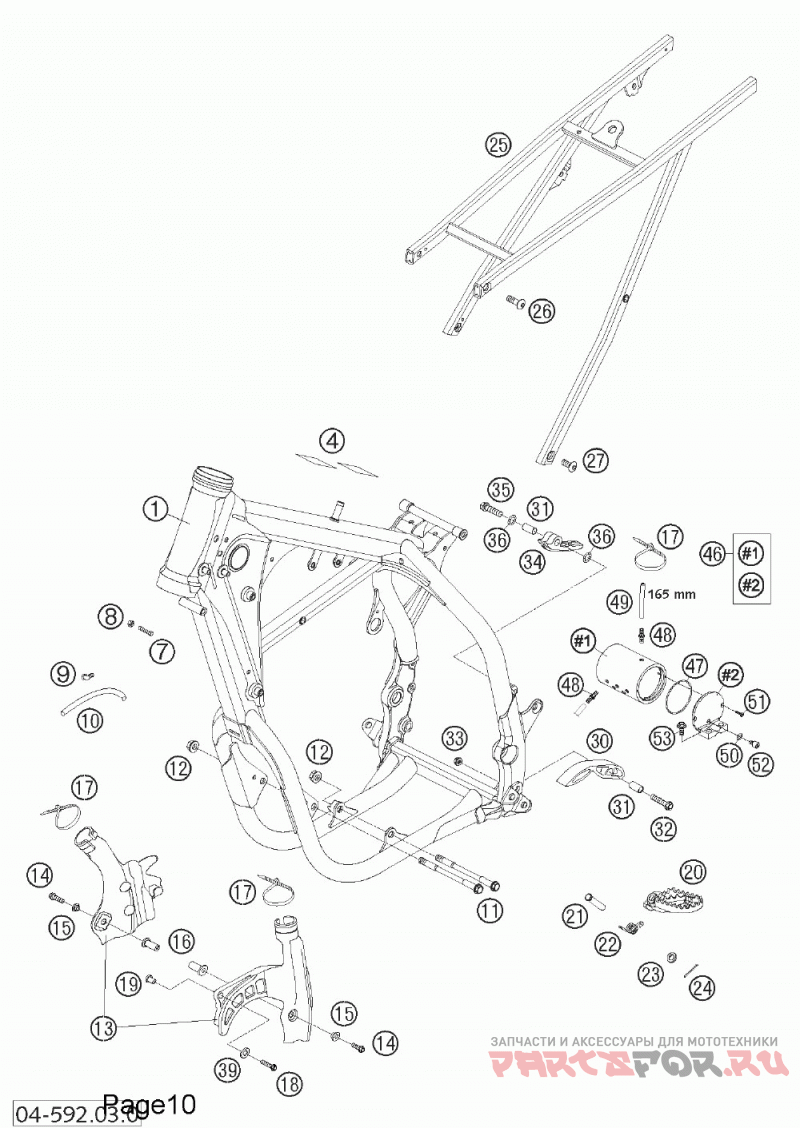

Frame, sub frame 450

KTM 450 SUPERMOTO FACTORY REPLICA

KTM
#oem кодцена
4
50307012000
Adh. Foil Transp. 80x80 Mm 04
7
59001037000
Special Screw M8x26 Ws=10
8
0934080003
Hexagon Nut Din0934-m 8
9
50303089000
Angle Piece '97
10
55007016001
Pvc-hose 7x10 Per Meter
11
59003013000
Enginebrac.screw M10x123 Ws=13
12
54310086100
Self Locking Nut M10 Cu Ws=14
13
54803094000
Frame Protection Set 03
14
0014050253
Hh Collar Screw M 5x25 Ws=6
15
54803092060
Bush F. Frame Protection 03
16
54803092050
Blind Plug-in Nut M5 Wn 22a 03
18
0015060353
Hh Collar Screw M 6x35 Ws=8
19
59030060050
Bushing F. Sprocket Cover Rac.
20
59003040250
Foot Peg L/s Silver 02
20
59003041250
Foot Peg R/s Silver 02
21
54803044000
Bolt For Foot Ped 03
22
54603041000
Footrest Spring L/s & R/s
23
0125100003
Washer Din0125-a10, 5
24
0094032253
Pin Din0094-3, 2x25 Steel
25
59403002044
Sub Frame Cpl. Alu Rac.(g3) 03
26
54510052100
Sprocket Screw-ah M8x26 Ws=6
27
54610052000
Sprocket Screw-ah M8x20 Ws=6
30
51103053000
Chain Sliding Piece Below '97
31
51103053051
Bushing 8, 2x10x20
32
0015080353
Hh Collar Screw M 8x35 Ws=10
33
54310086200
Self Locking Nut M8 10.9
34
54804067000
Chain Sliding Piece 03
35
0025080306
Hh Collar Screw M8x30 Tx40
36
36003014000
Стопорная шайба 8 мм
39
0125060003
Washer Din0125-a 6, 4
47
0770047015
O-ring 47, 00x1, 50 Nbr 70
50
0603061001
Cu-seal Ring Din7603-6x10x1
52
0912060083
Ah Screw Din0912-m 6x 8
53
0014060153
Hh Collar Screw M 6x15 Ws=8
