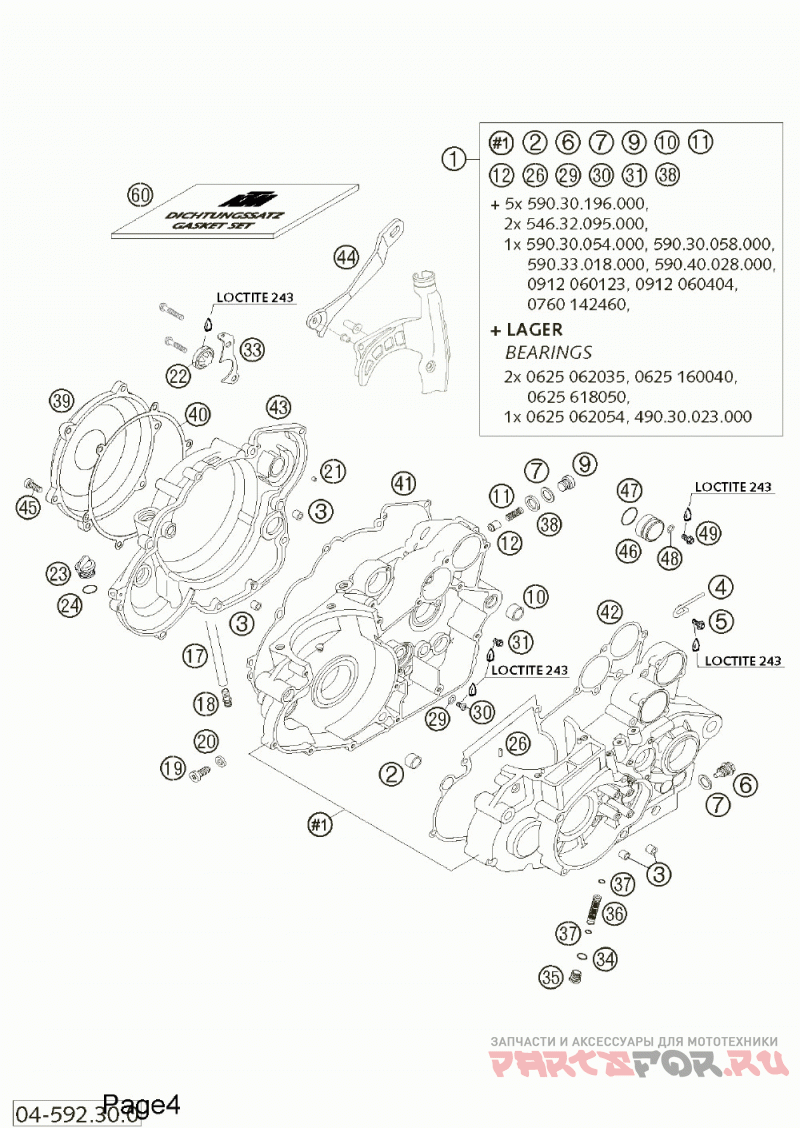

Engine case 450

KTM 450 SUPERMOTO FACTORY REPLICA

KTM
#oem кодцена
1
59030000050
Spacer 15x17x118
2
51030026100
Dowel 17 X 13 X 12
3
49030090000
Шпонка 9, 8 Х 7 Х 10
4
59030090000
Hanger For Vent Hose
5
0014060153
Hh Collar Screw M 6x15 Ws=8
6
58030021000
Пробка сливная с магнитом M12x1,5
7
58038022000
Кольцо 12x18x1, 5
9
0908120153
Plug Din0908-m12x1, 5
10
59030024000
Dowel 17 X 19 X 12
11
58038023300
Pressure Spring L=25mm D=1mm
12
58038028000
Valve Piston D=10mm
17
59031050100
Engine Breather Tube 00
18
59030022100
Штуцер,Фланец M12x1, 5
19
58030080000
Locating Screw M8 L=23
20
58030081000
Cu-seal Ring 8 X 14 X 3
21
0402025980
Needle Roller Din5402 2, 5x9, 8
22
59030019000
Стекло - уровень масла
23
58030020100
Пробка M24x3
24
0770191015
Кольцо 19,00x3,00
26
0402040980
Needle Rol.din5402 Nrb 4x9, 8
29
0125050003
Шайба Din0125-в 5, 3
30
0985050083
Flat Head Screw Din7985-m 5x 8
31
0015060083
Hh Collar Screw M 6x8 Ws=8
33
59030001090
Ret.bracket F.brake Lever Hub
34
0770120020
O-ring 12, 00x2, 00 Nbr 70
35
77038017000
Резьбовая пробка
36
59038015100
Oil Screen 11, 8x44, 5mm
37
0770090015
O-ring 9x1, 5 Nbr
38
0603121830
Seal Ring Din7603 12x18x3
41
59030025200
Clutch Cover Gasket
42
59030039200
Прокладка картера
44
59030047100
Chain Damping Plate Rac. 2005
45
0984060163
Ah Screw Din6912-m 6x16
46
59040034000
Cap Cover
47
0770250030
O-ring 25, 00x3, 00 Nbr 70
48
0125060003
Washer Din0125-a 6, 4
49
0015060123
Hh Collar Screw M 6x12 Ws=8
50
0015060453
Hh Collar Screw M 6x45 Ws=8
51
0015060603
Hh Collar Screw M 6x60 Ws=8
52
0015060303
Hh Collar Screw M 6x30 Sw=8
53
0015060353
Hh Collar Screw M 6x35 Ws=8
54
0015060753
Hh Collar Screw M 6x75 Ws=8
60
59030099000
Gasket Set Cpl. Racing 2000
