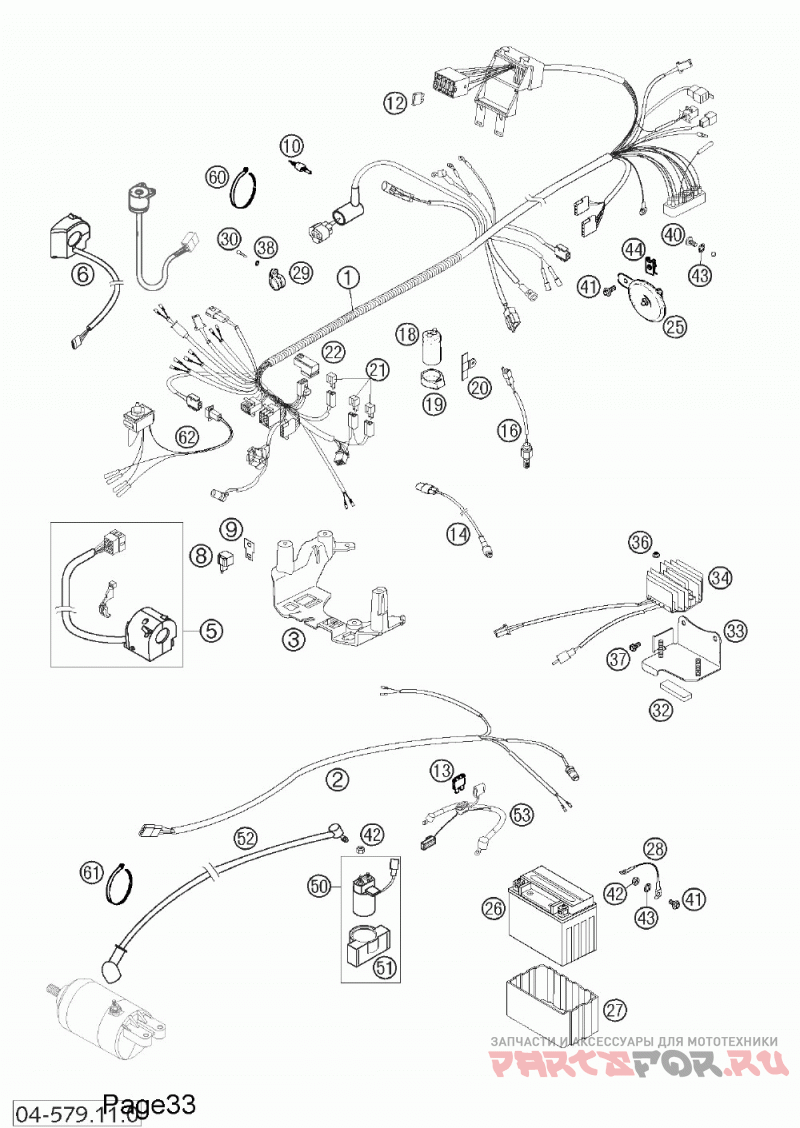

Wiring harness 400 ls-e/mil

KTM 400 LS-E/MIL

KTM
#oem кодцена
2
58411176300
Wiring Harness Rear 03
3
58411083100
Bracket For Plugs Lc4 '98
5
58411070100
Head Light Switch Ad Lc4 02
6
58411074100
Start-stop Switch Ad Lc4 02
8
44611207200
Flasher Unit 97
9
58211031100
Bracket For Flasher Relay
10
51011050000
Front Brake Light Switch
12
58011109110
Fuse 10 A 2000
13
58011109120
Fuse 20 A
14
58411049100
Clutch Switch 03
16
50311051100
Brake Light Switch Rear '98
18
49111435100
Condensator 25v, 10.000 Mf
19
54511048000
Capacitor Bracket
20
54611448000
Bracket For Capacitor
21
58411096100
Diode S3h-15 97
22
58411057000
Starter Relay '96
25
50311060100
Dc Horn L.e.b. 03
26
60011053000
Battery 12v/11ah 03
27
58411053050
Battery Cover 96
28
58411097100
Ground Cable D=6mm L=140mm '97
29
49007439000
Clamp Rsgu 15/12
30
0981480133
Sheet Met.scr.din7981- 4, 8x13
32
58414040051
Metamoll For Rearlight 99
34
58411034100
Volt.regulator-rectifier 12v
36
56509064100
Self Locking Nut M6 10.9
37
0015060103
Hh Collar Screw M 6x10 Ws=8
38
0797050003
Tooth Lock Wash. Din6797-j 5, 3
40
0024060106
Hh Collar Screw M6x10 Tx30
41
0014060153
Hh Collar Screw M 6x15 Ws=8
42
0985060003
Self Lock. Nut Din0985-m 6
43
58411098100
Contact Washer M6 Vsv-k6
44
54603048100
Range Change Metal Nut M6
50
58411058000
Starter Relay With Hold.rubber
51
58411058050
Hold. Rubber For Startrelay
52
58411059100
Startercable 700 Mm '97
61
44011076100
% Cable Tie 100/2, 5mm Black
