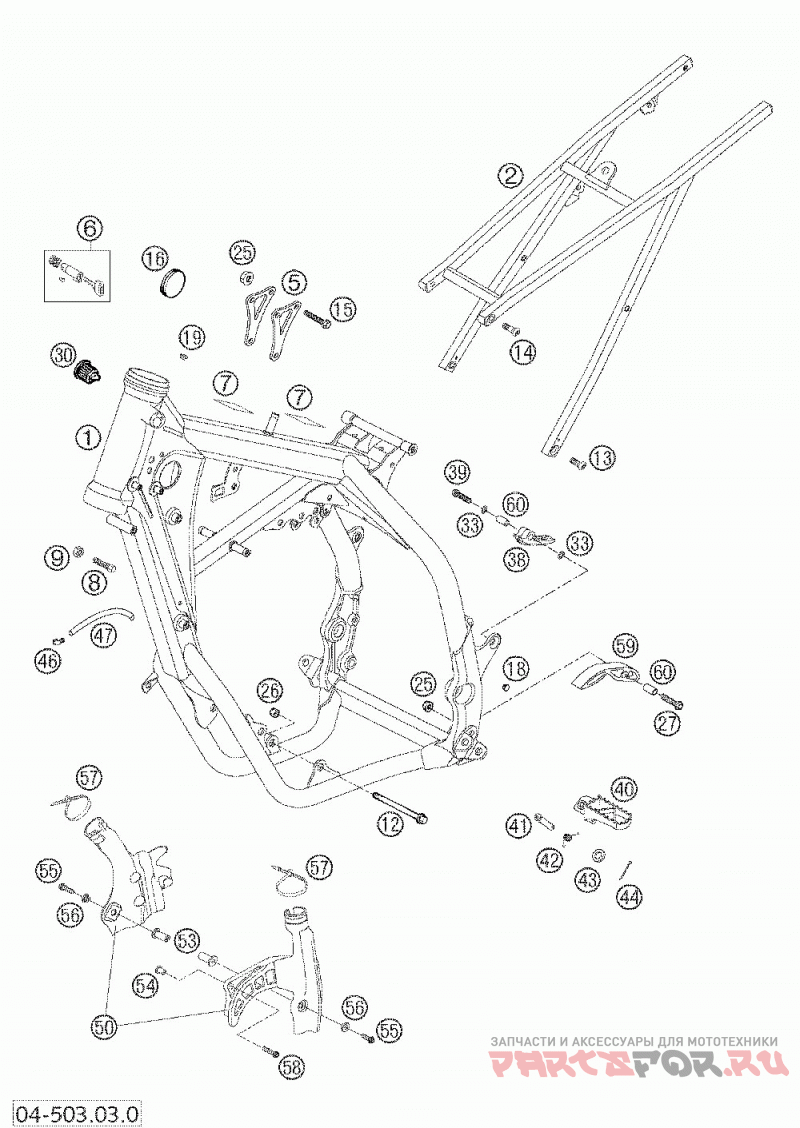

Frame, sub frame 125/200

KTM 125/200 SX

KTM
#oem кодцена
1
5030300150096
Frame 125/200 Sx "a4" 04
1
5030300160096
Frame 125/200 Exc-usa "c4" 04
2
50303002244
Sub Frame Cpl. 125 Sx "d4" 04
2
54803002044
Sub Frame Cpl.200/250sx "e3"03
2
54803002144
Sub Frame Cpl.2-st.exc "l3" 04
5
50303013000
Reinforcing Bracket 125 '98
5
52303013000
Reinforcing Bracket 200 '98
6
71003007000
Steering Head Lock Cpl. Zadi
7
50307012000
Adh. Foil Transp. 80x80 Mm 04
8
59001037000
Special Screw M8x26 Ws=10
9
0934080003
Hexagon Nut Din0934-m 8
12
54603013000
Engine Brac.scr. M10x105 Ws=13
13
54610052000
Sprocket Screw-ah M8x20 Ws=6
14
54510052100
Sprocket Screw-ah M8x26 Ws=6
15
56530079000
Collar Screw M8x42 Ws=13 10.9
16
54606004000
Plug 37mm
18
54403135000
Plastic Cap Sfl10
19
36111021000
Заглушка
25
54310086200
Self Locking Nut M8 10.9
26
54310086100
Self Locking Nut M10 Cu Ws=14
27
0015080353
Hh Collar Screw M 8x35 Ws=10
33
36003014000
Стопорная шайба 8 мм
38
54804067000
Chain Sliding Piece 03
39
0025080306
Hh Collar Screw M8x30 Tx40
40
59003040250
Foot Peg L/s Silver 02
40
59003041250
Foot Peg R/s Silver 02
41
54803044000
Bolt For Foot Ped 03
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
46
50303089000
Angle Piece '97
50
54803094000
Frame Protection Set 03
53
54803092050
Blind Plug-in Nut M5 Wn 22a 03
54
59030060050
Bushing F. Sprocket Cover Rac.
55
0014050253
Hh Collar Screw M 5x25 Ws=6
56
54803092060
Bush F. Frame Protection 03
57
44011076200
Cable Tie 200/3, 6mm Black
58
0015060403
Hh Collar Screw M 6x40 Ws=8
59
51103053000
Chain Sliding Piece Below '97
60
51103053051
Bushing 8, 2x10x20
58
0025060406
Hh Collar Screw M6x40 Tx30
