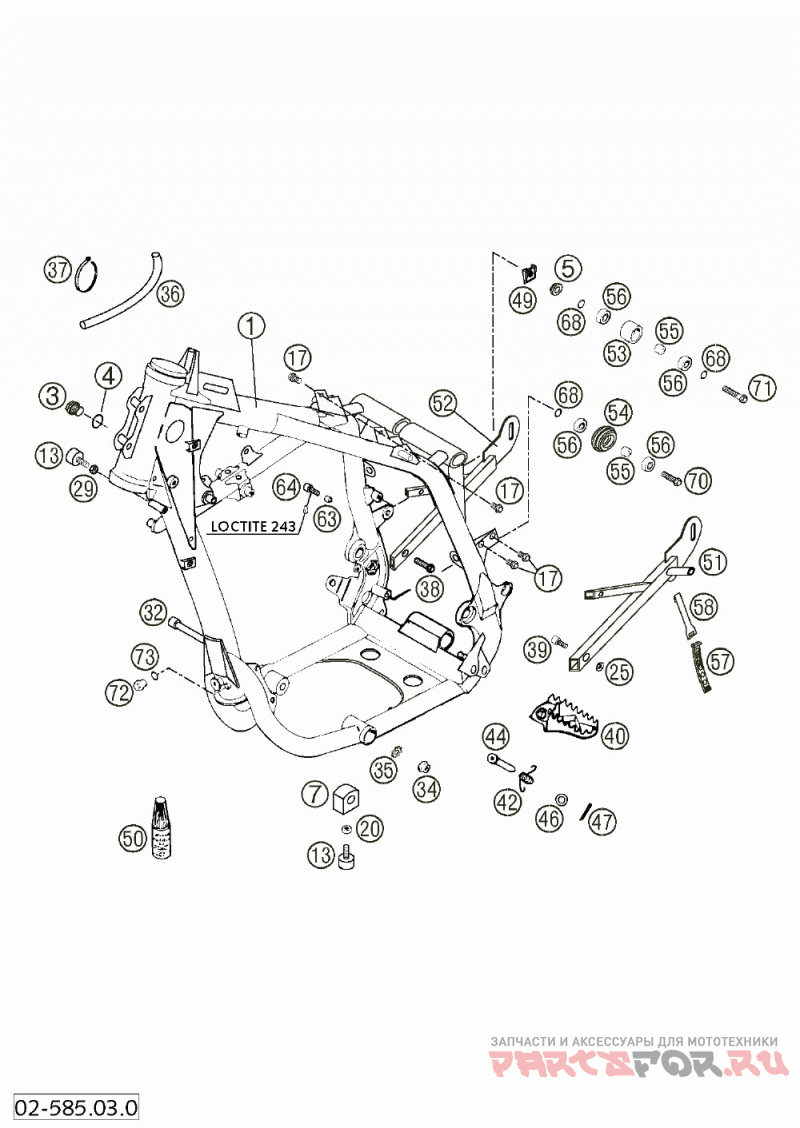

Frame, add-on parts 660

KTM 660 RALLYE

KTM
#oem кодцена
3
0910160153
Plug Din0910-m16x1, 5
4
0603162220
Cu-seal Ring 16x22x2
13
58303070000
Stop Rubber M8
17
0015050123
Hh Collar Screw M 5x12 Ws=8
20
0934080003
Hexagon Nut Din0934-m 8
32
0912101603
Ah Screw Din0912-m10x160
34
54630044000
Collar Nut M10 Ws=13
35
0797100003
Lock Washer Din6797-j10, 5 Zi
37
44011076100
% Cable Tie 100/2, 5mm Black
40
59003040250
Foot Peg L/s Silver 02
-
59003041250
Foot Peg R/s Silver 02
42
54603041000
Footrest Spring L/s & R/s
44
54603044000
Bolt For Footrest 9, 8 X 50
46
0125100003
Washer Din0125-a10, 5
47
0094032253
Pin Din0094-3, 2x25 Steel
53
50203053000
Chain Roll D=30mm
54
52303053100
Chain Roll D=35mm 125-380 '99
55
74003021000
Bushing 8.2 X 12 X 6
56
0625006087
Grooved Ball Bear. 608 2rs C3
57
54611186000
Rubber Band
63
54305069000
Bushing 7x12x15, 4
71
0015080653
Hh Collar Screw M 8x65 Ws=10
72
0910100003
Plug Din0910-m 10x1
73
58038022900
Cu-seal Ring 10 X 14 X 1, 5
