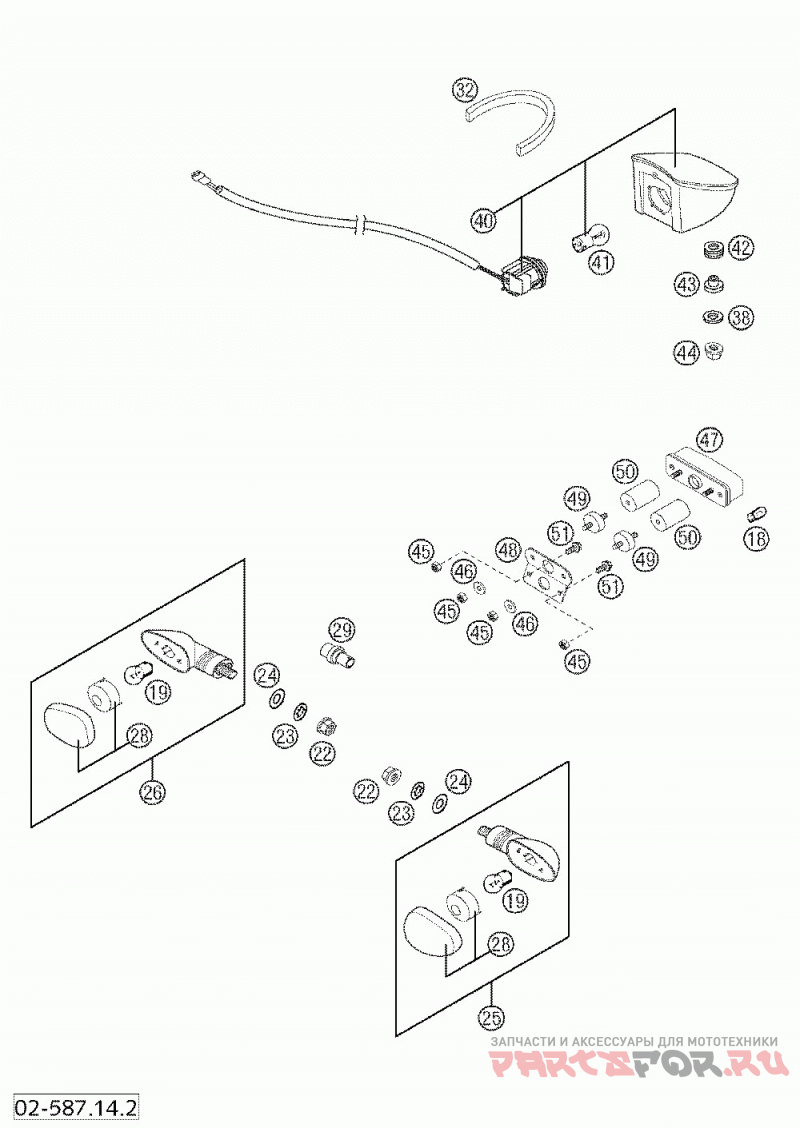

Flasher, rear light 640

KTM 640 DUKE II

KTM
#oem кодцена
18
49011435100
Bulb 12v 5w (w2, 1x9, 5d) Phil.
19
44111015100
Bulb 12v 10w (ba15s)
22
58414030000
Hh Collar Nut M10x1, 25 Ws=13
23
0797100003
Lock Washer Din6797-j10, 5 Zi
24
0125100003
Washer Din0125-a10, 5
25
58414025100
Flasher Cpl.front L/s Rear R/s
26
58414026100
Flasher Cpl.front R/s Rear L/s
28
58414028100
Flasher Lens L/s & R/s 02
29
58714030000
Flasher Support M10x1, 25 Sw=17
38
0021060003
Washer Din9021-a 6, 4
40
58414040100
Rear Light Cpl. Lc4 2001
41
58414042000
Bulb 12v 21/5w (bay15s)reinfo.
42
41001052000
Rubber Sleeve D=12mm
43
58714048000
Rear Light Bushing
44
56509064100
Self Locking Nut M6 10.9
45
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
46
0021050003
Washer Din9021-a 5, 3
47
58414047000
License-plate Illumination '98
48
58708015060
Bracket F.license-plate Illum.
49
49001426000
Rubber Grommet 20x10-m6x12 (2)
50
58708015070
Connecting Piece M6/m5 L=25mm
51
0015050123
Hh Collar Screw M 5x12 Ws=8
