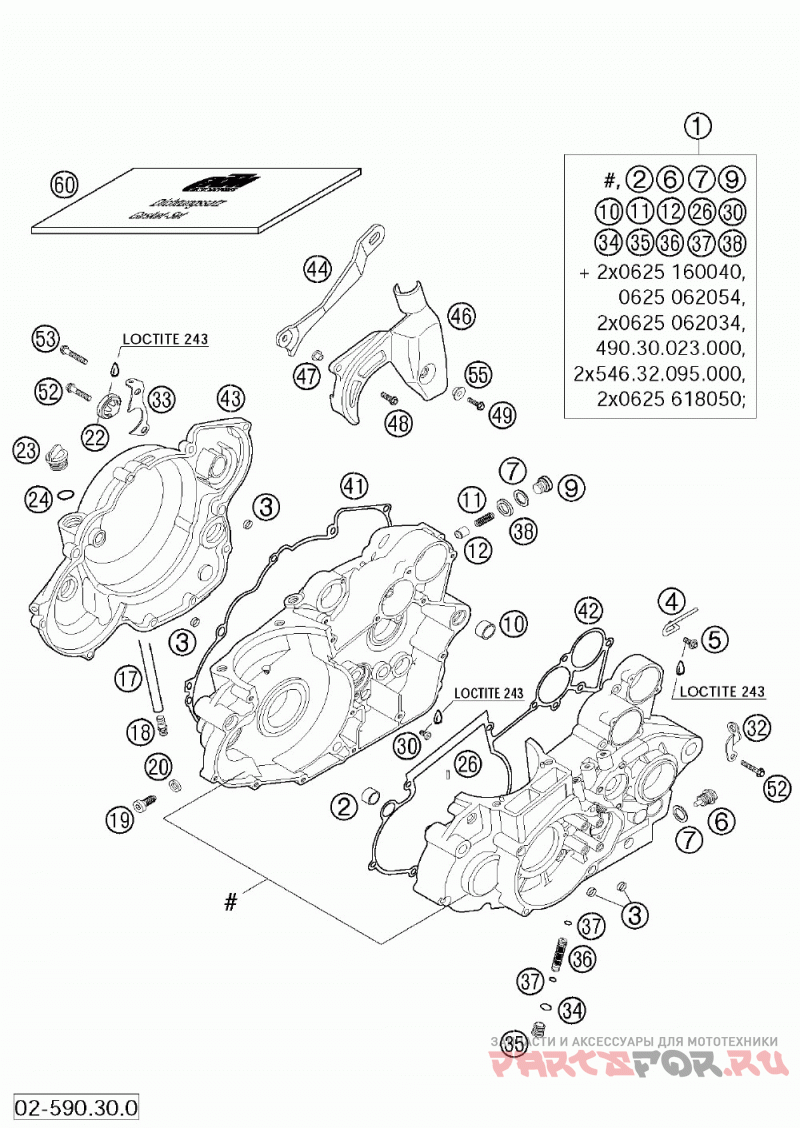

Engine case 400/520

KTM 400/520 SX, MXC, EXC RACING

KTM
#oem кодцена
1
59030000050
Spacer 15x17x118
2
51030026100
Dowel 17 X 13 X 12
3
49030090000
Шпонка 9, 8 Х 7 Х 10
4
59030090000
Hanger For Vent Hose
5
0014060153
Hh Collar Screw M 6x15 Ws=8
6
58030021000
Пробка сливная с магнитом M12x1,5
7
58038022000
Кольцо 12x18x1, 5
9
0908120153
Plug Din0908-m12x1, 5
10
50130027000
Dowel 19 X15, 1x12
11
58038023300
Pressure Spring L=25mm D=1mm
12
58038028000
Valve Piston D=10mm
17
59031050100
Engine Breather Tube 00
18
59030022100
Штуцер,Фланец M12x1, 5
19
58030080000
Locating Screw M8 L=23
20
58030081000
Cu-seal Ring 8 X 14 X 3
22
59030019000
Стекло - уровень масла
23
58030020100
Пробка M24x3
24
0770191015
Кольцо 19,00x3,00
26
0402040980
Needle Rol.din5402 Nrb 4x9, 8
30
0985050083
Flat Head Screw Din7985-m 5x 8
32
59013068000
Bracket Brake Fluid Reservoir
33
59030001090
Ret.bracket F.brake Lever Hub
34
0770120020
O-ring 12, 00x2, 00 Nbr 70
35
77038017000
Резьбовая пробка
36
59038015100
Oil Screen 11, 8x44, 5mm
37
0770090015
O-ring 9x1, 5 Nbr
38
0603121830
Seal Ring Din7603 12x18x3
43
59030001100
CLUTCH COVER RACING
44
59030047100
Chain Damping Plate Rac. 2005
46
59030060100
Sprocket Cover Racing 2002
47
59030060050
Bushing F. Sprocket Cover Rac.
48
0015060403
Hh Collar Screw M 6x40 Ws=8
49
0015060203
Hh Collar Screw M 6x20 Ws=8
50
0015060453
Hh Collar Screw M 6x45 Ws=8
51
0015060603
Hh Collar Screw M 6x60 Ws=8
52
0015060303
Hh Collar Screw M 6x30 Sw=8
53
0015060353
Hh Collar Screw M 6x35 Ws=8
54
0015060753
Hh Collar Screw M 6x75 Ws=8
55
50308053000
Bush For Spoiler 6x11x16x7, 5
60
59030099000
Gasket Set Cpl. Racing 2000
48
0025060406
Hh Collar Screw M6x40 Tx30
