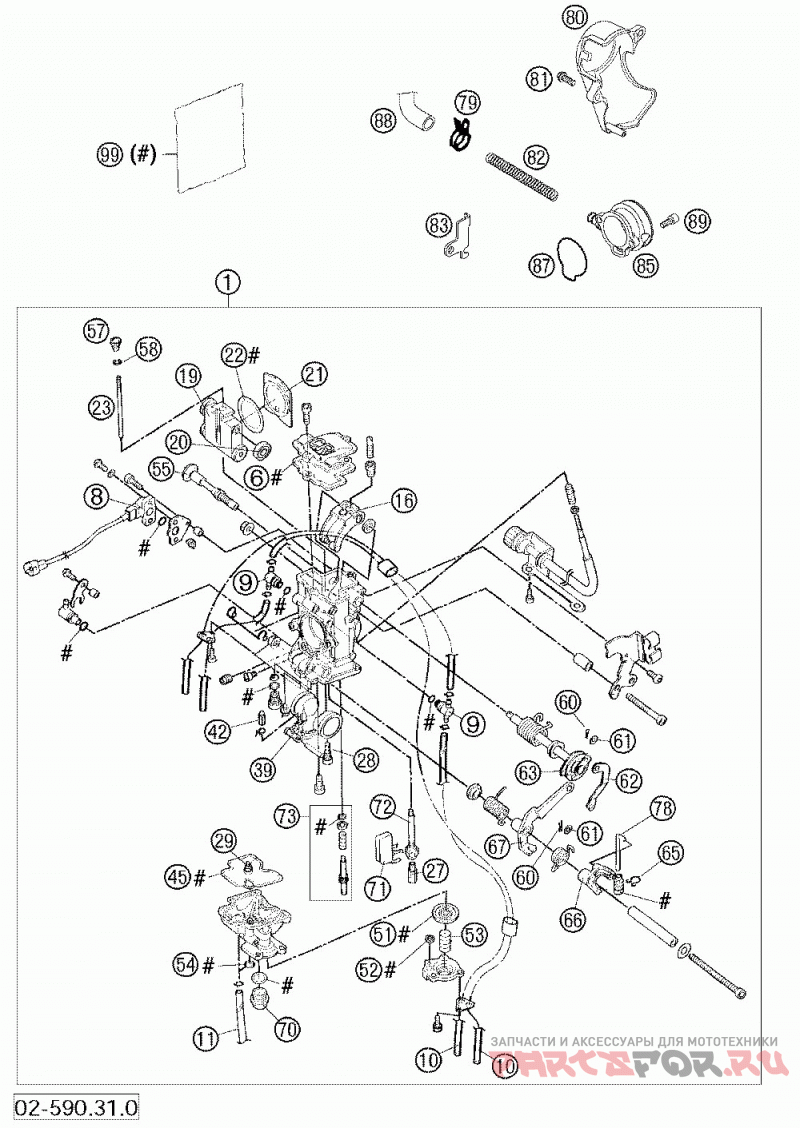

Carburetor keihin cr39 400/520

KTM 400/520 SX, MXC, EXC RACING

KTM
#oem кодцена
1
59031001100
Carburetor Keih.sx Fcr 39 2002
6
59031028000
Gasket Carburetor Cover
8
59031077000
Tps-sensor Fcr 200mm 99-03
9
59031083000
T-joint Breather Hose
16
59031035051
Link Arm Throttle Valve Cpl.
19
59031035015
Throttle Valve 15 Cpl.
20
59031035050
Втулка
21
59031035153
Прокладка
22
59031035052
Gasket Washer Throttle Valve
27
54531623175
Main Jet 175 Keihin
28
59031607048
Idle Jet 48
29
59031051085
Жиклер #85
39
59031009000
Поплавок
42
54631220000
Игла поплавка
45
59031010000
Прокладка поплавковой камеры
51
59031057000
Диафрагмма
52
59031058000
Прокладка
53
59031059000
Coil Spring
54
59031058100
Кольцо уплотнительное
55
59031048000
Starter Valve Cpl.
57
59031032000
Needle Set Screw
58
59031029000
Bar Clip
60
0094010103
Split Pin 1, 0x10
61
59031087000
Pvc Washer 3x8x0, 5
62
59031063000
Link Arm Cpl.
63
59031046000
Throttle Shaft Cpl.
65
59031084000
Tube Clip
66
59031056000
Link Lever
67
59031062000
Link Lever Cpl.
70
59031014000
Holding Bolt
71
59031085000
Буффер
72
59031121000
Жиклер
73
59031017000
Adjust Screw Cpl.
78
59031061000
Rod Accelerator Pump
79
58431082100
Ydnac-clamp 10173 (16mm) '98
80
59031086000
Carburetor Cover Racing 2000
81
0015060163
Hh Collar Screw M 6x16 Ws=8
82
32003073000
Pressure Spring
83
59031029024
Slide Stop 24, 5mm
85
59031040100
Intake Funnel Fcr/fcr-mx 2001
87
59031040010
O-ring For Intake Funnel
88
59031050100
Engine Breather Tube 00
89
0912050123
Ah Screw Din0912-m 5x12
99
59031099000
Gasket Set Fcr Keihin
