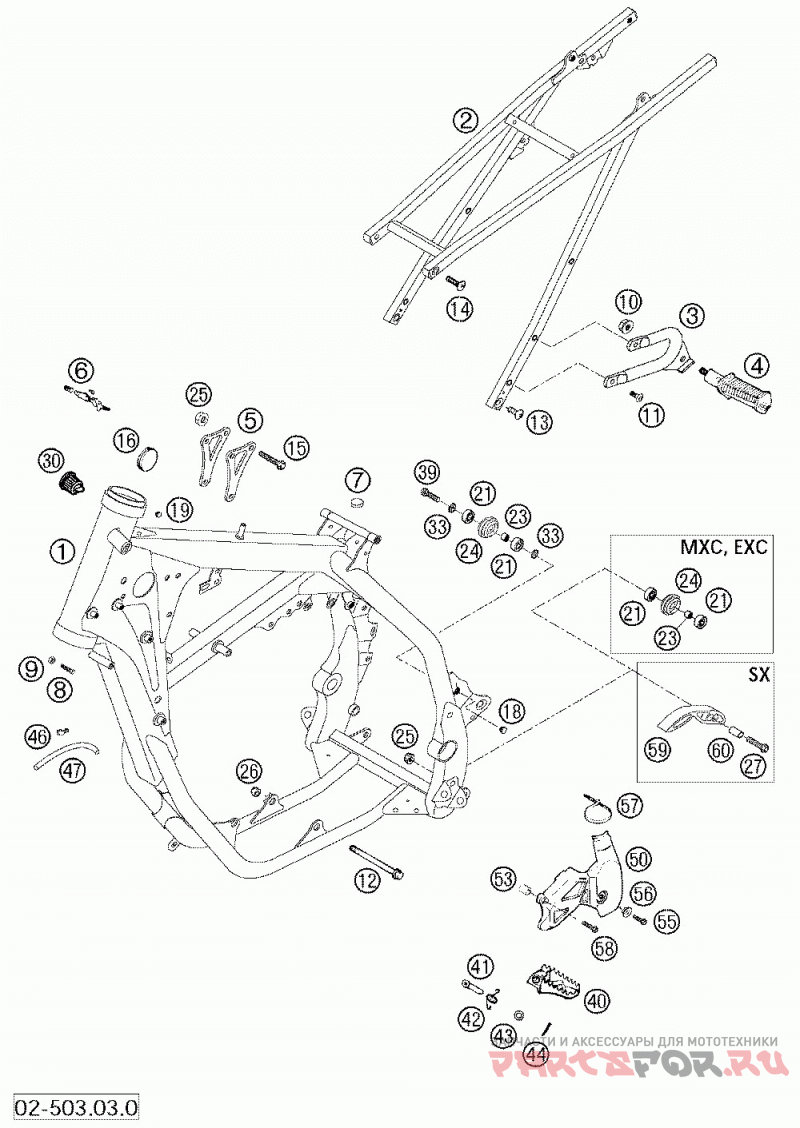

Frame, sub frame 125/200

KTM 125/200 SX, MXC, EXC, SGP-GS

Frame, sub frame 125/200

#

oem код

название

цена

2

Sub Frame Cpl.alu 125-380 98

Sub Frame Cpl.alu 125-380 98

4

Footrest Rear L/s Cpl.

Footrest Rear L/s Cpl.

-

Footrest Rear R/s Cpl.

Footrest Rear R/s Cpl.

5

Reinforcing Bracket 125 '98

Reinforcing Bracket 125 '98

5

Reinforcing Bracket 200 '98

Reinforcing Bracket 200 '98

6

Steering Head Lock Cpl. Zadi

Steering Head Lock Cpl. Zadi

7

Rubber Buffer For Tank '98

Rubber Buffer For Tank '98

8

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

9

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

10

Self Locking Nut M10 Fk8

Self Locking Nut M10 Fk8

11

Ah Oval H.screw Din0170-m 8x20

Ah Oval H.screw Din0170-m 8x20

12

Engine Brac.scr. M10x105 Ws=13

Engine Brac.scr. M10x105 Ws=13

13

Sprocket Screw-ah M8x20 Ws=6

Sprocket Screw-ah M8x20 Ws=6

14

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

15

Collar Screw M8x42 Ws=13 10.9

Collar Screw M8x42 Ws=13 10.9

16

Plug 37mm

Plug 37mm

18

Plastic Cap Sfl10

Plastic Cap Sfl10

19

Заглушка

Заглушка

21

Grooved Ball Bear. 608 2rs C3

Grooved Ball Bear. 608 2rs C3

23

Bushing 8.2 X 12 X 6

Bushing 8.2 X 12 X 6

24

Chain Roll D=30mm 125-380 '99

Chain Roll D=30mm 125-380 '99

25

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

26

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

27

Hh Collar Screw M 8x35 Ws=10

Hh Collar Screw M 8x35 Ws=10

30

Plastic Cap

Plastic Cap

33

Стопорная шайба 8 мм

Стопорная шайба 8 мм

39

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

40

Foot Ped L/s Exc Silver 2000

Foot Ped L/s Exc Silver 2000

40

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

-

Foot Ped R/s Exc Silver 2000

Foot Ped R/s Exc Silver 2000

-

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

41

Bolt For Footrest 9, 8 X 50

Bolt For Footrest 9, 8 X 50

42

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

43

Washer Din0125-a10, 5

Washer Din0125-a10, 5

44

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

46

Angle Piece '97

Angle Piece '97

50

Sprocket Cover

Sprocket Cover

53

Bushing 6, 5x8x11

Bushing 6, 5x8x11

55

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

56

Bush For Spoiler 6x11x16x7, 5

Bush For Spoiler 6x11x16x7, 5

57

Cable Tie 200/3, 6mm Black

Cable Tie 200/3, 6mm Black

58

Hh Collar Screw M 6x40 Ws=8

Hh Collar Screw M 6x40 Ws=8

59

Chain Sliding Piece Below '97

Chain Sliding Piece Below '97

60

Bushing 8, 2x10x20

Bushing 8, 2x10x20

58

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30
