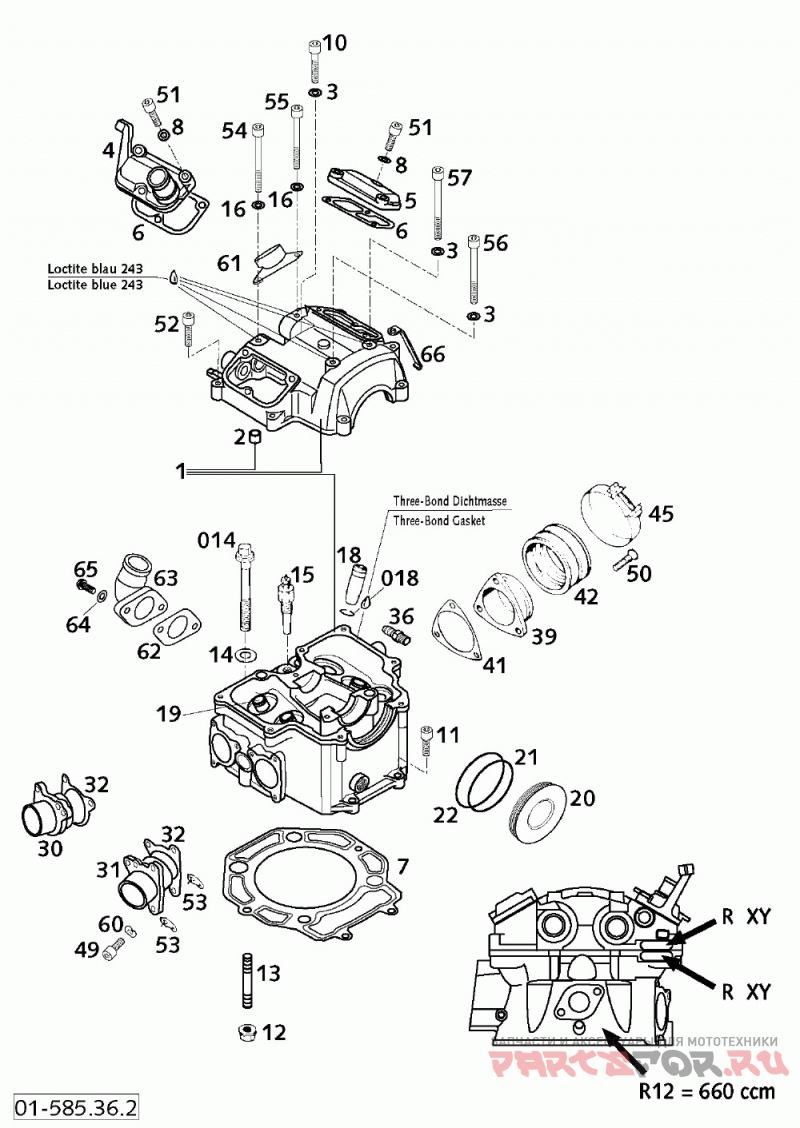

Zylinderkopf cylinder head 660

KTM 660 RALLYE CUSTOMER BIKE ENGINE

KTM
#oem кодцена
2
49030090000
Шпонка 9, 8 Х 7 Х 10
3
58036065100
Cu-seal Ring 6 X 10 X 2
4
58036152600
Valve Cover Front '99
5
58036052200
Valve Cover Rear
6
58036053000
Valve Cover Gasket
8
0603061001
Cu-seal Ring Din7603-6x10x1
10
0912060353
Ah Screw Din0912-m 6x35
11
0912060253
Ah Screw Din0912-m 6x25
12
49030028000
Collar Nut M8
13
54330043000
Stud Din0835-m 8x40
14
58036098000
Cu-seal Ring 10 X 20 X 1
14
58036099100
Collar Screw M10x80 Ws=13 10.9
15
42011252000
Temperature Switch Vdo
16
0603061202
Copper Gasket 6x12x2
18
0993012000
Circlip Din7993-rw12
18
58036026644
Valve Guide Intake Cpl.
19
58036126644
Valve Guide Exhaust Cpl.
21
0770047015
O-ring 47, 00x1, 50 Nbr 70
22
0770049025
O-ring 49, 00x2, 50 Nbr
32
58036041000
Exhaust Flange Gasket
36
58336020090
Vacuum Connection M 6x1
39
58536042000
Intake Flange D=43mm 2001
42
58536044000
Intake Boot Rallye 2001
45
59030061000
Clamp D=56mm B=9mm M4x25
49
0912060163
Ah Screw Din0912-m 6x16
50
0991060202
Flat Head Din7991-m 6x20
51
0912060203
Ah Screw Din0912-m 6x20
53
51005074000
Retaining Plate
54
0912060601
Ah Screw Din912 M 6x60 12.9
55
0912060551
Ah Screw Din0912-m 6x55 12.9
