Rahmen, ausleger frame, sub frame 65

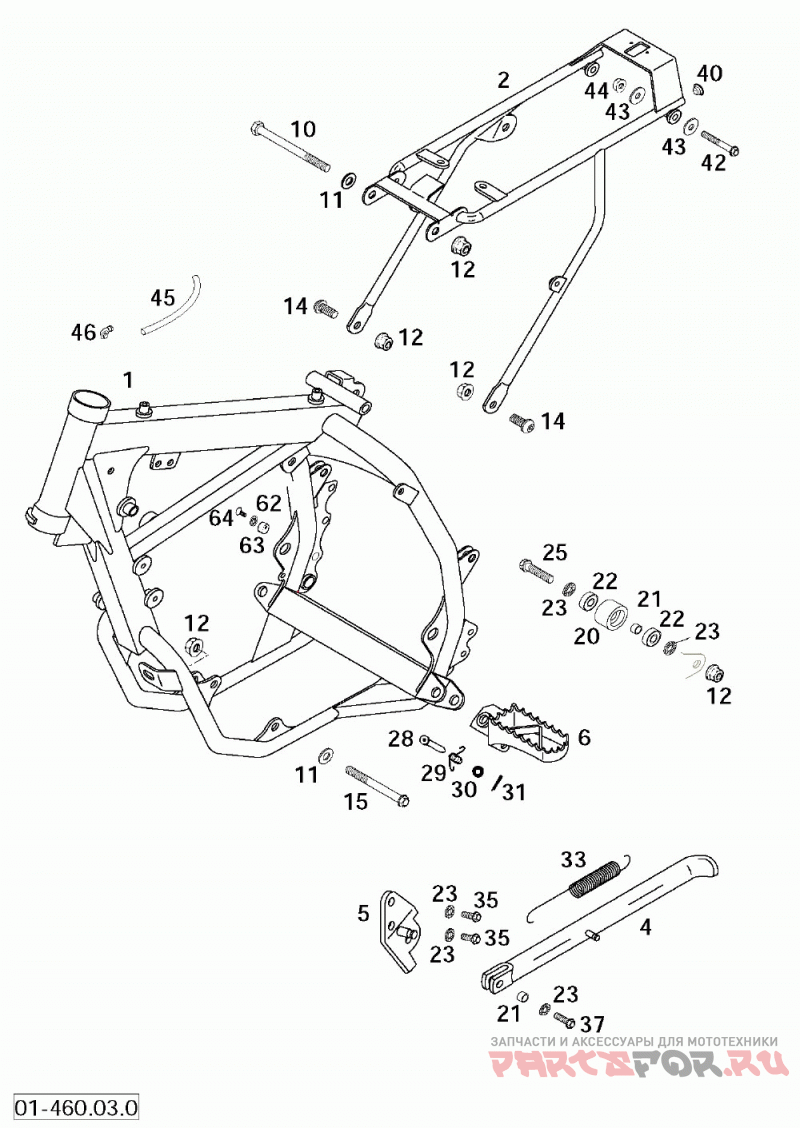

KTM 65 SX CHASSIS AND ENGINE

KTM
#oem кодцена
1
46003001200
Frame Silver 60/65 Sx 2000
2
46003002000
Sub Frame 60/65 Sx '98
4
46003023000
Side Stand L=315mm 60/65 Sx
5
46003024100
Side Stand Bracket 60/65 Sx'99
6
5460304000090
Foot Rest L/s Silver
10
0931081003
Hh Screw Din0931-m 8x100
11
0125080003
Washer Din0125-a 8, 4
12
54310086200
Self Locking Nut M8 10.9
14
0107080203
Ah Oval H.screw Din0170-m 8x20
15
0931080803
Hh Screw Din0931-m 8x80
20
50203053000
Chain Roll D=30mm
21
74003021000
Bushing 8.2 X 12 X 6
22
0625006087
Grooved Ball Bear. 608 2rs C3
23
36003014000
Стопорная шайба 8 мм
25
0015080353
Hh Collar Screw M 8x35 Ws=10
28
54603044000
Bolt For Footrest 9, 8 X 50
29
54603041000
Footrest Spring L/s & R/s
30
0125100003
Washer Din0125-a10, 5
31
0094032253
Pin Din0094-3, 2x25 Steel
33
51003021000
Sidestand Spring Long
35
0015080163
Hh Collar Screw M 8x16 Ws=10
37
0015080203
Hh Collar Screw M 8x20 Ws=10
40
50210086000
Covering Cap Sfl16
42
0015060453
Hh Collar Screw M 6x45 Ws=8
43
0021060003
Washer Din9021-a 6, 4
44
56509064100
Self Locking Nut M6 10.9
46
50303089000
Angle Piece '97
62
0797060003
Tooth Lock Wash. Din6797-a 6, 4
63
58303063000
Brake Lever Stop '93
64
0991060202
Flat Head Din7991-m 6x20
