Rahmen, ausleger frame, sub frame 640 для мотоциклов KTM 640 LC4 ADVENTURE CHASSIS (2001)

Москва и регионы России

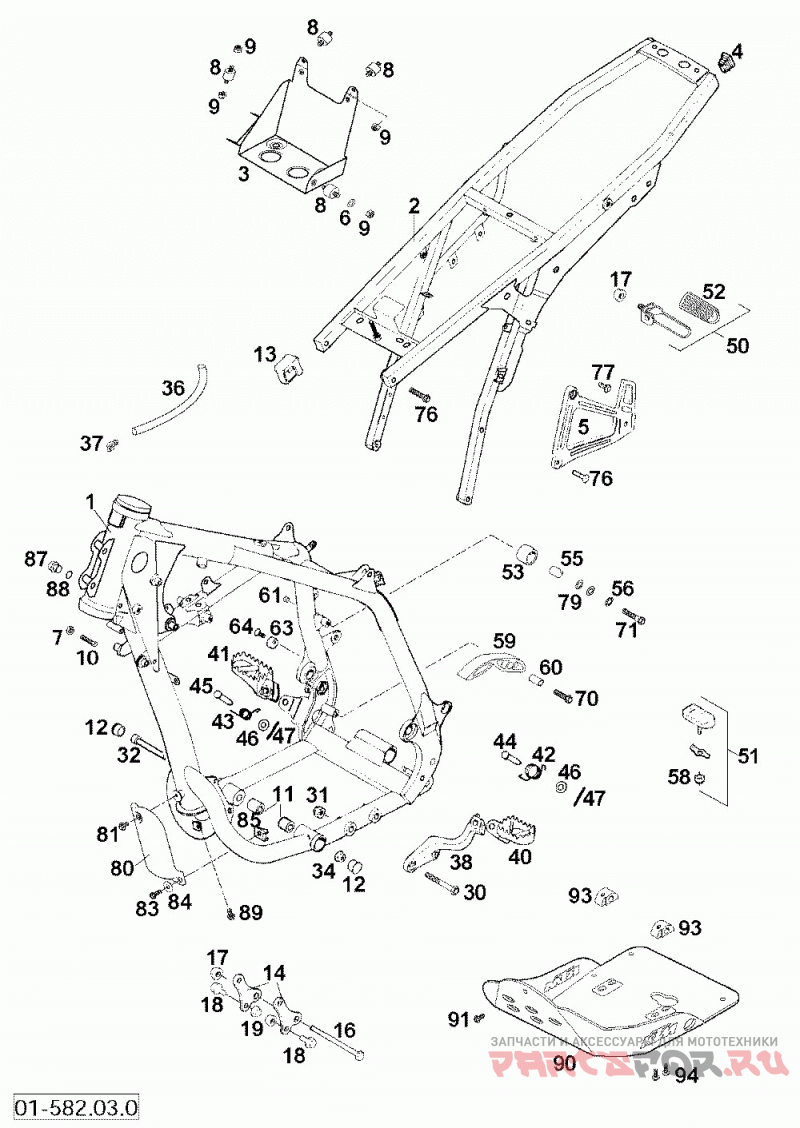

Rahmen, ausleger frame, sub frame 640

KTM 640 LC4 ADVENTURE CHASSIS

Rahmen, ausleger frame, sub frame 640

#

oem код

название

цена

2

Subframe Cpl. Steel Silver 00

Subframe Cpl. Steel Silver 00

3

Bracket F. Battery Lc4 '99

Bracket F. Battery Lc4 '99

4

Plug 12 X 17 Mm

Plug 12 X 17 Mm

5

Footrestbrack. Rear L/s 04

Footrestbrack. Rear L/s 04

6

Spring Washer Din0137-b 6

Spring Washer Din0137-b 6

7

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

8

Rubber Grommet 20x15-m6x8-(2)

Rubber Grommet 20x15-m6x8-(2)

9

Self Lock. Nut Din0985-m 6

Self Lock. Nut Din0985-m 6

10

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

11

Spacer Roller 10, 3x20x22

Spacer Roller 10, 3x20x22

12

Pvc Cap D=22mm

Pvc Cap D=22mm

13

Tank Support '93

Tank Support '93

14

Engine Support Agw '94

Engine Support Agw '94

16

Hh Screw Din0931-m10x110

Hh Screw Din0931-m10x110

17

Self Locking Nut M10 Fk8

Self Locking Nut M10 Fk8

18

Hh Collar Screw M 8x16 Ws=13

Hh Collar Screw M 8x16 Ws=13

19

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

30

Hh Screw Din0931-m10x60

Hh Screw Din0931-m10x60

31

Self Locking Nut Din0985-m10

Self Locking Nut Din0985-m10

32

Ah Screw Din0912-m10x160

Ah Screw Din0912-m10x160

34

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

37

Angle Piece '97

Angle Piece '97

38

Footrest Bracket L/s '93

Footrest Bracket L/s '93

40

Footrest L/s Silver '99

Footrest L/s Silver '99

41

Foot Rest R/s Silver '98

Foot Rest R/s Silver '98

42

Footrest Spring L/s '93

Footrest Spring L/s '93

43

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

44

Bolt For Footrest

Bolt For Footrest

45

Bolt For Footrest 9, 8 X 50

Bolt For Footrest 9, 8 X 50

46

Washer Din0125-a10, 5

Washer Din0125-a10, 5

47

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

50

Footrest Rear L/s Cpl. '95

Footrest Rear L/s Cpl. '95

51

Footrest Rubber Cpl. '94

Footrest Rubber Cpl. '94

52

Footrest Rubber L/s&r/s Duke95

Footrest Rubber L/s&r/s Duke95

53

Chain Roll 12x29x22, 5 '98

Chain Roll 12x29x22, 5 '98

55

Bush Chain Roll 8x12x23 '98

Bush Chain Roll 8x12x23 '98

59

Chain Sliding Piece Below '97

Chain Sliding Piece Below '97

60

Bushing 8, 2x10x20

Bushing 8, 2x10x20

61

Plastic Cap Sfl10

Plastic Cap Sfl10

63

Brake Lever Stop '93

Brake Lever Stop '93

64

Flat Head Din7991-m 6x20

Flat Head Din7991-m 6x20

70

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

71

Hh Collar Screw M 8x45 Ws=10

Hh Collar Screw M 8x45 Ws=10

76

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

77

Sprocket Screw-ah M8x20 Ws=6

Sprocket Screw-ah M8x20 Ws=6

79

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

80

Cover Oil Filter '94

Cover Oil Filter '94

81

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

83

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

84

Washer Din9021-a 6, 4

Washer Din9021-a 6, 4

85

Range Change Metal Nut M6

Range Change Metal Nut M6

87

Plug Din0910-m 10x1

Plug Din0910-m 10x1

88

Cu-seal Ring 10 X 14 X 1, 5

Cu-seal Ring 10 X 14 X 1, 5

89

винт 0912-м 6х10 10.9

винт 0912-м 6х10 10.9

90

Skid Plate Limited Cpl. 97

Skid Plate Limited Cpl. 97

93

Engine Protector Bracket '97

Engine Protector Bracket '97

94

Hh Collar Screw M 6x15 Ws=8

Hh Collar Screw M 6x15 Ws=8
