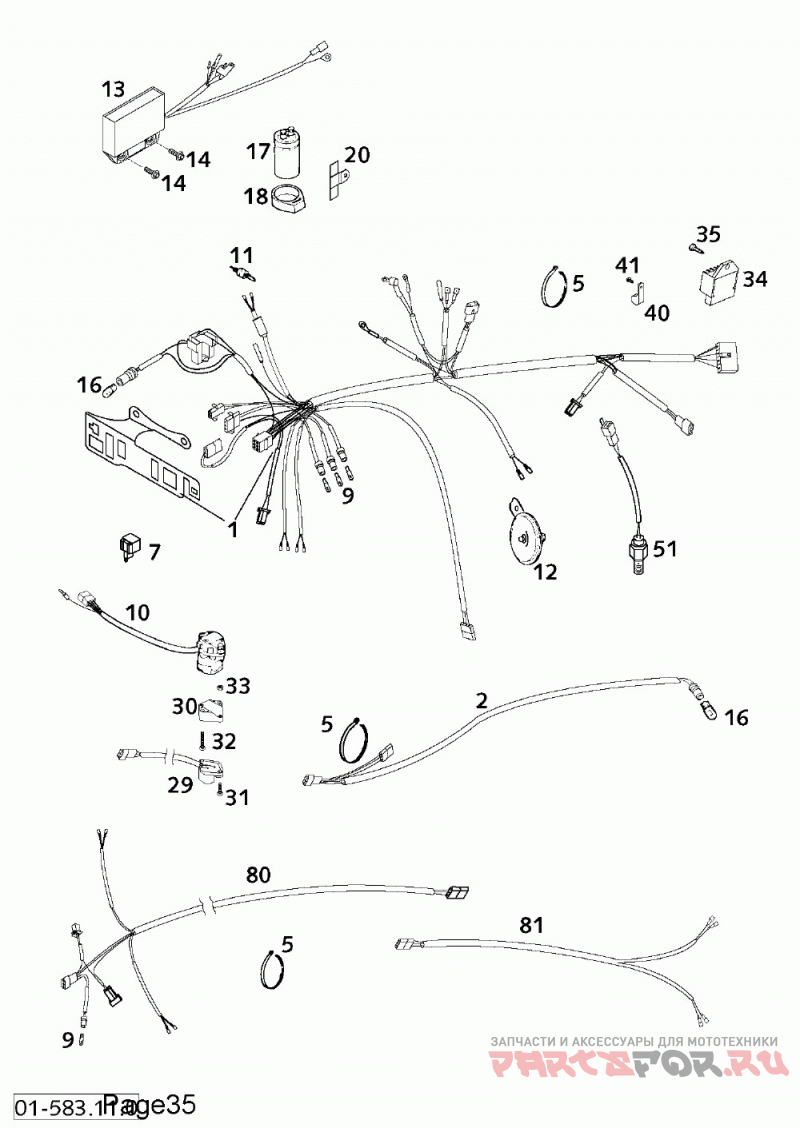

Kabelstrang wiring harness 620

KTM 620 SUPER COMPETITION, 620 SC SUPERMOTO CHASSIS

KTM
#oem кодцена
2
58411047000
Wiring H. Number P. Light 2001
5
44011076100
% Cable Tie 100/2, 5mm Black
7
44611207200
Flasher Unit 97
9
49111425000
Bulb 12v 1, 2w (w2x4, 6d)
10
50311070000
H.light Switch Cev 2/4takt '98
11
51011050000
Front Brake Light Switch
12
50311060000
Dc Horn 12v K80/l Leb
14
0014060203
Hh Collar Screw M 6x20 Ws=8
16
49011435100
Bulb 12v 5w (w2, 1x9, 5d) Phil.
17
49111435100
Condensator 25v, 10.000 Mf
18
54511048000
Capacitor Bracket
20
54611448000
Bracket For Capacitor
29
50311029000
Flasher Switch Cev '98
30
13011070060
Adapter For Flasher Switch '98
31
0985040163
Flat Head Screw Din7985-m 4x16
32
0084040223
Cyl.head Screw Din0084-m 4x22a
33
0934040003
Hexagon Nut Din0934-m 4
34
50311034000
Voltage Regula. 12v 125-200'98
35
0017060203
Ejot Pt Screw K60x20 Ws=6
40
57013070100
Pvc-clamp 7, 9 Mm Heyco 3355
41
0016050121
Screw For Plastic 50x12
51
50311051100
Brake Light Switch Rear '98
80
59011080000
Flash.wiringharness Front 2001
81
59011081000
Flash.wiringharness Rear 2001
9
49111425200
Bulb 12v 2, 3w (w2x4, 6d)
