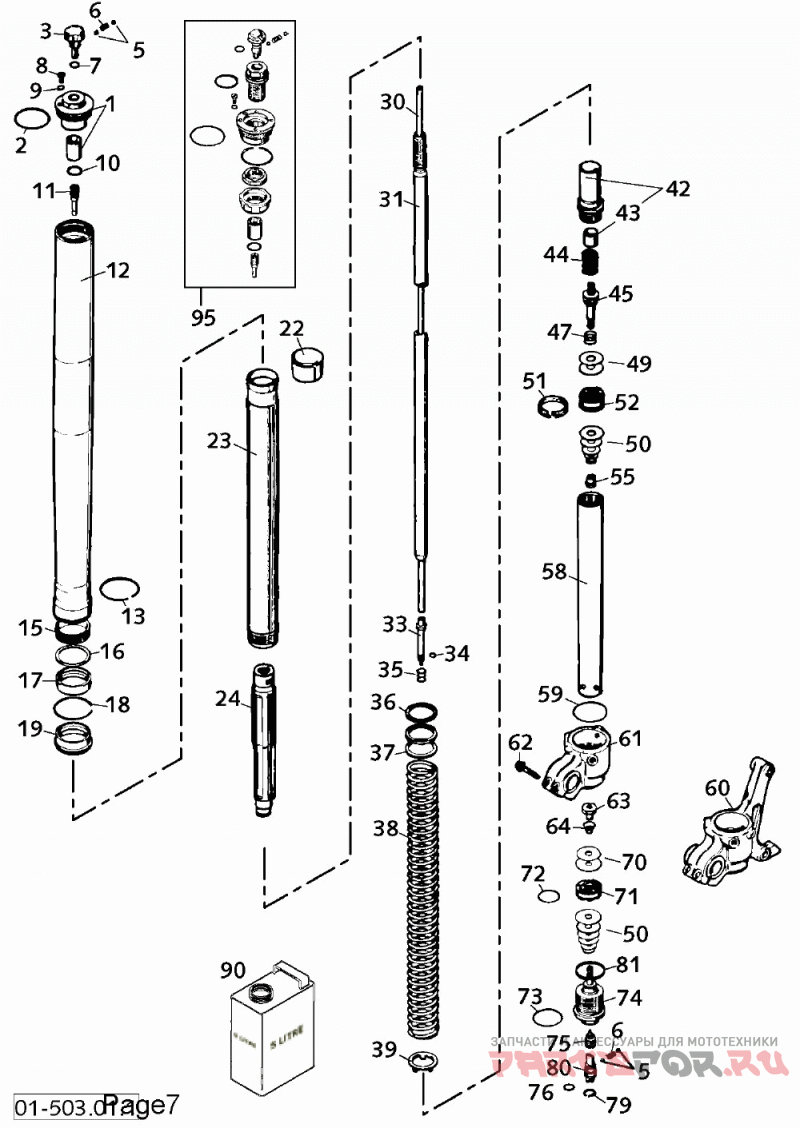

Gabelbeine wp usd 43 fork legs wp usd 43 620

KTM 620 SUPER COMPETITION, 620 SC SUPERMOTO CHASSIS

KTM
#oem кодцена
1
48600020S1
Screw Cap M51x1, 5 Cpl.
2
46810016
O-ring Nbr 48x2
3
48600018
Knob Reboung Adjuster
5
40540603
Steel Ball D=3mm
6
48600028
Spring D=2, 9 L=7, 9
7
48600044
O-ring Nbr 6x1, 5
8
48600058
Vent Screw M4x6
9
48600009
O-ring Nbr 3, 7x1, 6
10
48600043
O-ring Nbr 12x1, 5
11
48600019
Holder F.adjustment Tube D=4mm
12
43570125
Outer Tube L=577mm D=54/57mm
13
43570099
Guiding Ring D=53mm
15
43570019
Du-bush 47 X 43 X 20
16
43570092
Support Ring 45 X 52, 5 X 1, 5
17
43570201
Oil Seal Ring 43 X 52, 9 X 9, 5
18
43570008
Lock Washer Sb53
19
43570202
Dust Stripper 43 X 53, 4 X 11, 8
22
43570020
Du-bush 43, 8 X 43 X 20
24
43570142S
Hydr.stop L=200mm D=27, 5 Cpl.
30
48600014
Adjustment Tube L=512mm
30
48600094
Adjustment Tube L=492mm
31
48600023
Pistonr. D=14mm L=546mm M11x1
33
48600003
Rebound Needle
34
48600046
O-ring Nbr 3x1, 5
35
48600033
Spring Rebound Needle C=4n/mm
36
48600036
Spacer 42x26, 5x2, 5
36
48600037
Spacer 42x26, 5x5
36
48600038
Spacer 42x26, 5x10
36
48600053
Spacer 42x26, 5x1, 5
38
95010010S
Spring 3, 6 N/mm Set D=4, 6mm
38
95010001S
Spring 3, 8 N/mm Set D=4, 75
38
95010002S
Spring 4, 0 N/mm Set D=4, 75mm
38
95010003S
Spring 4, 2 N/mm Set D=4, 9mm
38
95010004S
Spring 4, 4 N/mm Set D=4, 9mm
38
95010022S
Spring 5, 0 N/mm Set D=5, 0mm
39
43570131
Interm. Ring 26, 2x38, 5x3
42
43570132S
Screw Sleeve M29, 3x1+bush
43
46810651
Du-bush 14x16x12
44
48600015
Rebound Spring D=14, 6mm L=22mm
45
48600025
Tap Rebound
47
48600059
Spring Check Valve D=0, 25
49
48600062
Check Valve 8x24x0, 1
49
40541408
Shim 6x8, 0x0, 30
49
40541414
Shim 6x8, 0x0, 10
50
40540400
Shim 6x12x0, 1
50
40540401
Shim 6x14x0, 1
50
40540402
Shim 6x16x0, 1
50
40540403
Shim 6x18x0, 1
50
40540404
Shim 6x12x0, 15
50
40540405
Shim 6x14x0, 15
50
40540406
Shim 6x16x0, 15
50
40540407
Shim 6x18x0, 15
50
40540411
Shim 6x18x0, 2
50
40540414
Shim 6x16x0, 25
50
40540447
Shim 6x10x0, 3
50
40541383
Shim 6x11x0, 1
50
40541391
Shim 6x11x0, 3
50
48600063
Shim 6x24x0, 1
50
48600064
Shim 6x22x0, 1
50
48600065
Shim 6x20x0, 1
50
48600116
Shim 6x24x0, 1 Delta
50
48600139
Shim 6x22x0, 1 Delta
51
48600060
Piston Ring 5x1x84
52
48600042
Piston Rebound D=27, 7
55
40540486
Nut M6x0, 5 Rebound
58
48600081
Tube 29, 3x1x390 D=8, 5mm
58
48600140
Tube 29, 3x1x385 Alu
59
43570023
O-ring Nbr 41x2
60
43570124
Axle Clamp L/s 260mm M8 2000
61
43570123S
Axle Clamp R/s Cpl. Usd 43 04
62
0015080303
% Hh Collar Screw M 8x30 Ws=10
63
40541241
Check Valve Nut M6x0, 5
64
40541278
Spring Check Valve D=0, 5mm
70
48600061
Check Valve 8x24x0, 4
71
48600047
Piston Compression D=27, 9
72
46811499
O-ring Nbr 21x2
73
35480320
O-ring Nbr 24x2
74
48600586S
Tap Compression Cpl. 07
75
48600035
Needle Compression M10x1
76
48600049
O-ring Nbr 8x2
79
48600051
Lock Washer Rb12
80
48600034
Compression Adj. Screw
81
48600004
Copper Washer 29, 5x33, 5x1
95
48600074S
Pre-load Adjuster Cpl.(2 Pcs.)
