Motor s5-gs engine s5-gs 50 sx junior/senior, jr/sr adventure

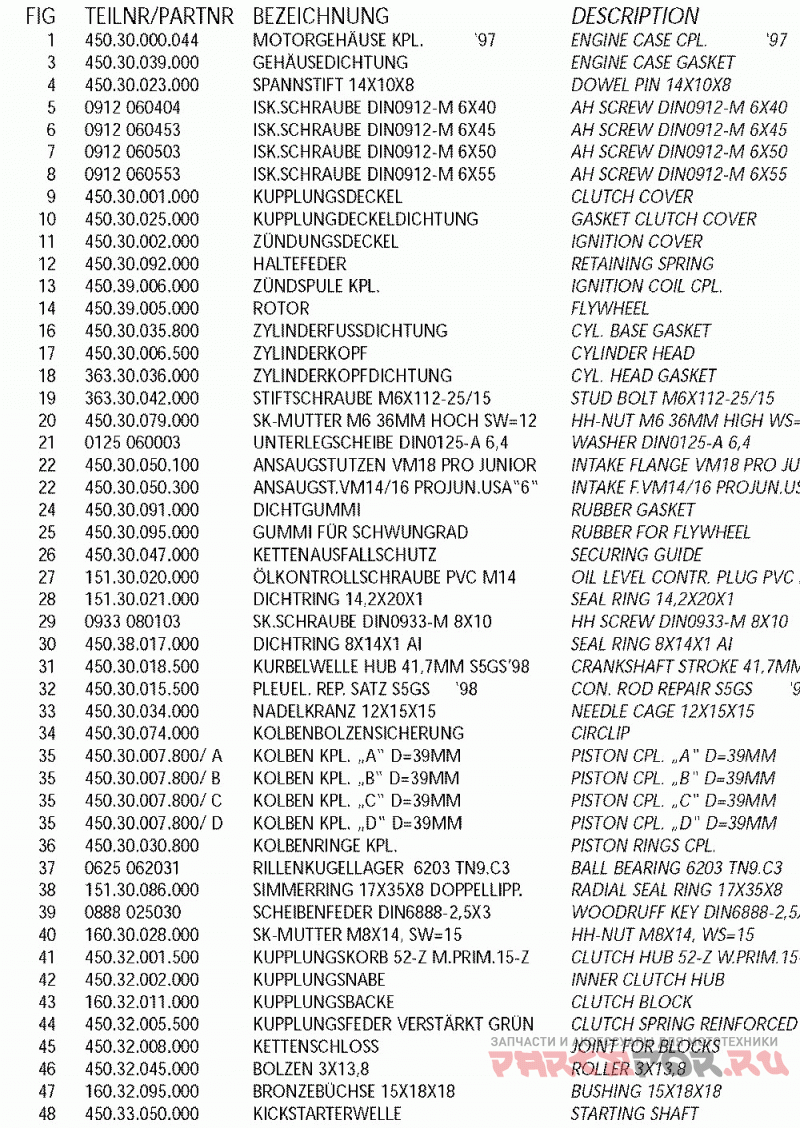

KTM 50 Mini Adventure, SX Junior/Senior, JR/SR Adventure ENGINE

KTM
#oem кодцена
49
45033052000
Kickst. Ratchet
50
45033056000
Пружина
52
16233039000
Stop Screw M8
53
16233040000
Rubber 10x26x18
54
45039003000
Ground Plate Ignition Coil
55
45033076000
Kickstarter Rubber
56
0933070253
Hh Screw Din0933-m 7x25
57
45033054000
Пружина
58
45033051000
Kickstarter Sprockets
59
45033077000
Plastic Cap Kickstarter
60
0770120020
O-ring 12, 00x2, 00 Nbr 70
61
45033078000
Washer 8, 4x25x0, 4
62
45033002000
Счетчик Вал
63
0625062028
Ball Bearing 6202-2rsh/c3
64
15133028000
Radial Seal Ring 15x24x5
65
45033029800
Sprocket 10-t
66
15133031000
Washer 12, 2x20x1, 8
67
45039008000
Rubber Cap
68
45033022000
Washer 15x22x0, 4
69
45030009800
Cylinder + Piston
70
36333096000
Circlip 14x1, 2
71
45033023000
Washer 16x25x0, 5
72
0471160150
Circlip Din0471-16x1
73
0125050003
Шайба Din0125-в 5, 3
74
45030090000
Screw M4x10
75
45039093004
Spark Plug Bosch W 4 Ac
76
45039090000
Spark Plug Connector
77
0797050003
Tooth Lock Wash. Din6797-j 5, 3
78
45030046800
Прокладка Выхлопной
79
0912050123
Ah Screw Din0912-m 5x12
80
36330056000
Antivibration Rubber
81
45033024000
Circlip 17, 5x1, 2
83
15130033000
Piston Pin 8x12x31, 4
84
0912060603
Ah Screw Din0921-m 6x60
86
0912050203
Ah Screw Din0912-m 5x20
88
15133032000
Hh-nut M12x1, 25 6mm High
89
45033070000
Starting Lever
90
45030051800
Reed Valve Housing S5-gs
91
45030057800
Gasket Membran Housing
92
16030057000
Stud Bolt M6x33-11/16
93
0127060003
Spring Ring Din0127-b 6
94
51010086000
Self Locking Nut M 6 Copper
95
0934060003
Hexagon Nut Din0934-m 6
97
45030054100
Reed Valve Element D=18, 5mm'99
98
45030049900
Intake Flange Gasket D=22, 5mm
99
45030099800
Gasket Set Gaskets
99
45030099100
Gasket Set Seal Rings
1
45030000044
Engine Case Cpl. '97
3
45030039000
Прокладка картера
4
45030023000
Tension Pin 14x10x8
5
0912060404
Ah Screw Din0912-m 6x40 A2
6
0912060453
Ah Screw Din0912-m 6x45
7
0912060503
Ah Screw Din0912-m 6x50
8
0912060553
Ah Screw Din0912-m 6x55
9
45030001000
Clutch Cover
10
45030025000
Gasket Clutch Cover
11
45030002000
Крышка Зажигания
12
45030092000
Retaining Spring
13
45039006000
Ignition Coil Cpl.
14
45039005000
Маховик
16
45030035800
Cyl. Base Gasket
17
45030006500
Головка цилиндра
18
36330036000
Cyl. Head Gasket
19
36330042000
Stud Bolt M6x112-25/15
20
45030079000
Hh-nut M6 36mm High Ws=12
21
0125060003
Washer Din0125-a 6, 4
22
45030050100
Intake Flange Vm18 Pro Junior
22
45030050300
Intake F.vm14/16 Projun.usa"6"
24
45030091000
Rubber Gasket
25
45030095000
Rubber For Flywheel
26
45030047000
Securing Guide
27
15130020000
Oil Level Contr. Plug Pvc M14
28
15130021000
Seal Ring 14, 2x20x1
29
0933080103
Hh Screw Din0933-m 8x10
30
45038017000
Seal Ring 8x14x1 Ai
31
45030018500
Crankshaft Stroke 41, 7mm '98
32
45030015500
Con. Rod Repair S5gs '98
33
45030034000
Needle Cage 12x15x15
34
45030074000
Пружинное стопорное кольцо
36
45030030800
Piston Rings Cpl.
37
0625062031
Ball Bearing 6203 Tn9.c3
38
15130086000
Radial Seal Ring 17x35x8
39
0888025030
Woodruff Key Din6888-2, 5x3
40
16030028000
Hh-nut M8x14, Ws=15
41
45032001500
Clutch Hub 52-z W.prim.15-z
42
45032002144
Modification Kit Clutch Cpl.02
43
16032011000
Clutch Block
44
45032005500
Clutch Spring Reinforced
45
45032008000
Joint For Blocks
46
45032045000
Roller 3x13, 8
47
16032095000
Bushing 15x18x18
48
45033050000
Starting Shaft
27
15130020100
Oil Level Contr. Plug M14x1.25
