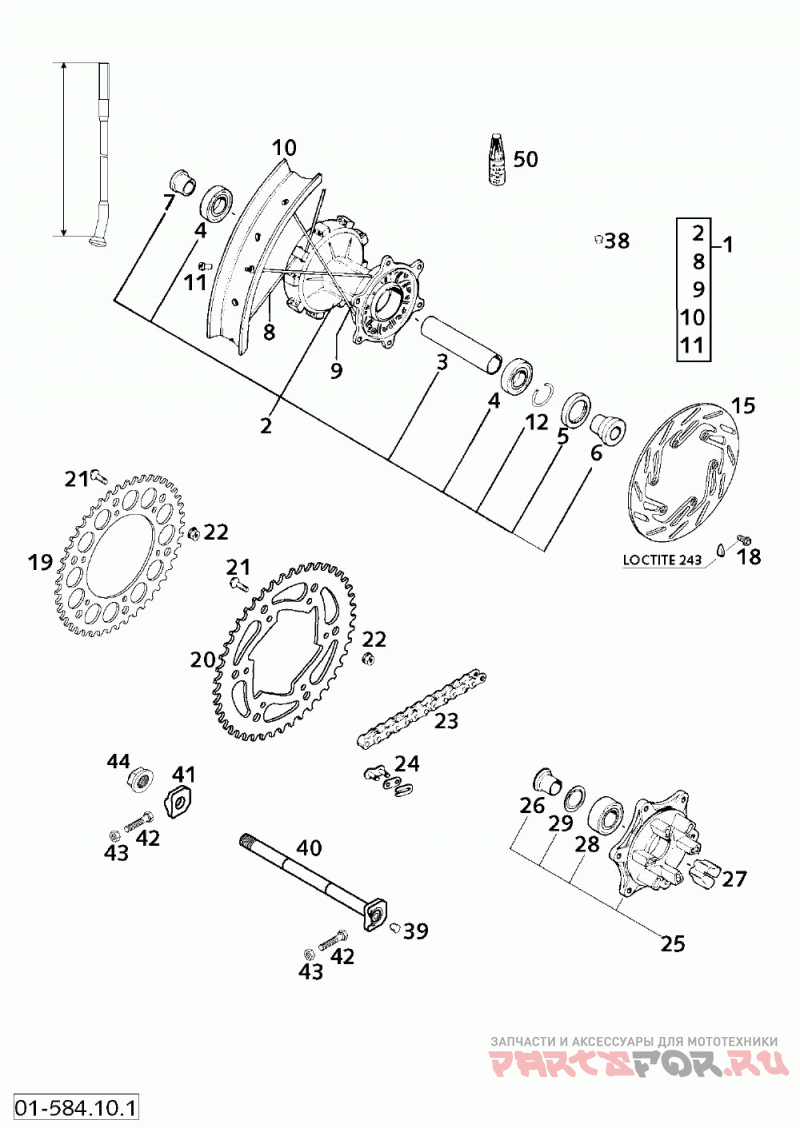

Hinterrad lc4-e rear wheel lc4-e 400/640

KTM 400/640 LC4-E, 640 LC4-E SUPERMOTO CHASSIS

KTM
#oem кодцена
1
58410001544
Деталь Rear Wheel Cpl. Damped 2, 5x18"
2
5841001034491
Деталь Rear Wheel Hub Damped Cpl. 06
3
58410011000
Деталь Bushing Spacer Tube L=98, 3mm
4
0625062052
Деталь Gr.ball Bear. 6205-2rshc3hmtf7
5
0760325272
Деталь Shaft Seal Ring 32x52x7 B
6
58410016000
Деталь Bushing For Hub
7
54610416300
Деталь Bushing For Rear Damped Hub
8
54610471000
Деталь Spoke M5x223-10g 18"
9
50310071197
Деталь Spoke M5x197-10g 18" Dde
10
58010470100
Деталь Rear Rim 2, 50x18" Did
11
58309072100
Деталь Spoke Nipple M5-ta 8x21mm
12
0472052200
Деталь Circlip Din0472-52x2
15
58010060600
Деталь Rear Brake Disk 220mm Counters
18
59009062013
Деталь Special Screw M6x13 Ws=8 10.9
19
58310051038
Деталь Rear Sprocket 38-t
19
58310151040
Деталь Rear Sprocket 40-t
19
58310051042
Деталь Rear Sprocket 42-t
19
58310151045
Деталь Rear Sprocket 45-t
20
58310151048
Деталь Rear Sprocket 48-t
20
58310151050
Деталь Rear Sprocket 50-t
20
58310151052
Деталь Rear Sprocket 52-t
21
54510052100
Деталь Sprocket Screw-ah M8x26 Ws=6
22
54310086200
Деталь Self Locking Nut M8 10.9
23
50310800118
Деталь % Chain Z-ring 5/8x1/4"
24
50010066100
Деталь Master Link 5/8x1/4" X-ring
25
58310050044
Деталь Sprocket Support Cpl.
26
54610417300
Деталь Bush. F.sprocketsupport L=25mm
27
54610459000
Деталь Rubber Damping Block '91
28
0625032057
Деталь Gr. Ball Bearing 3205b-2rsrtng
29
54610018000
Деталь Seal Washer 3205 Av
38
55003135000
Деталь Plug For Rim
39
50210086000
Деталь Covering Cap Sfl16
40
50210085044
Деталь Wheel Spindle Rear Cpl.l=264mm
41
56510084100
Деталь Chain Tensioner '95
42
50203030090
Деталь Hh Screw M8x40 Ws=10
43
0934080003
Деталь Hexagon Nut Din0934-m 8
44
50310099000
Деталь Hexagon Nut M20x1, 5 '98
