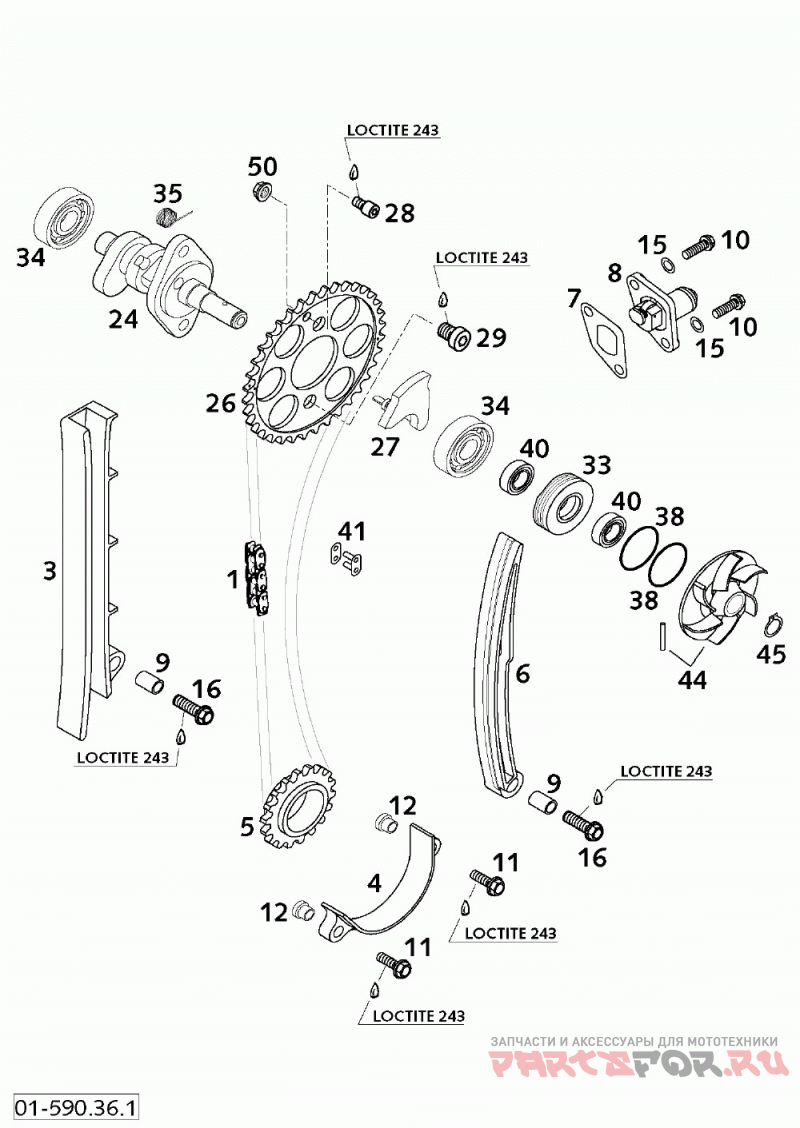

Steuertrieb timing valve 250

KTM 250 EXC RACING ENGINE

KTM
#oem кодцена
1
59836013000
Timing Chain 94 Rolls 02
3
59036001000
Timing Chain Guide Racing
4
59036018000
Securing Guide Racing
5
59036014000
Timing Gear 18-t
6
59036002000
Timing Chain Tensioner
7
59036003050
Gasket Timing Chain Tensioner
8
59036003000
Timingchain Tensioner Cpl.rac.
9
59036001050
Spacer Bushing 6, 1x8, 2x13, 1
10
0015060203
Hh Collar Screw M 6x20 Ws=8
11
0015050163
Hh Collar Screw M 5x16 Ws=8
12
59036018050
Supporting Sleeve 5, 2x7x10x7, 7
15
0603061001
Cu-seal Ring Din7603-6x10x1
16
0015060253
Hh Collar Screw M 6x25 Ws=8
26
59036011100
Camshaft Gear 2003
27
59036016000
Auto Decompression Shaft
28
0912050106
Ah Screw M5x10 Din912 10.9
29
0984080103
Ah Screw Din7984-m 8x10
33
59036081000
Gasket Support 33x11
34
0625062014
Ball Bearing 6201
35
59036017000
Spring For Autodecompression
38
0770020220
O-ring 25, 12x1, 78 Nbr70
40
0760101842
Shaft Seal R.10x18x4 B-viton
41
59036013050
Rivet Link For Timing Chain
44
59035055144
Water Pump Wheel Cpl. Rac.2001
45
0471100010
Circlip Din0471-10x1
50
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
