Kupplung clutch 660 для мотоциклов KTM 660 LC4 RALLYE ENGINE (2000)

Москва и регионы России

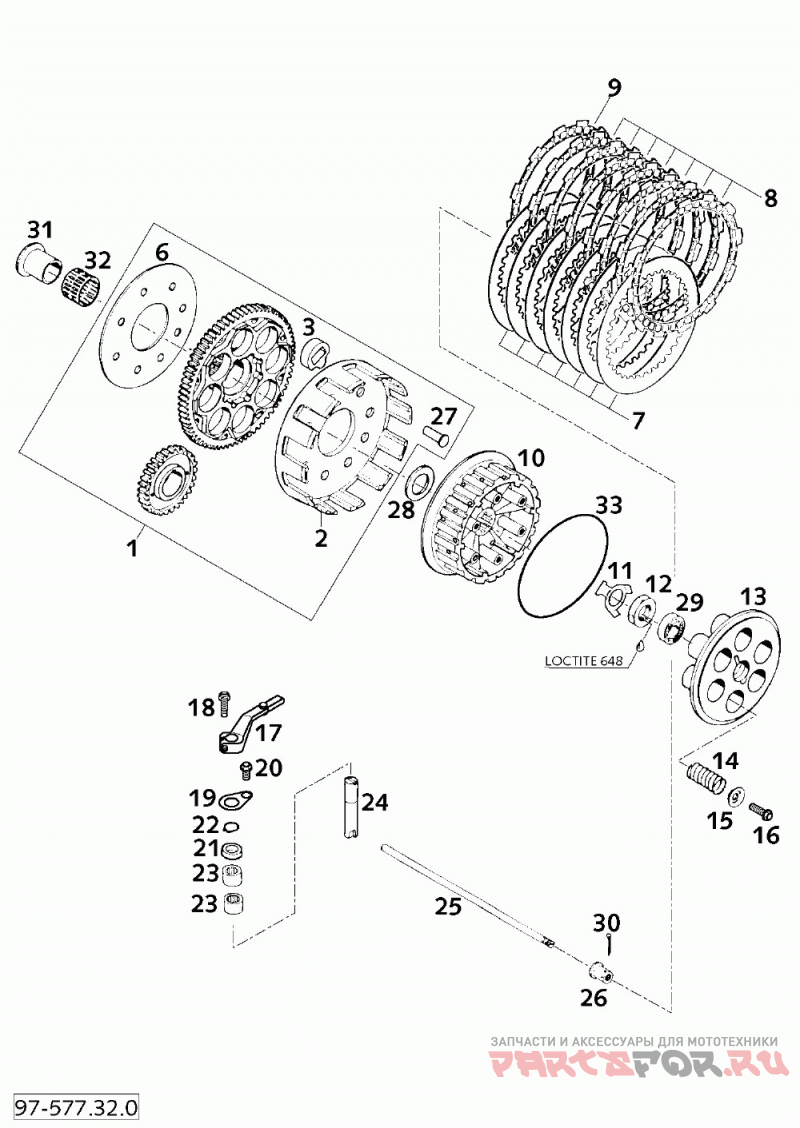

Kupplung clutch 660

KTM 660 LC4 RALLYE ENGINE

Kupplung clutch 660

#

oem код

название

цена

1

Out Clutch Hub & Wh. 81zmil 03

Out Clutch Hub & Wh. 81zmil 03

2

Outer Clutch Hub Loose Lc4 03

Outer Clutch Hub Loose Lc4 03

3

Damping Element '94

Damping Element '94

6

Bracket 57 X 132 X 1, 5 '94

Bracket 57 X 132 X 1, 5 '94

7

Steel Disk 1, 5 Mm Lc4'94

Steel Disk 1, 5 Mm Lc4'94

8

Lining Disk 2, 7mm Fcc 02

Lining Disk 2, 7mm Fcc 02

9

Lining Disk Turn Out Fcc 02

Lining Disk Turn Out Fcc 02

10

Inner Clutch Hub Lc4/lc4-e 04

Inner Clutch Hub Lc4/lc4-e 04

11

Lock Washer '94

Lock Washer '94

12

Hexagon Nut Din0936-m18x1, 5 R.

Hexagon Nut Din0936-m18x1, 5 R.

13

Pressure Cap Lc4/lc4-e '98

Pressure Cap Lc4/lc4-e '98

14

Clutchspring 3, 0x33, 5

Clutchspring 3, 0x33, 5

15

Spring Retainer 6, 2 X 20 X 3, 2

Spring Retainer 6, 2 X 20 X 3, 2

16

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

17

Clutch Release Lever Lc4-e '96

Clutch Release Lever Lc4-e '96

19

Retain.plate Clu.release Lever

Retain.plate Clu.release Lever

20

Hh Collar Screw M 6x12 Ws=8

Hh Collar Screw M 6x12 Ws=8

21

Nut Ring Nis 12x20x5, 5

Nut Ring Nis 12x20x5, 5

22

Circlip Din0471-12x1

Circlip Din0471-12x1

23

Needle Bearing Hk 1212

Needle Bearing Hk 1212

24

Disengaging Shaft 12 X 66 '93

Disengaging Shaft 12 X 66 '93

25

Push Rod 224 Mm Lc4'94

Push Rod 224 Mm Lc4'94

26

Pressure Bolt Lc4'94

Pressure Bolt Lc4'94

27

Rivet 6 X 23 X 11, 2

Rivet 6 X 23 X 11, 2

28

Supportwasher 22, 2x35x3 Harde.

Supportwasher 22, 2x35x3 Harde.

29

Groov.ball Bear. 6001.2rsr C3

Groov.ball Bear. 6001.2rsr C3

30

Pin Din0094-2, 0x16

Pin Din0094-2, 0x16

31

Inner Ring With Collar

Inner Ring With Collar

32

Needle Bearing K26x30x22zw.kse

Needle Bearing K26x30x22zw.kse

33

O-ring 116, 00x3, 00 Hnbr 70

O-ring 116, 00x3, 00 Hnbr 70

13

Pressure Cap Lc4/lc4-e 04

Pressure Cap Lc4/lc4-e 04
