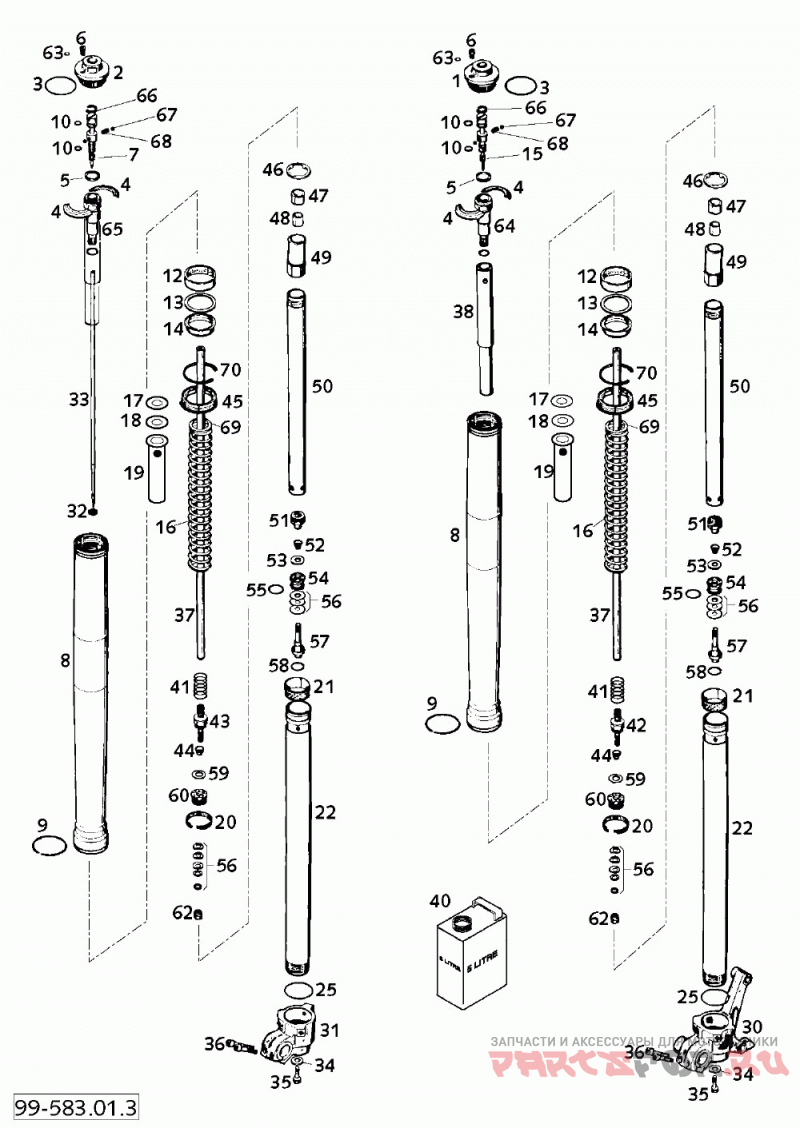

Gabelbeine top adjuster fork leg top adjuster 660

KTM 660 LC4 RALLYE CHASSIS

KTM
#oem кодцена
3
40540026
O-ring Nbr 43x3
4
40540470
Springretainer D=47mm
5
40540492
Rubber Ring 14, 1 X 22 X 4
6
40541270
Air Adjusting Screw
7
40541246
Tap Adj. Rebound
9
43570099
Guiding Ring D=53mm
10
40541257
O-ring Nbr 4x2
12
43570019
Du-bush 47 X 43 X 20
13
43570092
Support Ring 45 X 52, 5 X 1, 5
14
43570201
Oil Seal Ring 43 X 52, 9 X 9, 5
15
50600083
Tap Adj. Compression
17
40540359
Preload Spacer L=2, 5mm
18
40540040
Preload Spacer L=5mm
20
40540851
Piston Ring 5 X 1 X 62
21
43570020
Du-bush 43, 8 X 43 X 20
25
43570023
O-ring Nbr 41x2
32
40541267
O-ring Nbr 3x1
35
50600130
Hh-collar Screw M8x20 Ws=13
36
0015080303
% Hh Collar Screw M 8x30 Ws=10
41
40541346
Rebound Spring C=60n/mm
42
40541245
Piston Rod Tap Compression
43
40541244
Piston Rod Tap Rebound
44
40541278
Spring Check Valve D=0, 5mm
45
43570202
Dust Stripper 43 X 53, 4 X 11, 8
46
40540629
Springretainer 22, 1x35, 6x2
47
40540487
Bumprubber
48
40540434
Du Bush 12x14x8
50
40541239
Tube 24x1, 5x400
51
40541241
Check Valve Nut M6x0, 5
53
40540477
Shim 8x18x0, 4
54
40540445
Piston Compression Ma
55
40540437
O-ring Nbr 15, 6x1, 78
56
40540411
Shim 6x18x0, 2
56
40540449
Shim 6x9x0, 3
56
40540404
Shim 6x12x0, 15
56
40540401
Shim 6x14x0, 1
56
40540402
Shim 6x16x0, 1
56
40540403
Shim 6x18x0, 1
56
40541383
Shim 6x11x0, 1
56
40540774
Shim 6x18x0, 1 Delta
56
40540409
Shim 6x14x0, 2
56
40540415
Shim 6x18x0, 25
56
40540400
Shim 6x12x0, 1
57
40541242
Tap Compression
58
40541256
Circlip 21x1, 6
60
40541085
Piston Rebound W5
62
40540486
Nut M6x0, 5 Rebound
63
40540867
O-ring Nbr 3x2
66
40541259
Lock Washer Sb11
67
40540296
Steel Ball D=4mm
68
40540472
Spring For Adjust. Screw
