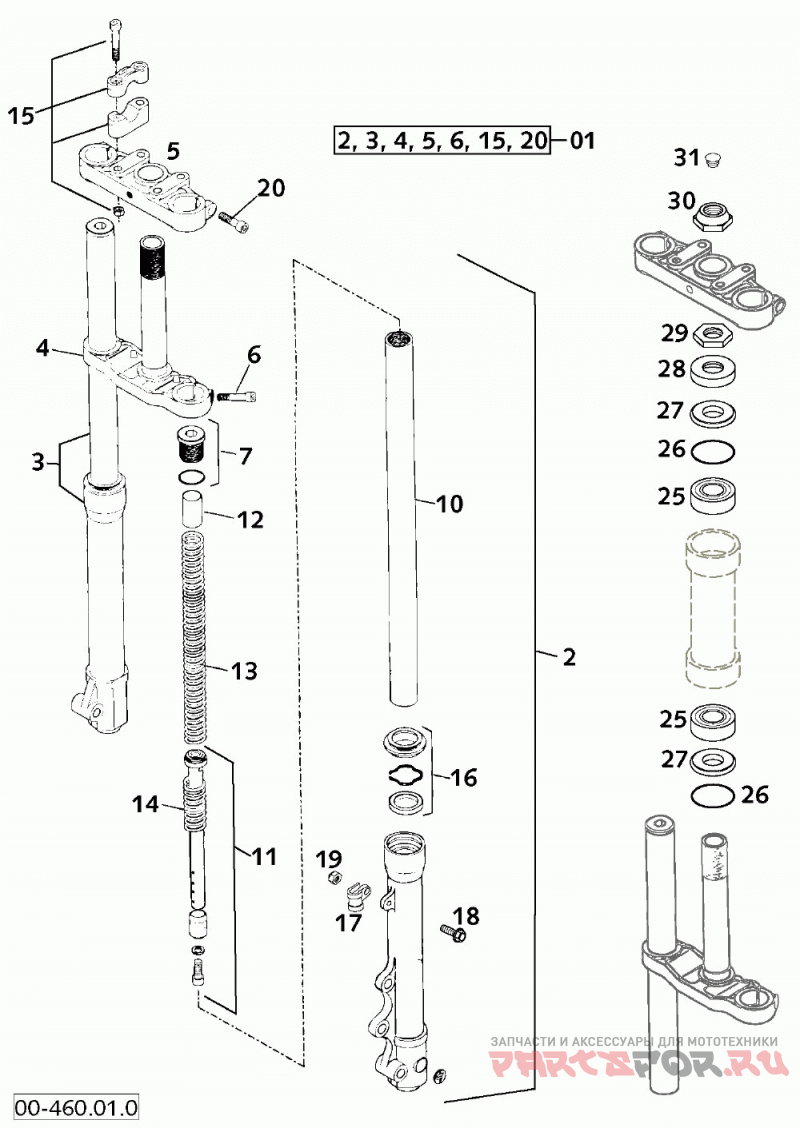

Telegabel paioli front fork paioli 60/65

KTM 60/65 SX CHASSIS

KTM
#oem кодцена
1
46001000244
Fork Cpl. D=32mm L=730 2000
2
46001001200
Fork Leg L/s Cpl. 2000
3
46001002200
Fork Leg R/s Cpl. 2000
4
46001032114
Bot.triple Clamp Cpl. X=14mm
5
46001034014
Top Triple Clamp X=14mm
6
0912080253
Ah Screw Din0912-m 8x25
7
45001008000
Screw Cap Cpl.
10
46001003000
Fork Tube D=32mm
12
46001022000
Pre Load Bush L=115mm
13
45001021000
Пружина
14
45001050000
Пружина
15
45001038044
Handlebar Clamp Cpl.
16
45001014000
Комплект сальников
17
45001070000
Brake Cable Clamp Rsgu 9/12
18
0015050163
Hh Collar Screw M 5x16 Ws=8
19
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
20
0912080303
Ah Screw Din0912-m 8x30
25
49001081000
Tapered Roller Bearing 32004x
26
0770360030
O-ring 36, 00x3, 00 Nbr
27
46001086000
Protection Ring 20, 1x39x5
28
49001086000
Covering Cap
29
46001043000
Steering Head Nut M20x1, 5
30
46001042000
Cone Nut M20x1, 5
31
55009086000
Plug Sfl13
