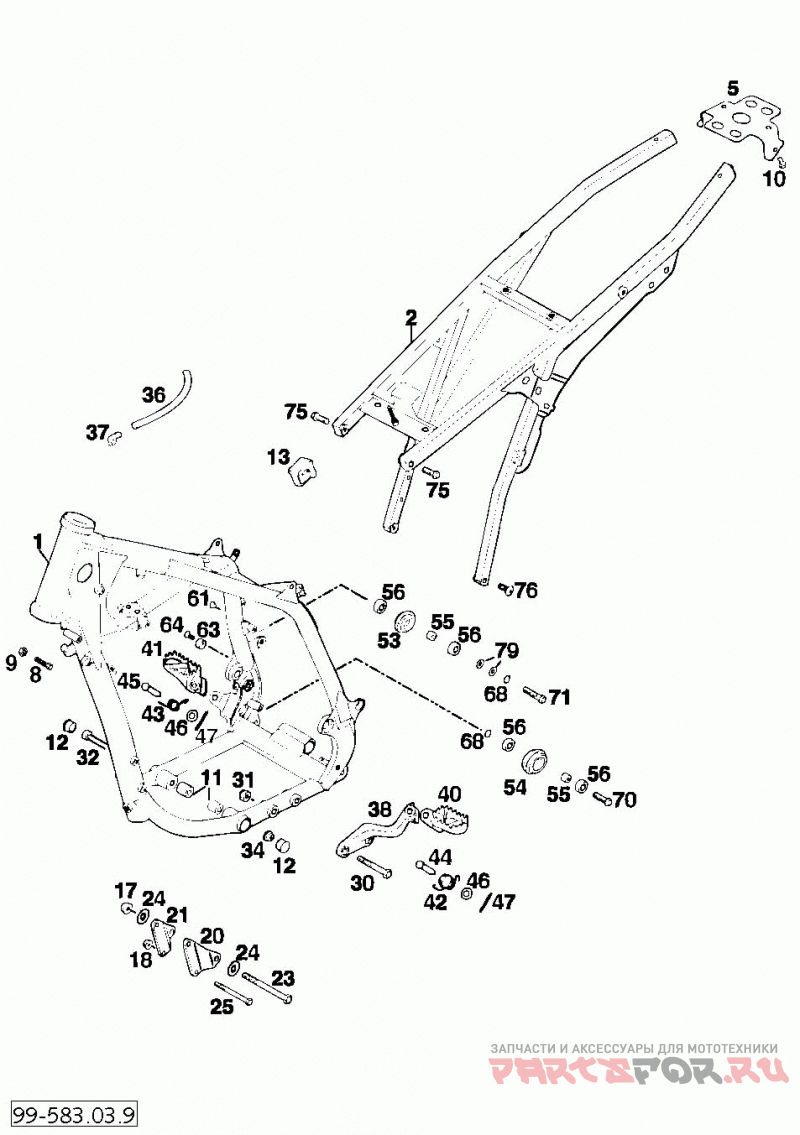

Rahmen, ausleger frame, sub frame 400

KTM 400 SXC USA CHASSIS

KTM
#oem кодцена
2
58303102444
Subframe Cpl. Alu Etl
5
58303002045
Bushing Exc-numberplatecarrier
8
59001037000
Special Screw M8x26 Ws=10
9
0934080003
Hexagon Nut Din0934-m 8
10
0015060123
Hh Collar Screw M 6x12 Ws=8
11
58003012000
Spacer Roller 10, 3x20x22
12
71001012100
Pvc Cap D=22mm
13
58307015000
Tank Support '93
17
49009082000
Self Locking Nut M10 Fk8
18
54310086200
Self Locking Nut M8 10.9
20
58003055500
Engine Support L/s Steel '90
21
58003155500
Engine Support R/s Steel '90
23
0931101203
Hh Screw Din0931-m10x120
24
31004001100
Washer 10, 5 X 21 X 3
25
0931080803
Hh Screw Din0931-m 8x80
30
0931100603
Hh Screw Din0931-m10x60
31
0985100003
Self Locking Nut Din0985-m10
32
0912101603
Ah Screw Din0912-m10x160
34
54630044000
Collar Nut M10 Ws=13
37
50303089000
Angle Piece '97
38
5830303800090
Footrest Bracket L/s Silver'99
40
5830304000090
Footrest L/s Silver '99
41
5460314000090
Foot Rest R/s Silver '98
42
58303041000
Footrest Spring L/s '93
43
54603041000
Footrest Spring L/s & R/s
44
58303044000
Bolt For Footrest
45
54603044000
Bolt For Footrest 9, 8 X 50
46
0125100003
Washer Din0125-a10, 5
47
0094032253
Pin Din0094-3, 2x25 Steel
53
52303053000
Chain Roll D=30mm 125-380 '99
54
52303053100
Chain Roll D=35mm 125-380 '99
55
74003021000
Bushing 8.2 X 12 X 6
56
0625006087
Grooved Ball Bear. 608 2rs C3
61
54403135000
Plastic Cap Sfl10
63
58303063000
Brake Lever Stop '93
64
0991060202
Flat Head Din7991-m 6x20
68
36003014000
Стопорная шайба 8 мм
70
0025080306
Hh Collar Screw M8x30 Tx40
71
0015080403
Hh Collar Screw M 8x40 Ws=10
75
0025080256
Винт M8x25 Tx40
76
54510052100
Sprocket Screw-ah M8x26 Ws=6
78
0797080003
Toothlock Washer Din6797-j 8, 4
79
0125080003
Washer Din0125-a 8, 4
