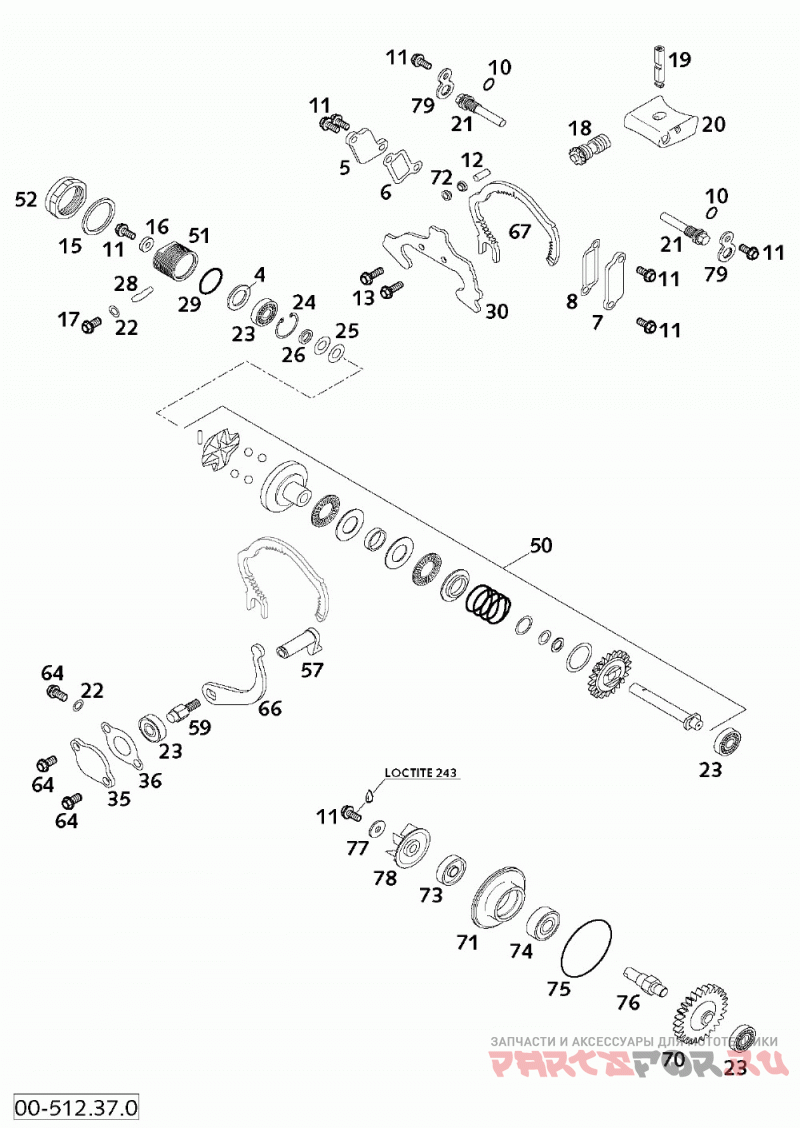

Auslassteuerung twin valve control 125

KTM 125 EXE, SUPER MOTO ENGINE

KTM
#oem кодцена
4
49033031015
Stop Disk 14, 2x22x1, 5
5
50337005000
Side Cover R/s '98
6
50337006000
Gasket Side Cover R/s
7
50330022000
Angle Piec 90 Degree M10x1 02
8
50337008000
Gasket Side Cover L/s
10
0770008020
O-ring 8, 00x2, 00 Nbr
11
0015050123
Hh Collar Screw M 5x12 Ws=8
12
0402051600
Needle Rol. Din5402 Nrb 5x15, 8
13
0015050163
Hh Collar Screw M 5x16 Ws=8
15
0603262322
Cu-seal Ring Din7603-26x32x2
16
50337050064
Washer 5, 2 X 12 X 3
17
0015060103
Hh Collar Screw M 6x10 Ws=8
18
50337018044
Eccentric For Crankbolt 125'98
19
50337019000
Crank Bolt F.control Fl.125'98
20
50337020000
Control Flap 125'98
21
51237021000
Axle For Contril Flap 01
22
0603061001
Cu-seal Ring Din7603-6x10x1
23
0625006087
Grooved Ball Bear. 608 2rs C3
24
0472022100
Circlip Din0472-22x1
25
0093821606
Washer Din2093-8, 2x16x0, 6
26
50337050063
Spacer Bushing 8x12x2, 3
29
0770160030
O-ring 16, 00x3, 00 Nbr 70
30
50337030000
Sheet Metal Guide 3mm 125'98
35
50337035000
Closing Cover '98
36
50337035050
Closing Cover Gasket 1mm
51
50337050062
Bushing Holder M 26x1 '98
52
50337050061
Closing Nut M 26x1 Ws=30
57
50337057000
Control Lever 125/200'98
59
50337059000
Control Shaft M 6 Ws=10 '98
64
59009062013
Special Screw M6x13 Ws=8 10.9
66
50337066000
Lever F. Control Segment '98
67
50337067000
Control Shaft Segment 125'98
70
50335054026
Drive Wheel 26-t 125/200'98
71
50335056000
Bushing Support Water Pump '98
72
50337072000
Roller Guide 5x6, 1x8x4 '98
73
0760082472
Shaft Seal Ring 8x24x7 A Duo
74
0625060001
Ball Bearing 6000/c3
75
0770049025
O-ring 49, 00x2, 50 Nbr
76
50335054150
Вал Водяного Насоса
77
0349000050
Washer Din7349-5x15x2
78
54635005000
Water Pump Wheel
79
50337079000
Lock Metal Sheet 2mm '98
