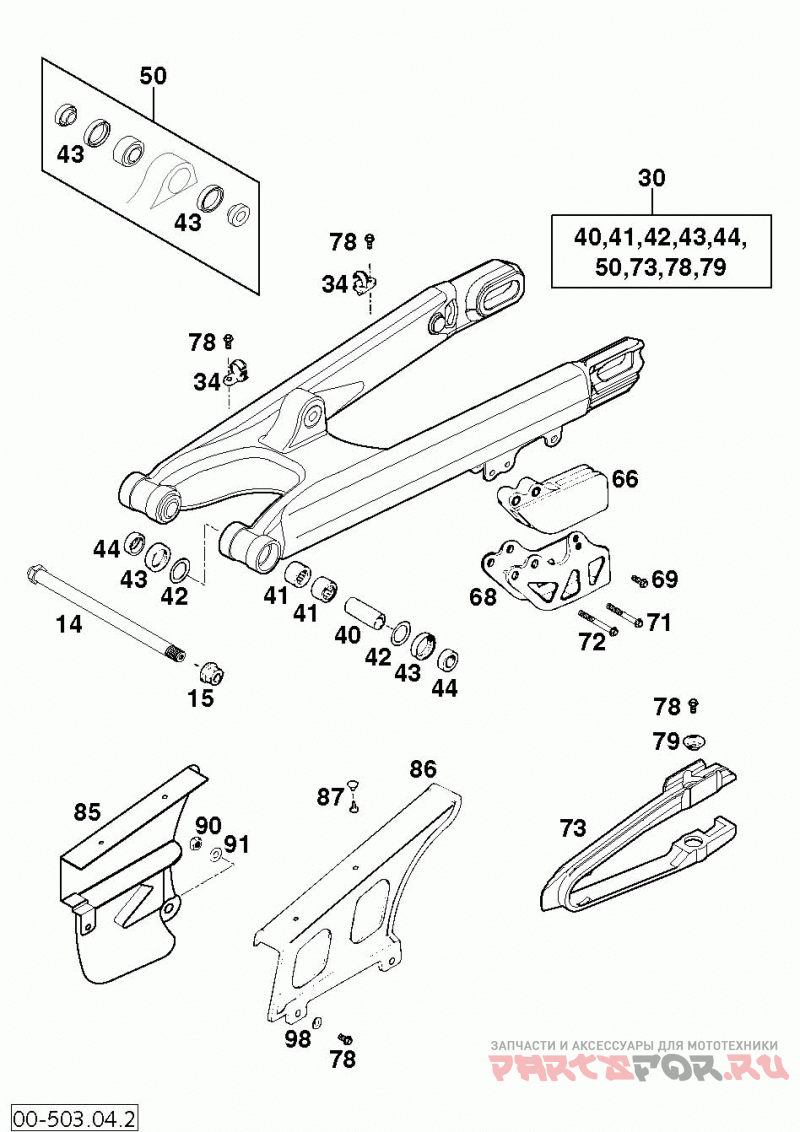

Schwingarm, kettenschutz swingarm, chain guard 125-380

KTM 125/200 SX MXC EXC CHASSIS

KTM
#oem кодцена
14
50303014000
Swingarm Bolt 14x252 Ws=22
15
54603015000
Self Locking Nut M14x1, 5 Ws=19
30
50304030344
Swingarm Cpl.125/250 Sxs 2000
34
54611076100
Retain.clamp For Brake Hose'96
40
54603081000
Bushing Sleeve 15 X 20 X 48
41
54603097000
Needle Bush Hk 2016
42
54603036000
Stop Disk 22, 2x31, 7x1
43
0760253270
Shaft Seal Ring 25x32x7
44
54603090000
Bucket F.shaftsealring 15x25x9
50
50304090044
Pivot Bearing+bushes Pds '99
66
54607066100
Chain Guide Rear '94
68
54607070144
Retaining Plate Cpl.
69
0015060163
Hh Collar Screw M 6x16 Ws=8
72
0015060553
Hh Collar Screw M 6x55 Ws=8
73
50304066100
Chain Guard 05
78
0009050103
Special Screw M 5, 0x10
79
72210079000
Bucket
85
50304060100
Chain Guard Small Exc 2000
86
54607460000
Chain Guard Large Egs
87
20012062055
Hollow Rivet Two Parts
90
0985060003
Self Lock. Nut Din0985-m 6
91
0021060003
Washer Din9021-a 6, 4
98
0021050003
Washer Din9021-a 5, 3
