  5. 125/200 SX MXC EXC CHASSIS

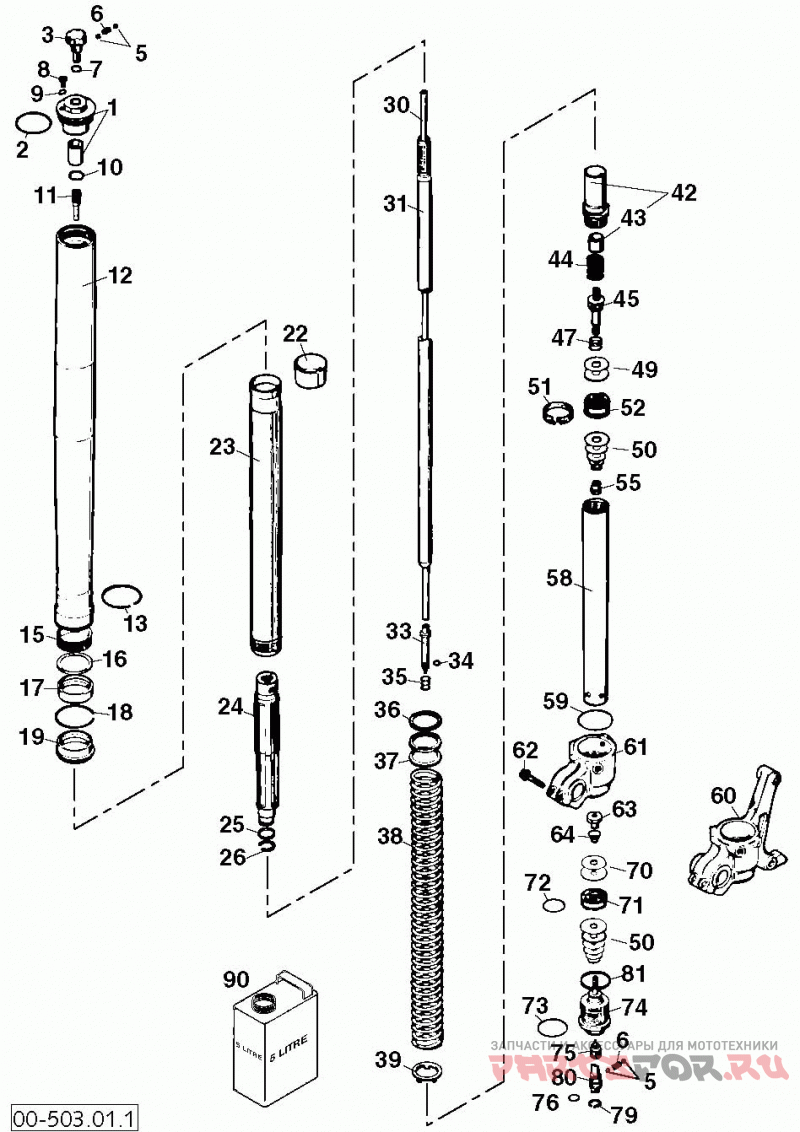

Gabelbeine wp usd 43 fork legs wp usd 43 125-380

KTM 125/200 SX MXC EXC CHASSIS

KTM
#oem кодцена
1
48600020S1
Screw Cap M51x1, 5 Cpl.
2
46810016
O-ring Nbr 48x2
3
48600018
Knob Reboung Adjuster
5
40540603
Steel Ball D=3mm
6
48600028
Spring D=2, 9 L=7, 9
7
48600044
O-ring Nbr 6x1, 5
8
48600058
Vent Screw M4x6
9
48600009
O-ring Nbr 3, 7x1, 6
10
48600043
O-ring Nbr 12x1, 5
11
48600019
Holder F.adjustment Tube D=4mm
12
43570125
Outer Tube L=577mm D=54/57mm
13
43570099
Guiding Ring D=53mm
15
43570019
Du-bush 47 X 43 X 20
16
43570092
Support Ring 45 X 52, 5 X 1, 5
17
43570201
Oil Seal Ring 43 X 52, 9 X 9, 5
18
43570008
Lock Washer Sb53
19
43570202
Dust Stripper 43 X 53, 4 X 11, 8
22
43570020
Du-bush 43, 8 X 43 X 20
44
48600015
Rebound Spring D=14, 6mm L=22mm
45
48600025
Tap Rebound
47
48600059
Spring Check Valve D=0, 25
49
48600062
Check Valve 8x24x0, 1
50
40540400
Shim 6x12x0, 1
50
40540401
Shim 6x14x0, 1
50
40540402
Shim 6x16x0, 1
50
40540403
Shim 6x18x0, 1
50
40540404
Shim 6x12x0, 15
50
40540405
Shim 6x14x0, 15
50
40540406
Shim 6x16x0, 15
50
40540407
Shim 6x18x0, 15
50
40540411
Shim 6x18x0, 2
50
40540414
Shim 6x16x0, 25
50
40540447
Shim 6x10x0, 3
50
40541383
Shim 6x11x0, 1
50
40541391
Shim 6x11x0, 3
50
48600063
Shim 6x24x0, 1
50
48600064
Shim 6x22x0, 1
50
48600065
Shim 6x20x0, 1
50
48600116
Shim 6x24x0, 1 Delta
50
48600139
Shim 6x22x0, 1 Delta
51
48600060
Piston Ring 5x1x84
52
48600042
Piston Rebound D=27, 7
55
40540486
Nut M6x0, 5 Rebound
58
48600022
Tube 29, 3x1x390
59
43570023
O-ring Nbr 41x2
60
43570123S
Axle Clamp R/s Cpl. Usd 43 04
61
43570124
Axle Clamp L/s 260mm M8 2000
62
0015080303
% Hh Collar Screw M 8x30 Ws=10
63
40541241
Check Valve Nut M6x0, 5
64
40541278
Spring Check Valve D=0, 5mm
70
48600061
Check Valve 8x24x0, 4
71
48600047
Piston Compression D=27, 9
72
46811499
O-ring Nbr 21x2
73
35480320
O-ring Nbr 24x2
74
48600586S
Tap Compression Cpl. 07
75
48600035
Needle Compression M10x1
76
48600049
O-ring Nbr 8x2
79
48600051
Lock Washer Rb12
80
48600034
Compression Adj. Screw
81
48600004
Copper Washer 29, 5x33, 5x1
