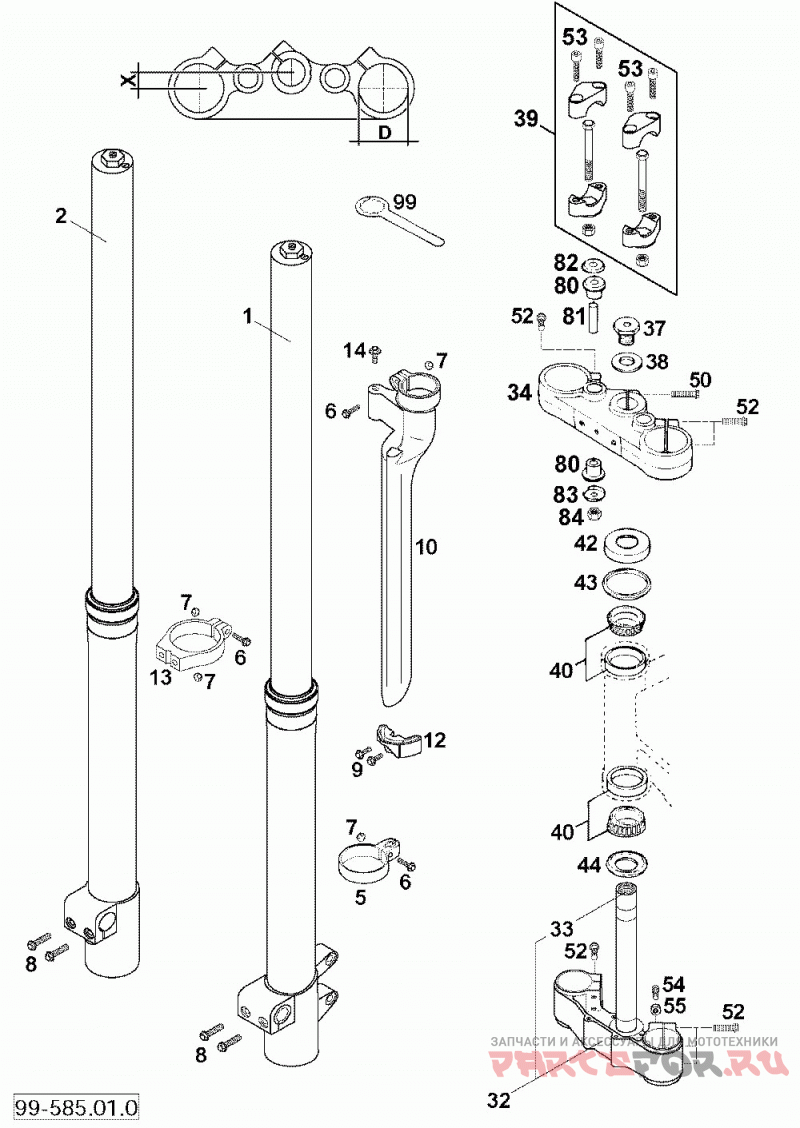

Telegabel wp extreme front fork wp extreme 660 99

KTM 660 RALLYE LC4 CHASSIS

KTM
#oem кодцена
5
50301070000
Sp.cable Guide Marz.50, Wp50'97
6
0015050203
Hh Collar Screw M 5x20 Ws=8
7
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
8
0025080256
Винт M8x25 Tx40
9
0015050163
Hh Collar Screw M 5x16 Ws=8
10
50301092000
Fork Protector L/s Black '97
12
5460129000030
Fork Protection Guide L/s '97
13
50301090250
Clamp Protector Guide '98
14
0014060153
Hh Collar Screw M 6x15 Ws=8
32
50301032016
Bot.triple Clamp X=16mm/d=50mm
33
54801033200
Fork Tube L=244 Exc
34
58301234016
Top Triple Clamp X=16mm/d=50mm
37
56401043000
Hh Screw M20x1, 5
38
56401044000
Washer 21x38x3
39
58402001050
Supportkit F.handl.duke, Adv'97
40
54201081100
Tapered Roller Bearing Cpl. 06
42
54201086000
Steering Head Cover
43
54601184000
Stearing Head Gasket Top
44
54601084200
% O-ring Support W. Sealinglip
50
0015080403
Hh Collar Screw M 8x40 Ws=10
52
0025080306
Hh Collar Screw M8x30 Tx40
53
0912080353
Ah Screw Din0912-m 8x35
54
0933080253
Hh Screw Din0933-m 8x25
55
0934080003
Hexagon Nut Din0934-m 8
80
56401040000
Резиновая Втулка
81
56401041100
Spacer Tube 10, 2x12x44
82
56401042000
Washer 10, 5x32x2
83
56401142000
Washer 10, 5x31
84
0985100003
Self Locking Nut Din0985-m10
99
54212035000
Ring Wrench Ws=32
44
54601084100
O-ring Support W. Sealing Lip
