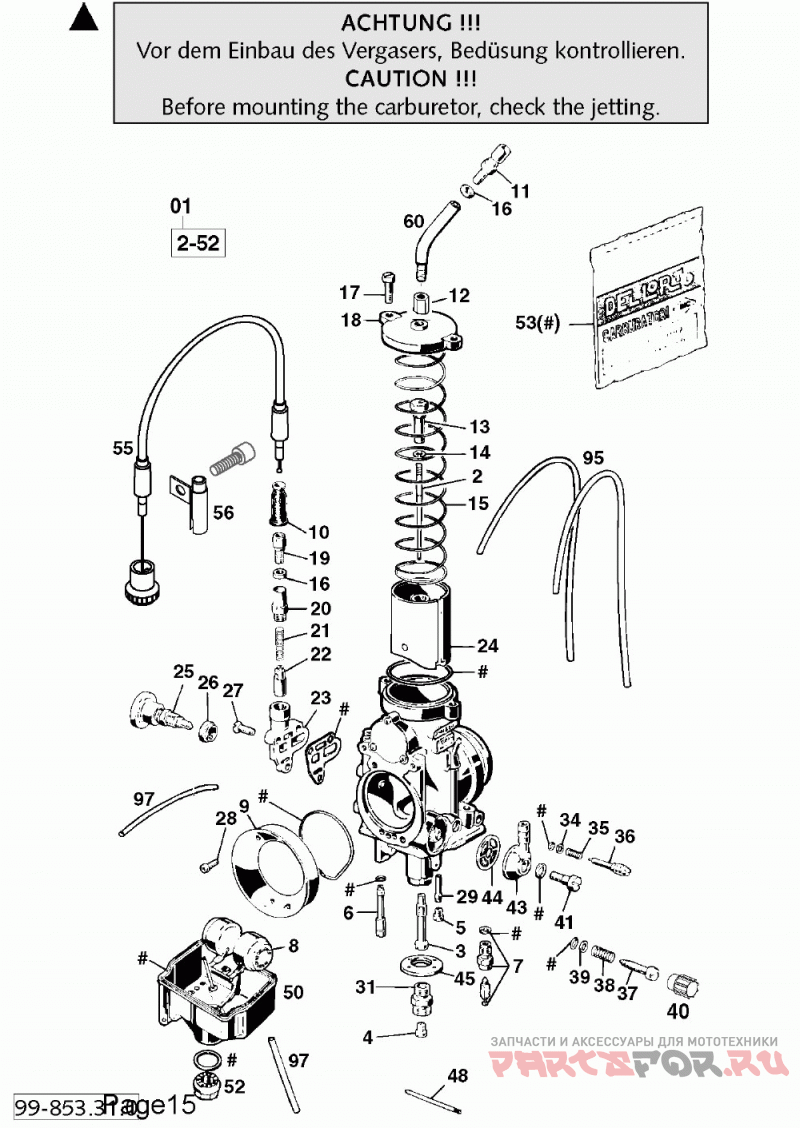

Vergaser phm 41 sd carburator 41 sd 660 99

KTM 660 LC4 RALLYE ENGINE

Vergaser phm 41 sd carburator 41 sd 660 99

#

oem код

название

цена

2

Jet Needle K51

Jet Needle K51

3

Needle Jet Dr 272

Needle Jet Dr 272

3

Needle Jet Dr 270

Needle Jet Dr 270

3

Needle Jet Dr 268

Needle Jet Dr 268

3

Needle Jet Dr 266

Needle Jet Dr 266

4

Main Jet 200

Main Jet 200

4

Main Jet 195

Main Jet 195

4

Main Jet 192

Main Jet 192

4

Main Jet 190

Main Jet 190

4

Main Jet 188

Main Jet 188

4

Main Jet 185

Main Jet 185

4

Main Jet 182

Main Jet 182

4

Main Jet 180

Main Jet 180

4

Main Jet 178

Main Jet 178

4

Main Jet 175

Main Jet 175

4

Main Jet 170

Main Jet 170

4

Main Jet 168

Main Jet 168

4

Main Jet 165

Main Jet 165

4

Main Jet 162

Main Jet 162

4

Main Jet 160

Main Jet 160

4

Main Jet 155

Main Jet 155

4

Main Jet 150

Main Jet 150

5

Jet 38

Jet 38

5

Jet 40

Jet 40

5

Jet 45

Jet 45

5

Jet 48

Jet 48

5

Jet 50

Jet 50

5

Jet 52

Jet 52

6

Starting Jet 45

Starting Jet 45

7

Needle Valve 300

Needle Valve 300

8

Float 8, 5 Gramme

Float 8, 5 Gramme

8

Float 6, 5 Gramme

Float 6, 5 Gramme

9

Intake Trumpet 40 620lc4/duke

Intake Trumpet 40 620lc4/duke

10

Rubber Sleeve

Rubber Sleeve

11

Adjustment Screw M6x0, 75

Adjustment Screw M6x0, 75

12

Support Bushing M6x0, 75 Ws=10

Support Bushing M6x0, 75 Ws=10

13

Nipple For Throttle Valve

Nipple For Throttle Valve

14

Tab Washer Din6799-rs 2, 5

Tab Washer Din6799-rs 2, 5

15

Sliding Spring 1, 25x190

Sliding Spring 1, 25x190

16

Hexagon Nut M 6x0, 75 Din0439

Hexagon Nut M 6x0, 75 Din0439

17

Hexagon Nut M 5x16

Hexagon Nut M 5x16

18

Carburetor Cover Plate

Carburetor Cover Plate

19

Adjustment Screw M6x0, 75

Adjustment Screw M6x0, 75

20

Заглушка

Заглушка

21

Пружина

Пружина

22

Starting Device

Starting Device

23

Start.device Body 4s

Start.device Body 4s

24

Throttle Valve N0.40

Throttle Valve N0.40

25

Warm Start Button

Warm Start Button

26

Hexagon Nut M 9x0, 75

Hexagon Nut M 9x0, 75

27

Oval Head Screw Din0964-m 4x14

Oval Head Screw Din0964-m 4x14

28

Ah Screw Din0912-m 4x12

Ah Screw Din0912-m 4x12

29

Idle Mixing Tube Nr.1 Cd

Idle Mixing Tube Nr.1 Cd

31

Main Jet Holder

Main Jet Holder

34

Washer 3, 3 X 5, 8 X 0, 5

Washer 3, 3 X 5, 8 X 0, 5

35

Spring Air Adjust.screw

Spring Air Adjust.screw

36

Mixture Regulat.screw M7x0, 75

Mixture Regulat.screw M7x0, 75

37

Adjustment Screw M5

Adjustment Screw M5

38

Пружина

Пружина

39

Washer 5, 1 X 8 X 0, 8

Washer 5, 1 X 8 X 0, 8

40

Knurled Cap Plastic

Knurled Cap Plastic

41

Hh Screw Din0933-m 6x16

Hh Screw Din0933-m 6x16

43

Разъем Шланга

Разъем Шланга

44

Топливный Фильтр

Топливный Фильтр

45

Крышка

Крышка

48

Stud 2 X 47

Stud 2 X 47

50

Float Chamber With Run Over T.

Float Chamber With Run Over T.

52

Plug M12x1

Plug M12x1

53

Gasket Set Phm38sd/phm40sd

Gasket Set Phm38sd/phm40sd

55

Choke Cable Cpl. Sx, Sxc, Sc'97

Choke Cable Cpl. Sx, Sxc, Sc'97

56

Sleeve For Choke Cable

Sleeve For Choke Cable

60

Tube For Carburetor Cpl. '99

Tube For Carburetor Cpl. '99
