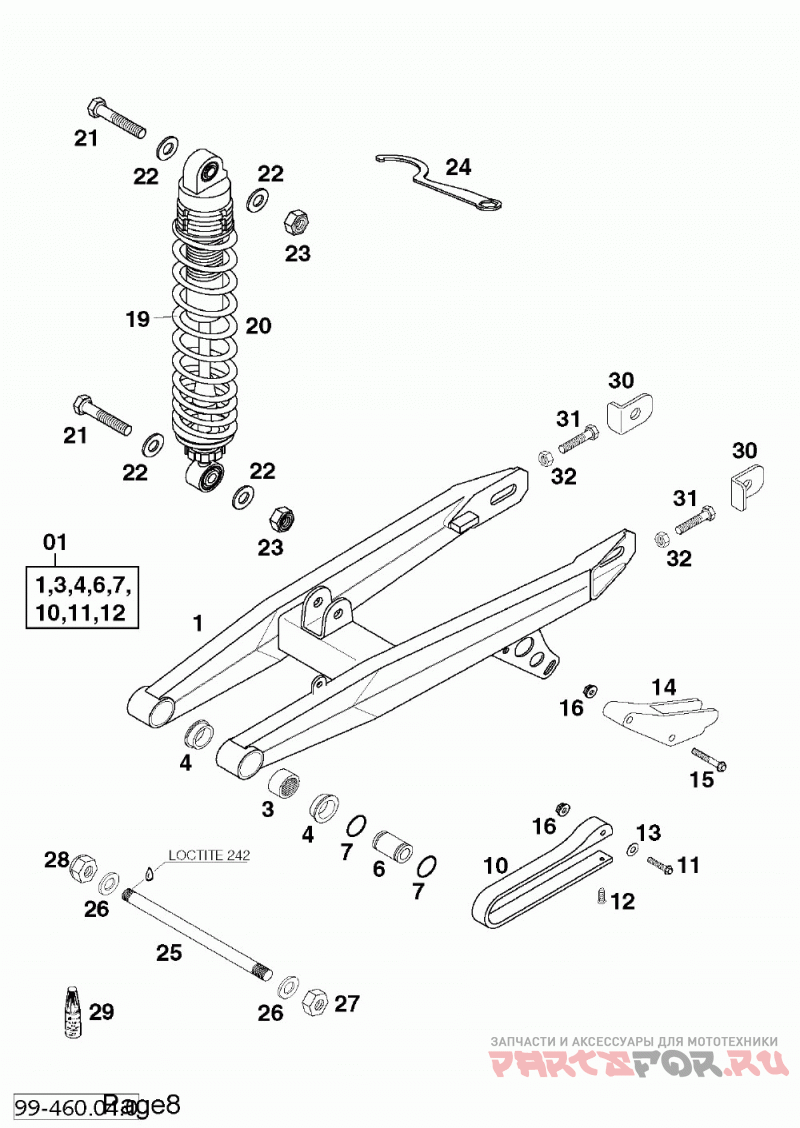

Schwingarm, federbein swingarm, shock absorber 60/65 99

KTM 60/65 SX CHASSIS

KTM
#oem кодцена
1
46004030144
Swingarm Cpl. 60/65 Ccm '99
3
54603097000
Needle Bush Hk 2016
4
46004030070
Spacer Bushing 20x26x30x9, 7
6
46004030071
Bushing Box 12x20x36, 5
7
0770160021
O-ring 16, 00x2, 00 Viton
10
46004066000
Chain Guide Front 60/65 Sx '99
11
0015060303
Hh Collar Screw M 6x30 Sw=8
12
0982550163
Sheet Met.scr.din7982- 5, 5x16
13
53002046000
Washer 6, 4x14x0, 8
14
46007066000
Chain Guide Rear 60/65 '98
15
0015060403
Hh Collar Screw M 6x40 Ws=8
16
56509064100
Self Locking Nut M6 10.9
20
46004010100
Monoshock Paioli Mc48 60/65'99
21
0931100453
Hh Screw Din0931-m10x45
22
0125100003
Washer Din0125-a10, 5
23
0985100003
Self Locking Nut Din0985-m10
24
46012024000
Hook Wrench For Shock Absorber
25
46004037000
Swingarm Bolt 201mm M12x1
26
0125120003
Flat Washer Din0125-a13
27
0934120103
Hexagon Nut Din0934-m12x1
28
0917120103
Nut Din917-m12x1
30
46010083000
Chain Adjuster 60/65 '98
31
0933060303
Hh Screw Din0933-m 6x30
32
0934060003
Hexagon Nut Din0934-m 6
15
0025060406
Hh Collar Screw M6x40 Tx30
