Neuteile lc4 usa new parts lc4 usa 640 99

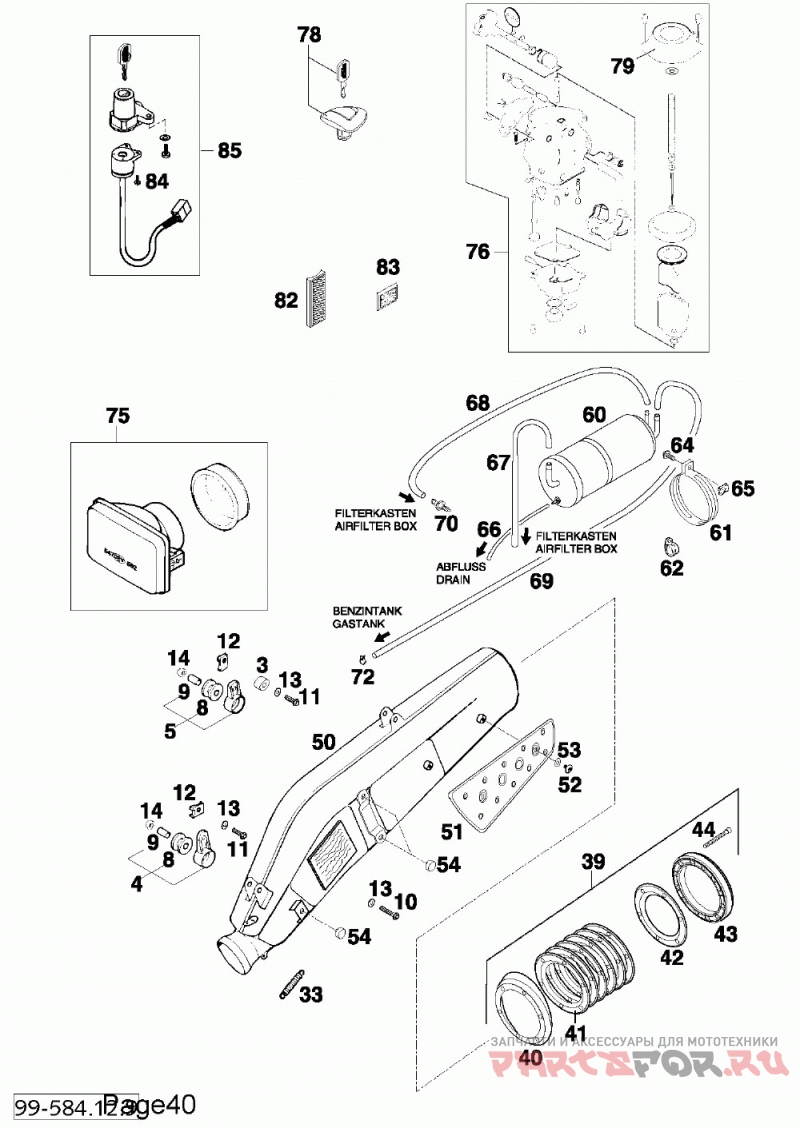

KTM 400/640 LC4/LC4 R* CHASSIS

KTM
#oem кодцена
3
50206017050
Bushing 6, 5x15x10 Alu
4
54305065244
Sil. Bracket Cpl. Long Silicon
5
54305065344
Sil. Bracket Cpl.short Silicon
8
54305068100
Damp. Component Silicone Grey
9
54305069000
Bushing 7x12x15, 4
10
0015060303
Hh Collar Screw M 6x30 Sw=8
11
0015060203
Hh Collar Screw M 6x20 Ws=8
12
54603048100
Range Change Metal Nut M6
13
0137060003
Spring Washer Din0137-b 6
14
56509064100
Self Locking Nut M6 10.9
33
50305016000
Ten.spring L=62mm Ey.moveable
39
58005079650
Spark-arrest Cpl."supertrap"
50
58305080500
Silencer "ugs" 640 Rxc '99
51
58305104000
Heat Protector Silencer Lc4'95
52
0902060080
Ah Bolt Iso7380-m 6x8
53
53002046100
Washer 6, 4x14x0, 8
54
54308042000
Rubber Buffer
60
58715001000
Evap.canister Filter Type Ak47
61
58307083000
Clamp For Filter Knecht
62
49007439200
Clamp Rsgu 12/12
64
0014060203
Hh Collar Screw M 6x20 Ws=8
70
52338061050
Hose Connection For Oiltank
72
58407017000
Clamp 008.7-505r
75
58414001300
Head Light Sae 547 Usa H4
78
58407008100
Tank Plug Lc4 Usa '99
79
57931027100
Diaphragm Cover Mikuni400mil04
82
58412080100
Reflector Yellow '99
83
16512180100
Боковой Отражатель Красный Задний
84
0985040123
Flat Head Screw Din7985-m 4x12
85
75011166000
Ignition Lock
