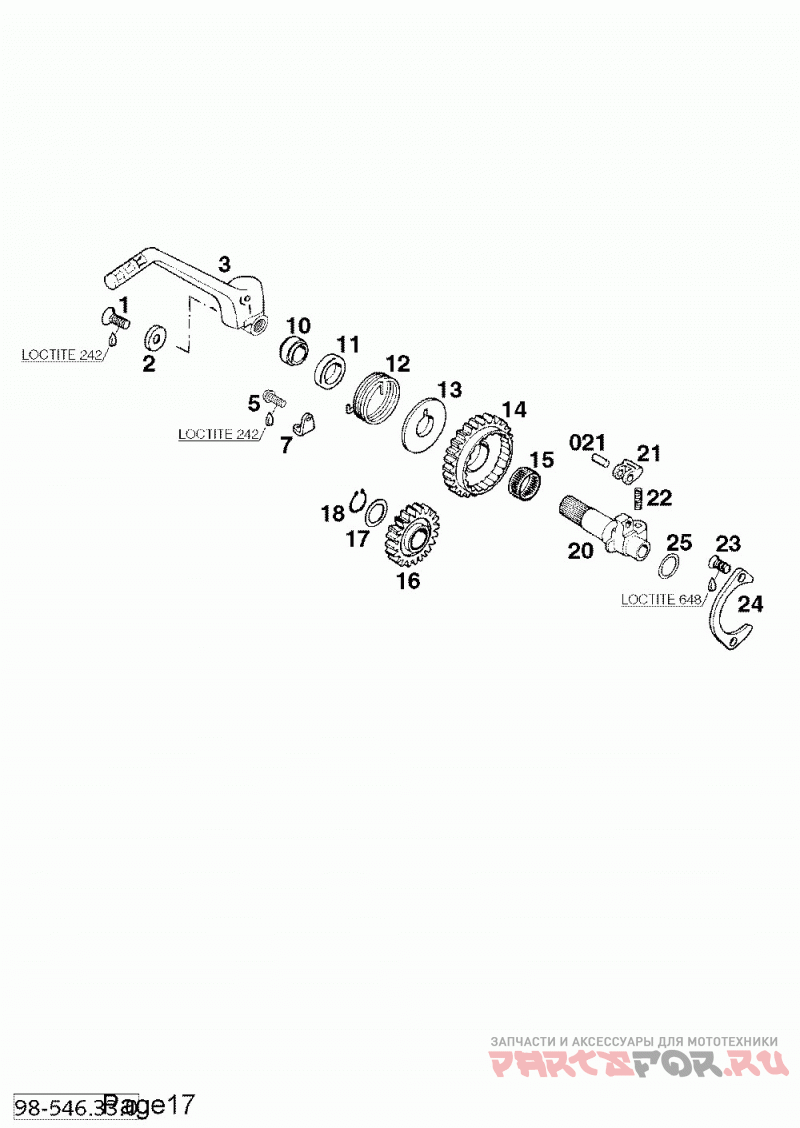

Kickstarter kickstarter 250/300/380 99

KTM 250/300 380 ENGINE

Kickstarter kickstarter 250/300/380 99

#

oem код

название

цена

1

Sprocket Screw-ah M8x20 Ws=6

Sprocket Screw-ah M8x20 Ws=6

2

Washer 8mm Galvanized

Washer 8mm Galvanized

3

Kickstarter Cpl. 250/vi '92

Kickstarter Cpl. 250/vi '92

5

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

7

Spring Hanger

Spring Hanger

10

Spacer Bushing Zinc Plated

Spacer Bushing Zinc Plated

11

Shaft Seal Ring 19x30x7 B

Shaft Seal Ring 19x30x7 B

12

Пружина

Пружина

13

Driving Hub

Driving Hub

14

Kickstart.gear 34-z 250-380'99

Kickstart.gear 34-z 250-380'99

15

Игольчатый подшипник 22x26x13

Игольчатый подшипник 22x26x13

16

Kickst.intermediate Gear 24 T

Kickst.intermediate Gear 24 T

17

Stop Disk 17, 2x25x1

Stop Disk 17, 2x25x1

18

Circlip Din0471-17x1

Circlip Din0471-17x1

20

Kickstarter Shaft

Kickstarter Shaft

21

Needle Roller Din5402 6x14, 8

Needle Roller Din5402 6x14, 8

21

Locking Pawl

Locking Pawl

22

Ratchet Spring

Ratchet Spring

23

Fl.head Scr.din7991-m6x16 10.9

Fl.head Scr.din7991-m6x16 10.9

24

Release Plate 6mm '99

Release Plate 6mm '99

25

Shim Washer Din0988-17x24x0, 5

Shim Washer Din0988-17x24x0, 5
