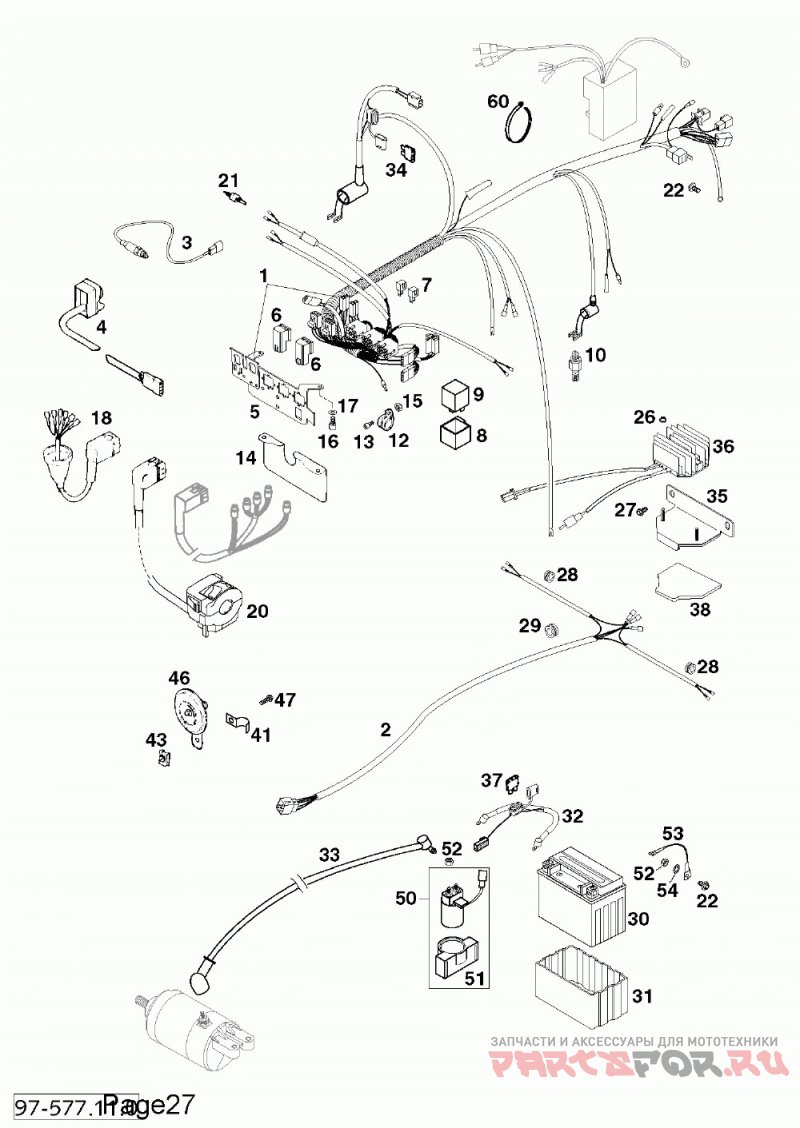

Kabelstrang wiring harness 640 98

KTM 640 LC4-E/mil

KTM
#oem кодцена
1
58411175000
Wiring Harness Lc4-e Cpl. '97
2
58411176000
Wiring Har. Rear Lc4-e/duke'97
3
58411049000
Clutch Switch '96
4
58411074000
Start-stop Switch
5
58411083000
Bracket Kpl. E-start '97
6
58411057000
Starter Relay '96
7
58411096100
Diode S3h-15 97
8
54511046000
Flasher Light Bracket
9
44611207100
Flasher Unit Hella Brk '96
10
50311051144
Brake Light Switch Rear 98
12
49007439000
Clamp Rsgu 15/12
13
0912050123
Ah Screw Din0912-m 5x12
14
58311083051
Cover Connector Support '93
15
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
16
0912060123
Ah Screw Din0912-m 6x12
17
0125060003
Washer Din0125-a 6, 4
18
58311077000
Wiring Harness-ignition Lock
21
51011050000
Front Brake Light Switch
22
0024060106
Hh Collar Screw M6x10 Tx30
26
56509064100
Self Locking Nut M6 10.9
27
0015060103
Hh Collar Screw M 6x10 Ws=8
28
57511027000
Rubber Sleeve D=6mm Open
29
31008060000
Rubber Sleeve D=8mm Open
30
58411053000
Battery 12v 8ah '96
31
58411053050
Battery Cover 96
32
58411059350
Battery Cable L= 200 Mm 03
33
58411059100
Startercable 700 Mm '97
41
50211096000
Clamp For Wiring Harness
43
54603048100
Range Change Metal Nut M6
46
50311060000
Dc Horn 12v K80/l Leb
47
0015060163
Hh Collar Screw M 6x16 Ws=8
50
58411058000
Starter Relay With Hold.rubber
51
58411058050
Hold. Rubber For Startrelay
52
0985060003
Self Lock. Nut Din0985-m 6
53
58411097100
Ground Cable D=6mm L=140mm '97
54
58411098100
Contact Washer M6 Vsv-k6
60
44011076305
Cable Tie 300/4, 8mm Black
