Tacho, drehzahlmesser speedometer,tachometer 640 98

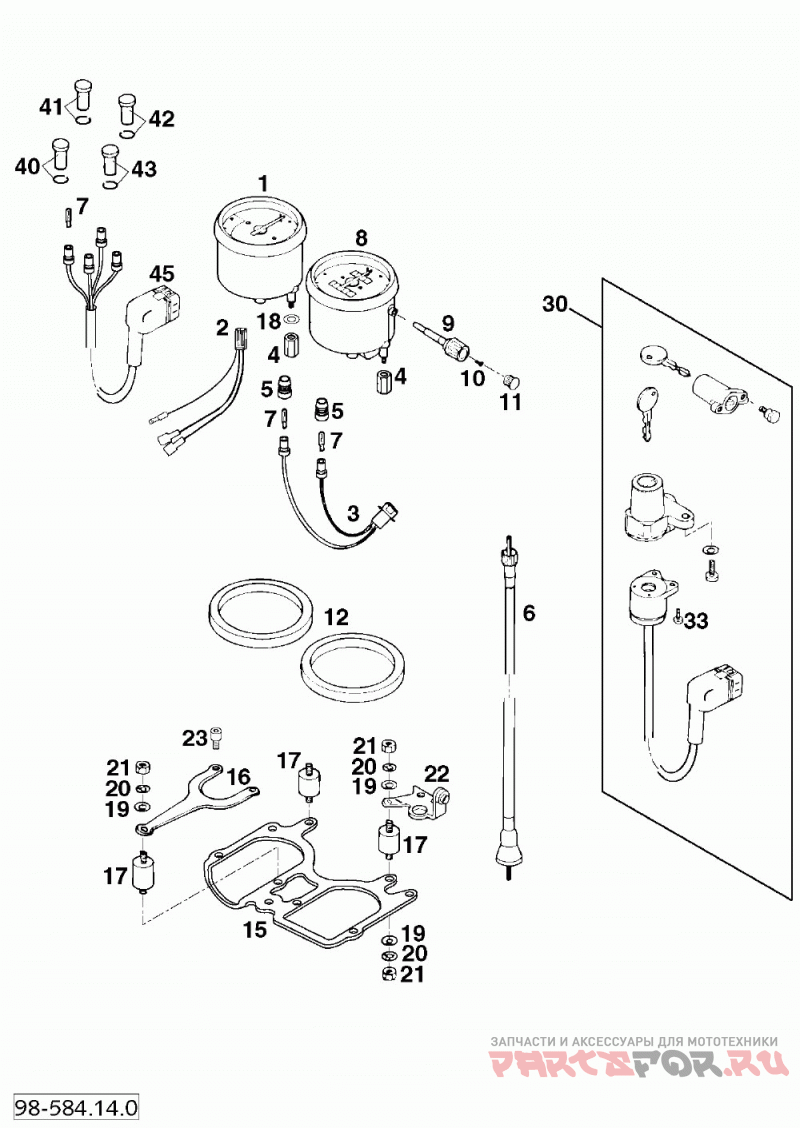

KTM 640 DUKE ELECTRIC STARTER CHASSIS

KTM
#oem кодцена
1
58311065100
Tachometer 10000 Rpm 96
2
58311065150
Cable For Tachometer '97
3
58311029100
Instrument Lights 12v
4
58311053000
Hexagon Nut M5x15 Ws=8
5
58311088100
Reduction Rubber
6
58311188000
Speedometer Cable M12/12 845mm
7
49111425000
Bulb 12v 1, 2w (w2x4, 6d)
8
58311068100
Speedometer Kmh Duke'94
8
58311068300
Speedometer Miles Duke'96
9
58311052060
Tripmeter Reset Knob
10
0984020051
Oval H.screw Din7984-m 2x 5
11
58301098100
Plastic Cap 3/8" 2617
12
58214067000
View Protection Tachom. Adv.02
15
58311051100
Instruments Bracket Duke'98
16
58311051050
Bracket For Instrument Bracket
17
54335031200
Rubber Grommet 20x25-m6x10 (2)
18
0134070003
Washer Din0134- 7, 4
19
0125060003
Washer Din0125-a 6, 4
20
0797060003
Tooth Lock Wash. Din6797-a 6, 4
21
0934060003
Hexagon Nut Din0934-m 6
22
58311021100
Flasher Support L/s Duke'94
23
0912060123
Ah Screw Din0912-m 6x12
30
58311066044
Lock Set Cpl. Duke'94
33
0985040123
Flat Head Screw Din7985-m 4x12
40
58011021300
H.beam Indicator Light Blue'98
41
58011023300
Neutral Indic. Light Green '98
42
58011022400
Temperature Warn. Light Red'98
43
58011024300
Flasher Indicat.light Green'98
45
58411078100
Indicator Light Wiring Duke'98
7
49111425200
Bulb 12v 2, 3w (w2x4, 6d)
