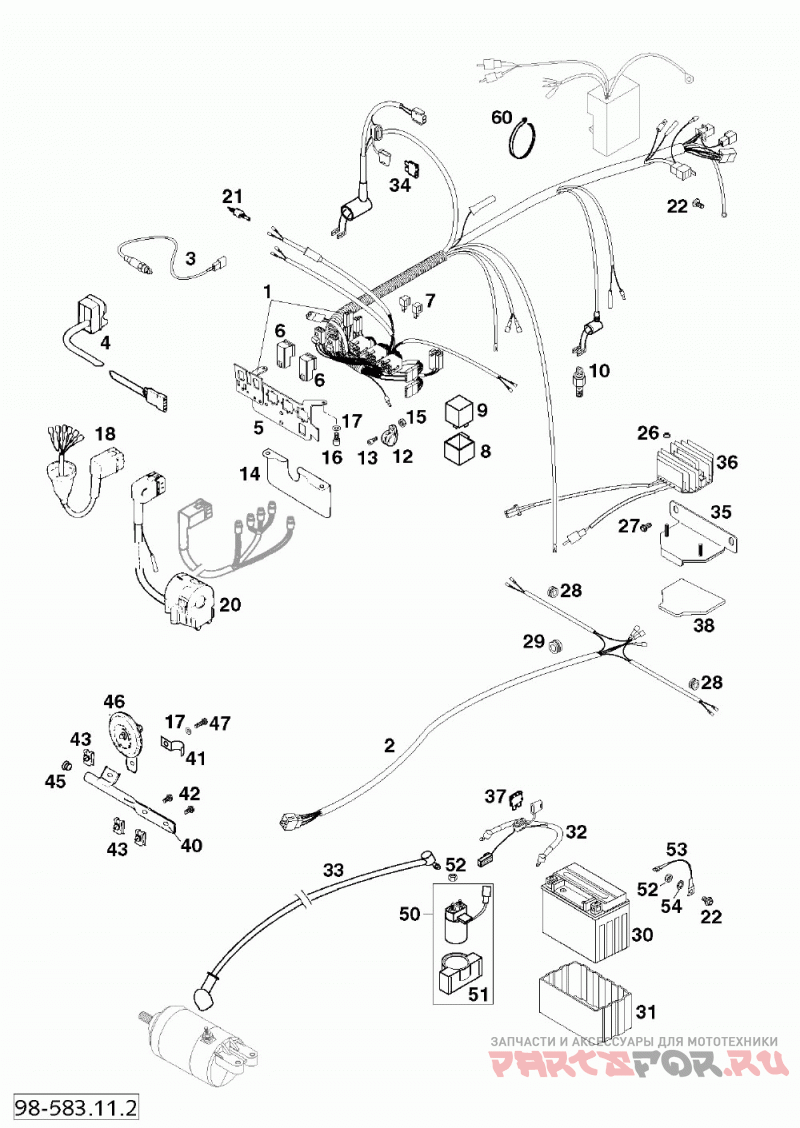

Kabelstrang wiring harness 400/620 98

KTM 400/620 R/XC e CHASSIS

KTM
#oem кодцена
1
58411175000
Wiring Harness Lc4-e Cpl. '97
2
58411176000
Wiring Har. Rear Lc4-e/duke'97
3
58411049000
Clutch Switch '96
4
58411074000
Start-stop Switch
5
58411083000
Bracket Kpl. E-start '97
6
58411057000
Starter Relay '96
7
58411096100
Diode S3h-15 97
8
54511046000
Flasher Light Bracket
9
44611207100
Flasher Unit Hella Brk '96
10
50311051144
Brake Light Switch Rear 98
12
49007439000
Clamp Rsgu 15/12
13
0912050123
Ah Screw Din0912-m 5x12
14
58311083051
Cover Connector Support '93
15
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
16
0912060123
Ah Screw Din0912-m 6x12
17
0125060003
Washer Din0125-a 6, 4
18
58311077000
Wiring Harness-ignition Lock
20
58311570000
Light Switch Kpl. Cev '94
21
51011050000
Front Brake Light Switch
22
0024060106
Hh Collar Screw M6x10 Tx30
26
56509064100
Self Locking Nut M6 10.9
27
0015060103
Hh Collar Screw M 6x10 Ws=8
28
57511027000
Rubber Sleeve D=6mm Open
29
31008060000
Rubber Sleeve D=8mm Open
30
58411053000
Battery 12v 8ah '96
31
58411053050
Battery Cover 96
32
58411059150
Battery Cable 190mm 10a '97
33
58411059100
Startercable 700 Mm '97
40
58307021000
Bracket For Horn '93
41
50211096000
Clamp For Wiring Harness
42
0015060123
Hh Collar Screw M 6x12 Ws=8
43
54603048100
Range Change Metal Nut M6
45
50210086000
Covering Cap Sfl16
46
50311060000
Dc Horn 12v K80/l Leb
47
0015060163
Hh Collar Screw M 6x16 Ws=8
50
58411058000
Starter Relay With Hold.rubber
51
58411058050
Hold. Rubber For Startrelay
52
0985060003
Self Lock. Nut Din0985-m 6
53
58411097100
Ground Cable D=6mm L=140mm '97
54
58411098100
Contact Washer M6 Vsv-k6
60
44011076305
Cable Tie 300/4, 8mm Black
