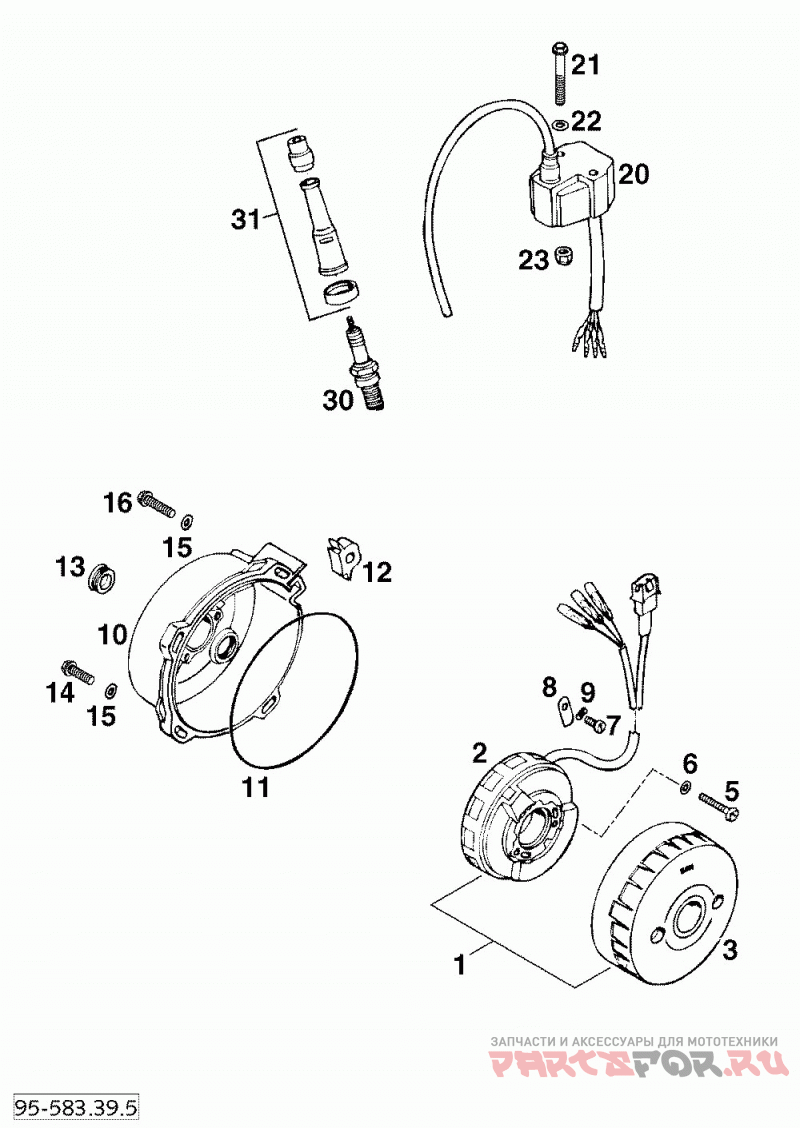

11 ignition system sem 11 400/540 98

KTM 400/540 SXC ENGINE

11 ignition system sem 11 400/540 98

#

oem код

название

цена

1

Ign. Cpl. Sem K11/60g-08 Left

Ign. Cpl. Sem K11/60g-08 Left

2

Stator Loose "13"

Stator Loose "13"

3

Rotor Loose

Rotor Loose

5

Cylinder Screw Din0084-m 5x30a

Cylinder Screw Din0084-m 5x30a

6

Шайба Din0125-в 5, 3

Шайба Din0125-в 5, 3

8

Retaining Plate

Retaining Plate

9

Spring Washer Din0137-b 5

Spring Washer Din0137-b 5

10

Ignition Cover Black

Ignition Cover Black

11

O-ring 126, 72x1, 78 B70

O-ring 126, 72x1, 78 B70

12

Rubber Sleeve

Rubber Sleeve

13

Plug M18x1, 5

Plug M18x1, 5

14

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

15

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

16

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

20

Ignition Coil Tm 14-05

Ignition Coil Tm 14-05

21

Hh Collar Screw M 6x45 Ws=8

Hh Collar Screw M 6x45 Ws=8

23

Self Lock. Nut Din0985-m 6

Self Lock. Nut Din0985-m 6

30

Spark Plug Ngk Dpr8ea-9

Spark Plug Ngk Dpr8ea-9

31

Spark Plug Connect.sd 05fg Ngk

Spark Plug Connect.sd 05fg Ngk
