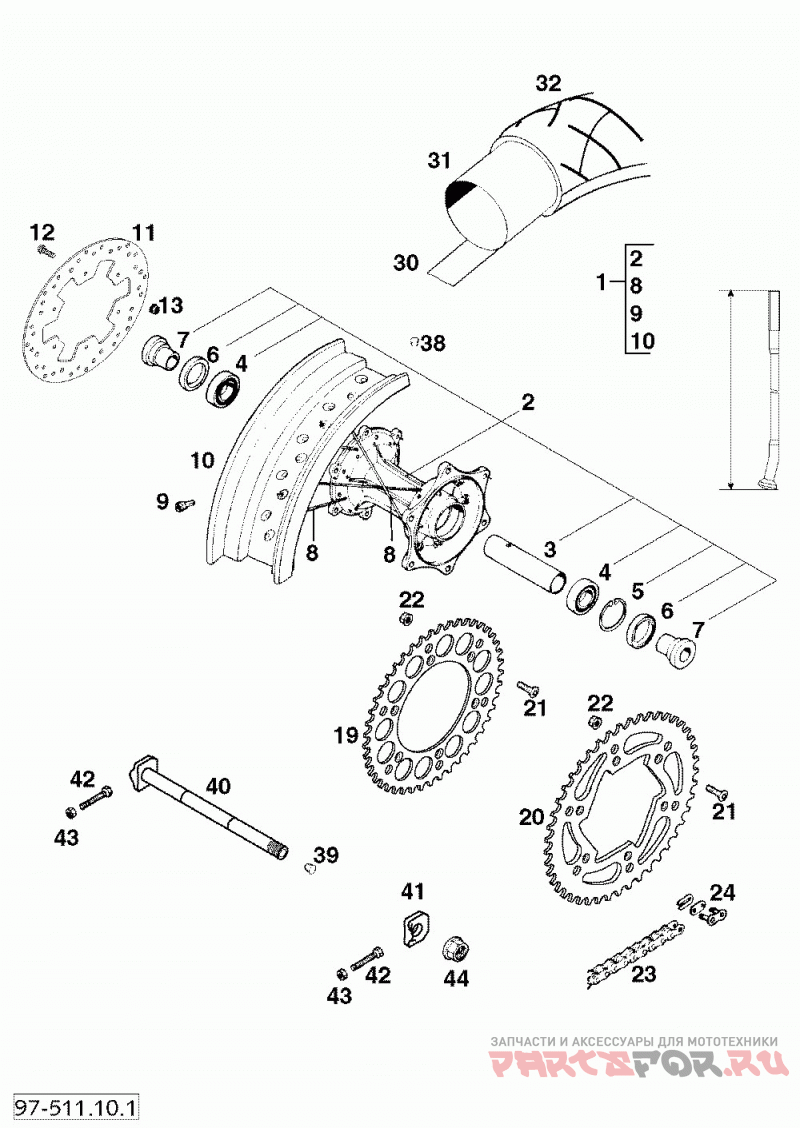

Hinterrad rear whell 125 98

KTM 125 Sting CHASSIS

KTM
#oem кодцена
2
50310010044
%rearwheel Hub Cpl.125-380 '00
3
59010011000
Bushing Spacer Tube 121, 5mm 01
4
0625060058
Gr.ball Bear.6005 Ddu2cg23s6nm
5
0472047175
Circlip Din0472-47x1, 75
6
0760324771
Shaft Seal Ring 32x47x7 Bsl
7
54610016000
Bushing For Hub
8
58309171100
Spoke M5x177-13, 5g 17"
9
58309072100
Spoke Nipple M5-ta 8x21mm
12
0015060203
Hh Collar Screw M 6x20 Ws=8
13
56509064100
Self Locking Nut M6 10.9
19
58310151040
Rear Sprocket 40-t
19
58310051042
Rear Sprocket 42-t
19
58310151045
Rear Sprocket 45-t
20
58310151048
Rear Sprocket 48-t
20
58310151050
Rear Sprocket 50-t
21
54510052100
Sprocket Screw-ah M8x26 Ws=6
22
54310086200
Self Locking Nut M8 10.9
38
55003135000
Plug For Rim
39
50210086000
Covering Cap Sfl16
40
50210085044
Wheel Spindle Rear Cpl.l=264mm
41
56510084100
Chain Tensioner '95
42
50203030090
Hh Screw M8x40 Ws=10
43
0934080003
Hexagon Nut Din0934-m 8
44
50310099000
Hexagon Nut M20x1, 5 '98
