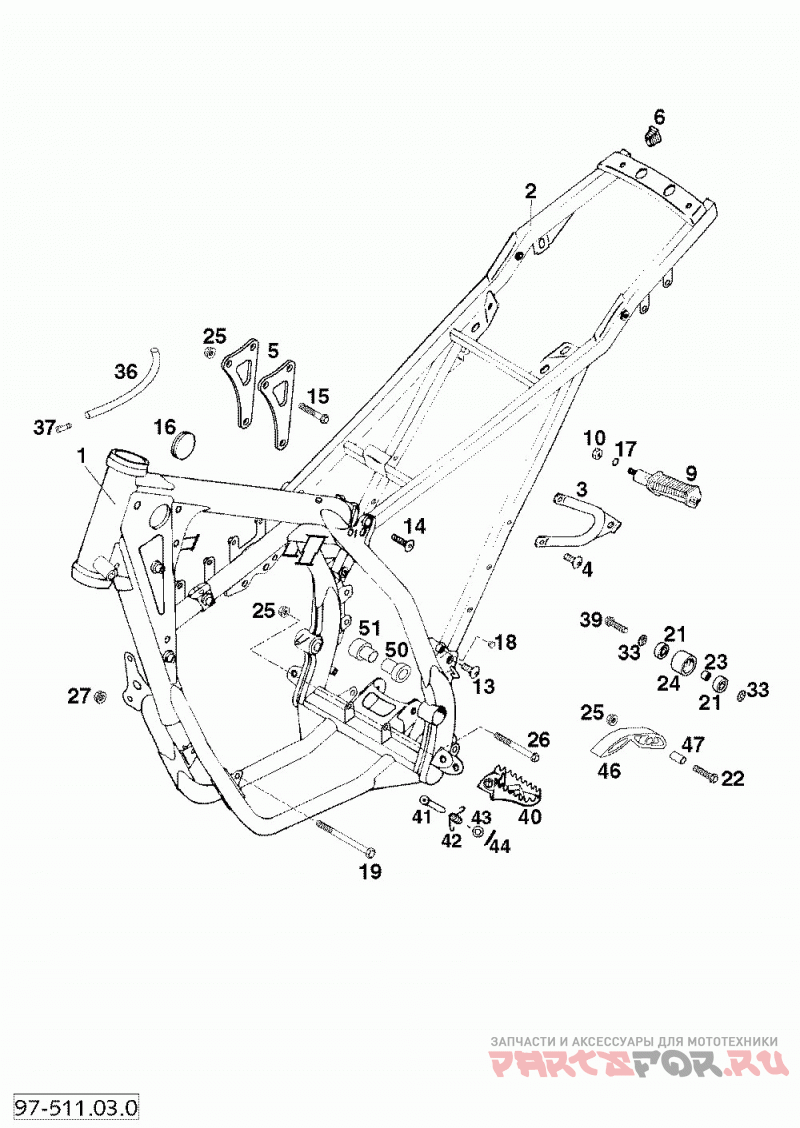

Rahmen, ausleger frame, sub frame 125 98

KTM 125 LC2 CHASSIS

KTM
#oem кодцена
2
51103002044
Subframe Steel 125 Lc2 '96
3
58303003000
Footrest Bracket Rear L/s
4
0107080203
Ah Oval H.screw Din0170-m 8x20
6
58303002090
Plug 12 X 17 Mm
9
49003250000
Footrest Rear L/s Cpl.
10
0934100003
Hexagon Nut Din0934-m10
13
54610052000
Sprocket Screw-ah M8x20 Ws=6
14
54510052100
Sprocket Screw-ah M8x26 Ws=6
15
0015080453
Hh Collar Screw M 8x45 Ws=10
16
54606004000
Plug 37mm
17
0127100003
Spring Ring Din0127-b10
18
54403135000
Plastic Cap Sfl10
19
0931101203
Hh Screw Din0931-m10x120
21
0625006087
Grooved Ball Bear. 608 2rs C3
22
0015080353
Hh Collar Screw M 8x35 Ws=10
23
74003021000
Bushing 8.2 X 12 X 6
24
50203053000
Chain Roll D=30mm
25
54310086200
Self Locking Nut M8 10.9
27
54310086100
Self Locking Nut M10 Cu Ws=14
33
36003014000
Стопорная шайба 8 мм
37
50303089000
Angle Piece '97
39
0025080306
Hh Collar Screw M8x30 Tx40
40
5460304010019
Footrest Left Anthracite 99
41
54603044000
Bolt For Footrest 9, 8 X 50
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
46
51103053000
Chain Sliding Piece Below '97
47
51103053051
Bushing 8, 2x10x20
